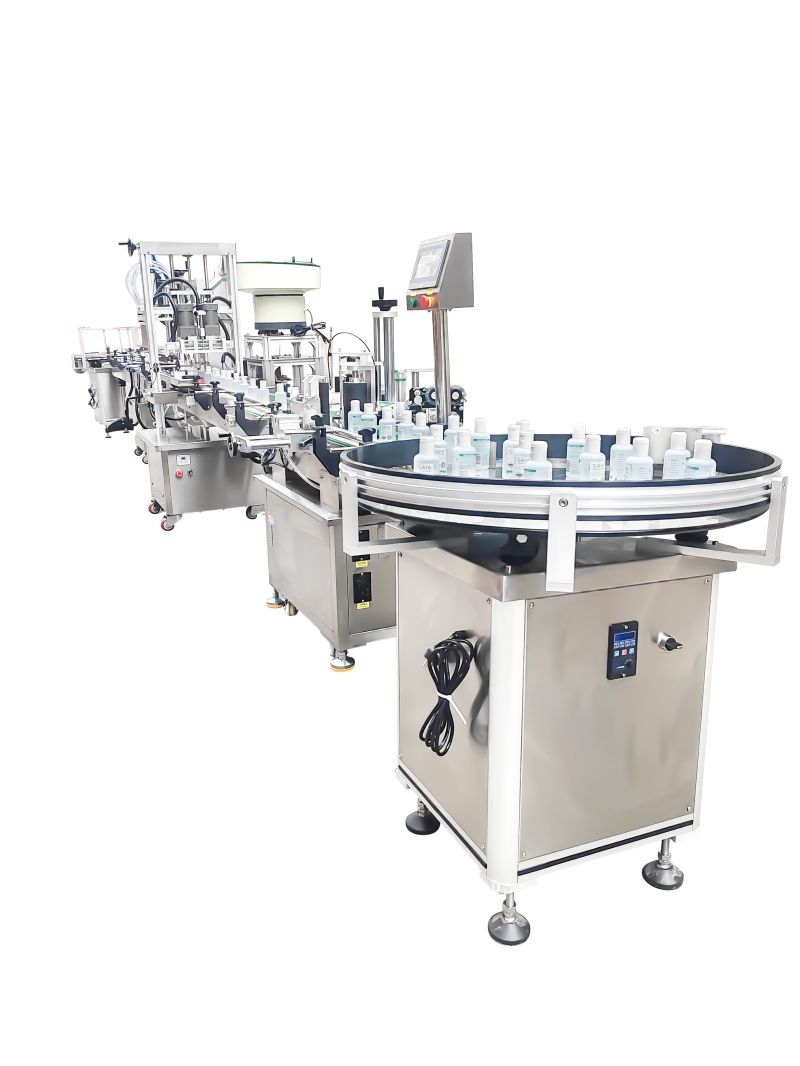

Device details
Support sample-based customization. Please contact customer service

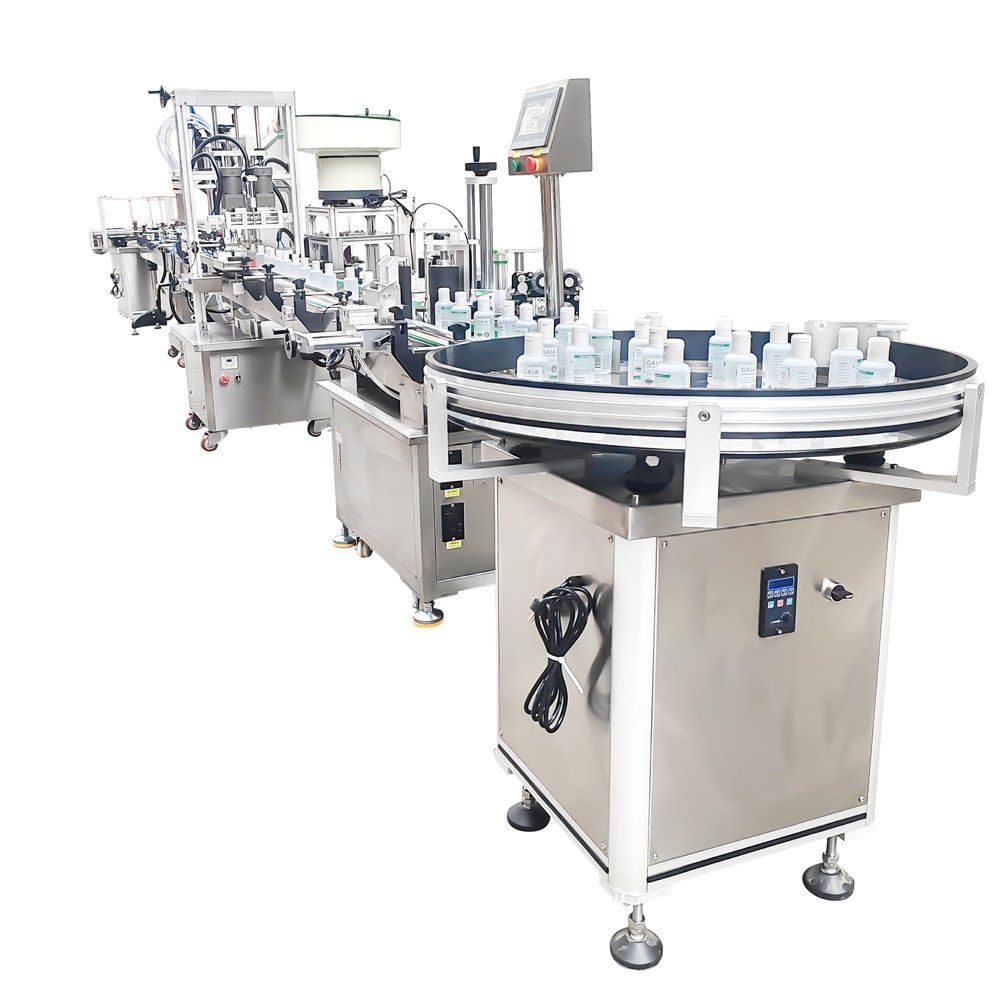

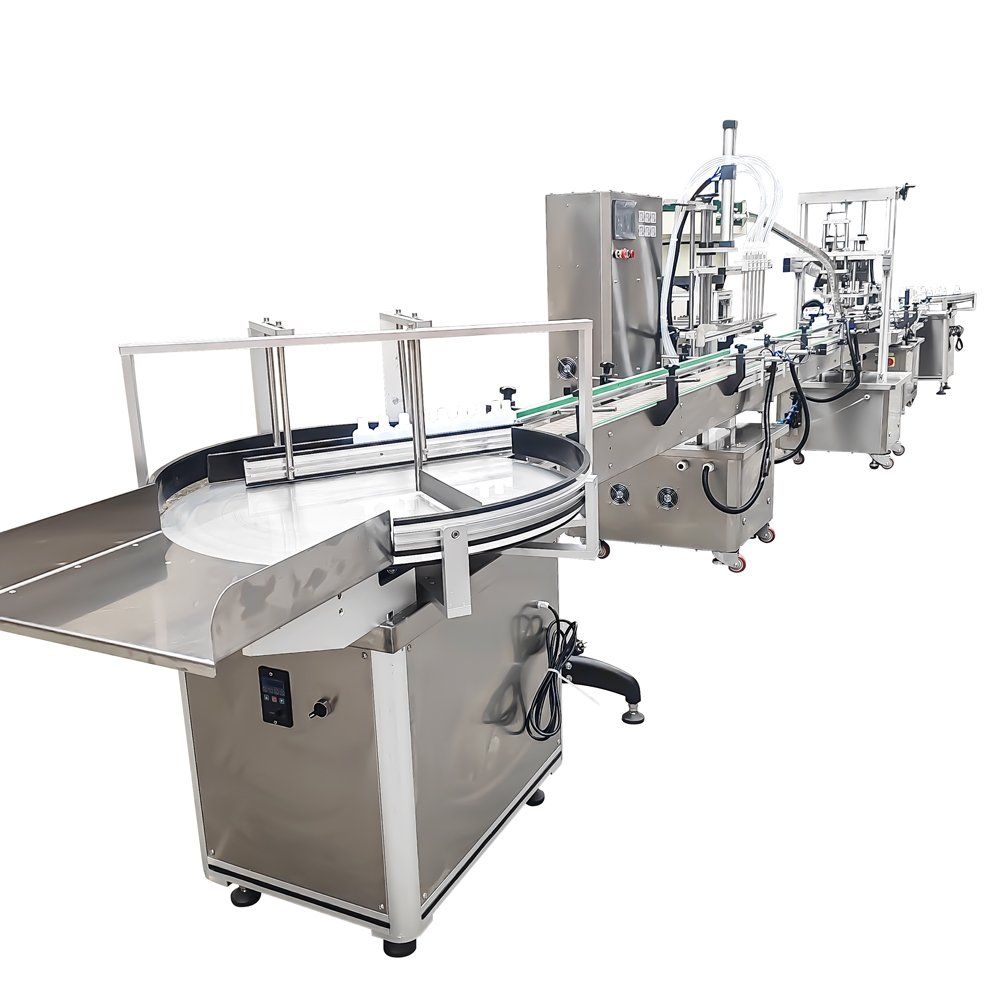

Bottle Sorting, Filling & Screwing Line
Complete Line · Filling error: ±1% · Filling speed: Up to 60 bottles/minute
MACHPROOF
MP-113
MP-113
Bottle-sorting, filling, and screwing assembly lineEquipment name
±1%Filling error
up to 60 bottles/minuteFilling speed
Complete Lines
Bottle Sorting, Filling & Screwing Line
MP-113A compact three-station line: bottle sorting, six-head filling and screw capping on one 8-metre frame. Output reaches 60 bottles a minute with a suction lift of 2–5 m, so the product tank can sit outside the filling room.
- Equipment nameBottle-sorting, filling, and screwing assembly line
- Filling error±1%
- Filling speedup to 60 bottles/minute
- Number of filling heads6 (customizable)
Final configuration is confirmed after a filling test with your material and container. Send the bottle, the cap and the product — we reply with a tested match and a quotation.
SPECIFICATION
Full technical data
Figures below are the catalogue values for this model. Anything marked “configured” or “customizable” is set from your sample during the test, and the final figures are written into the quotation.
| Equipment name | Bottle-sorting, filling, and screwing assembly line |
|---|---|
| Filling error | ±1% |
| Filling speed | up to 60 bottles/minute |
| Number of filling heads | 6 (customizable) |
| Filling range | customized according to the provided sample |
| Maximum suction lift | 2~5m |
| Equipment material | combination of stainless steel and aluminum |
| Equipment power supply | 220V/50HZ |
| Equipment weight | approximately 1000kg |
| Equipment dimensions | 8*1.2*1.75m |
MACHINE DETAILS
Built detail by detail
Construction notes published for this model by the factory — control panel, filling and capping stations, guarding and finish. Send your container and we confirm the same build on a test run.

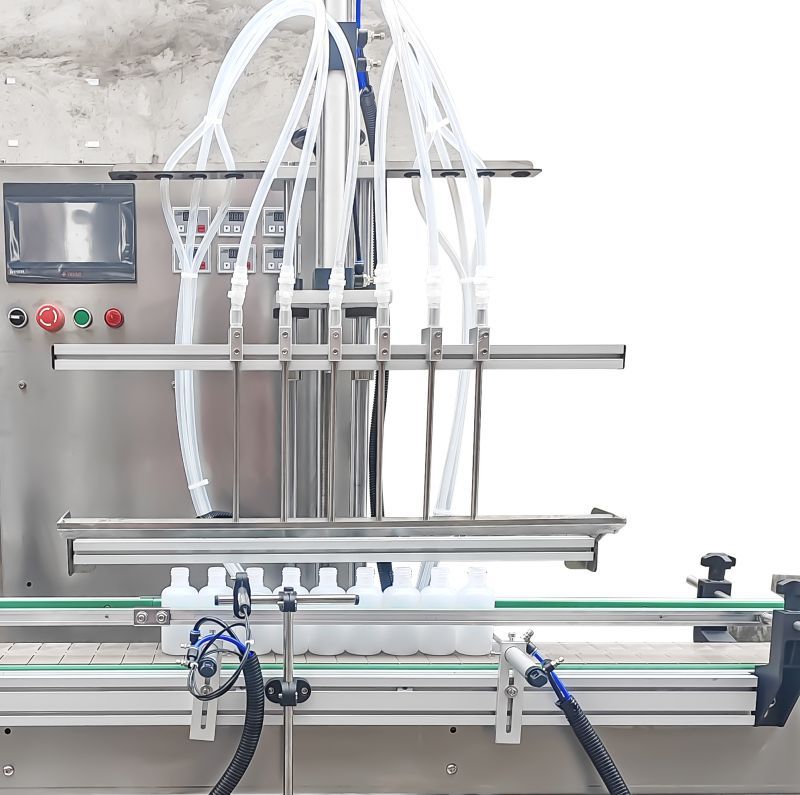

Automatic lifting and filling
Drip-proof, splash-proof, and bubble-proof, each filling nozzle is equipped with an independent flow regulator

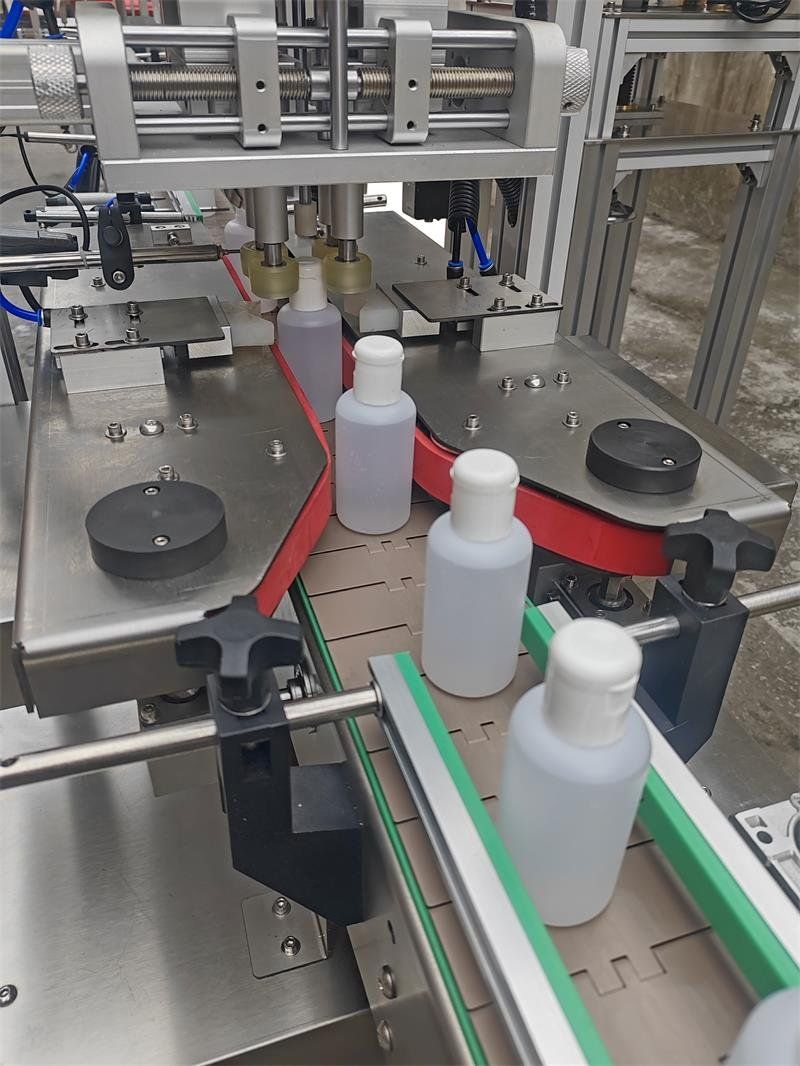

Automatic cap screwing mechanism
Accurate positioning, no bottle toppling or damage, and more precise lid delivery

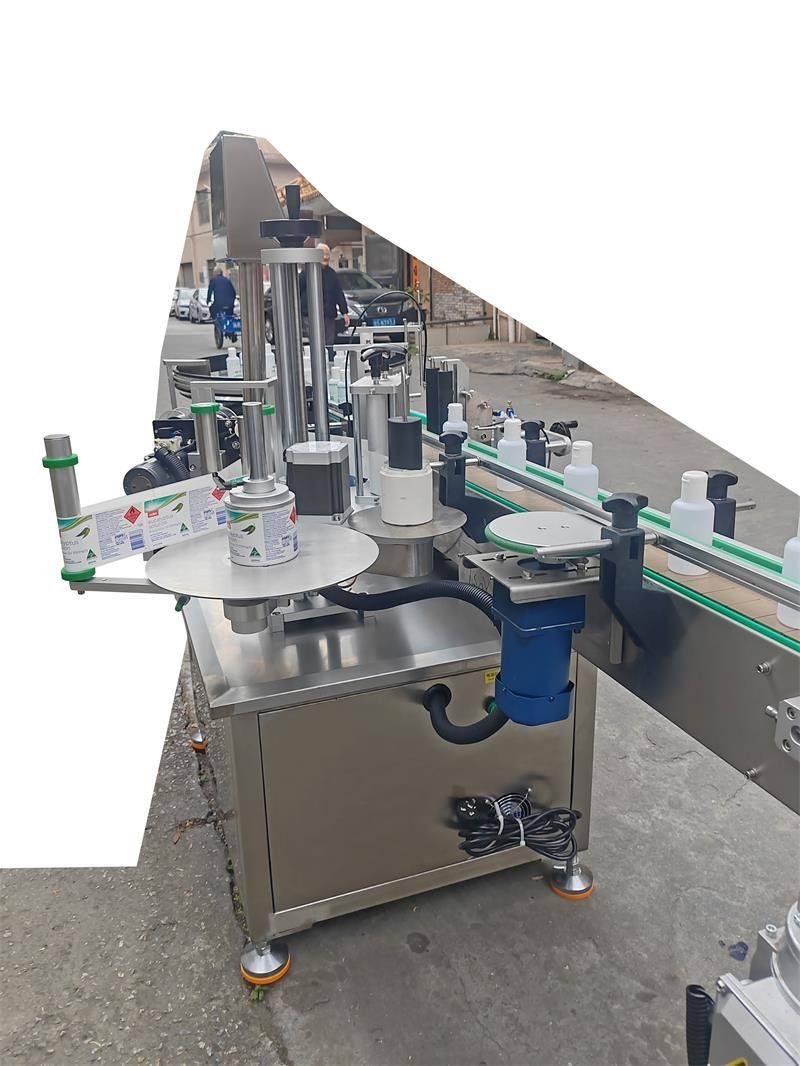

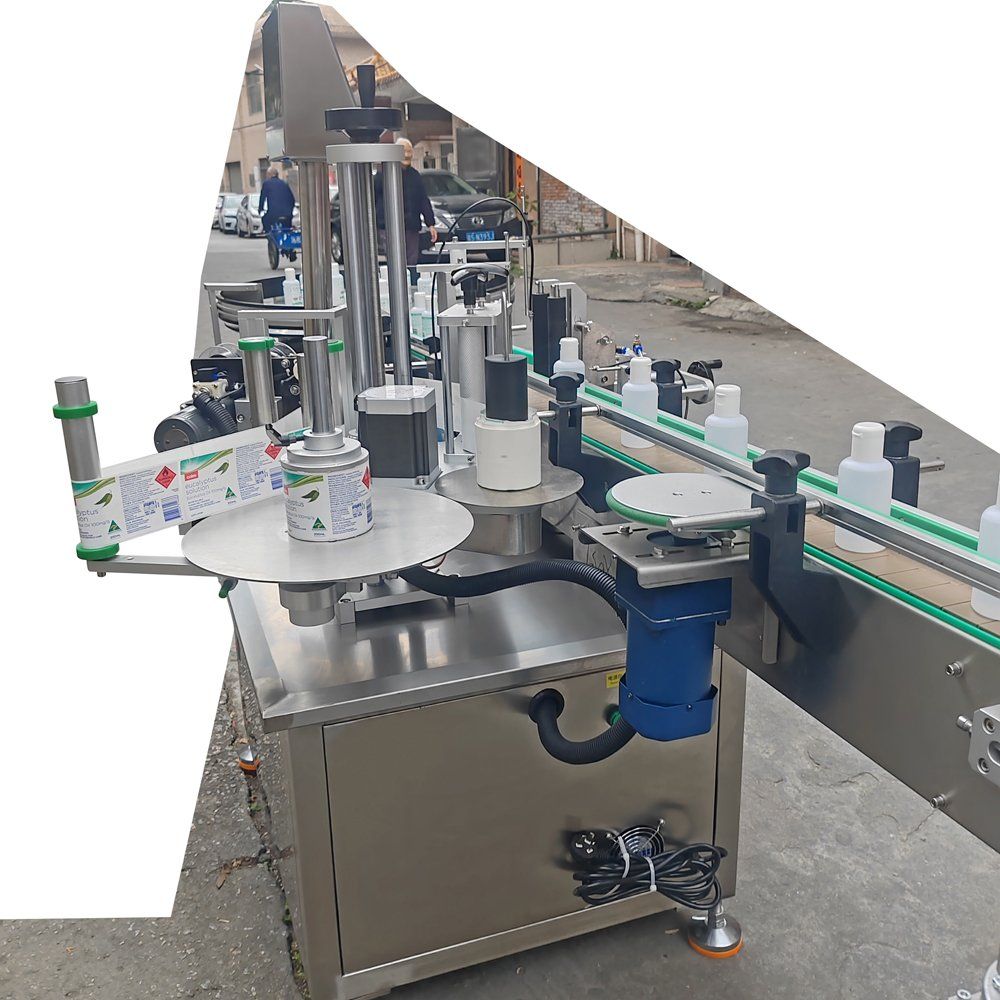

Fully automatic labeling
The appropriate location for the special label station can be determined based on the size of the bottle

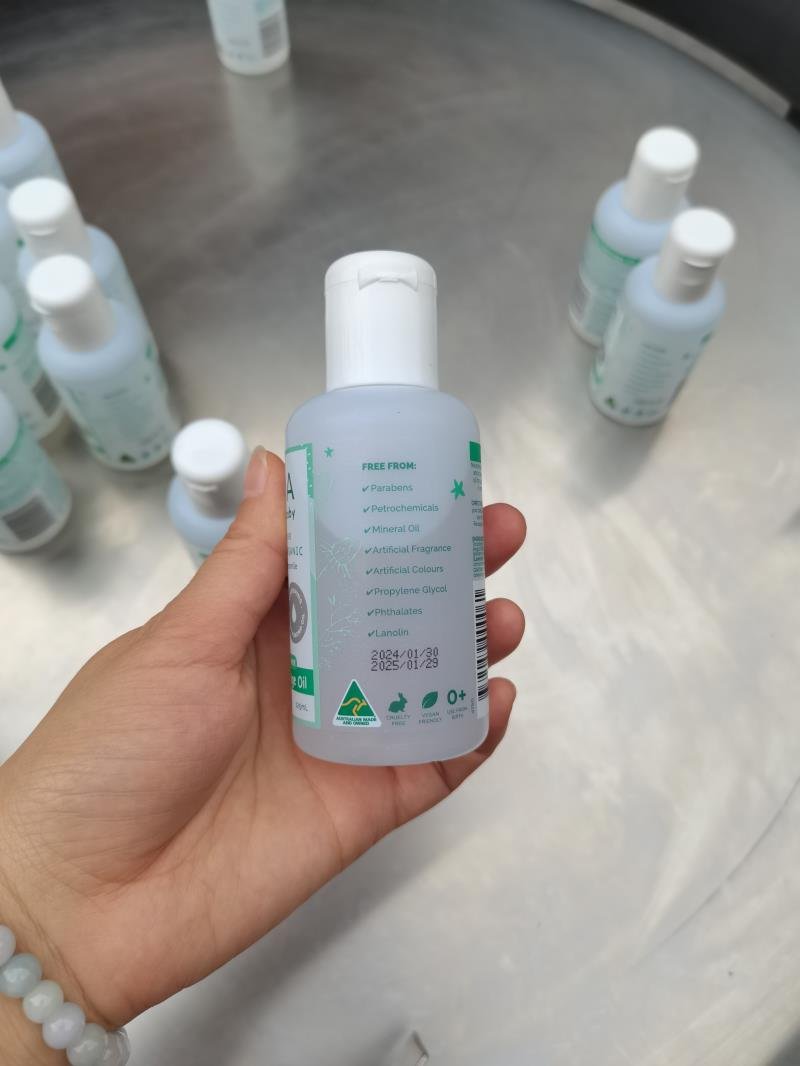

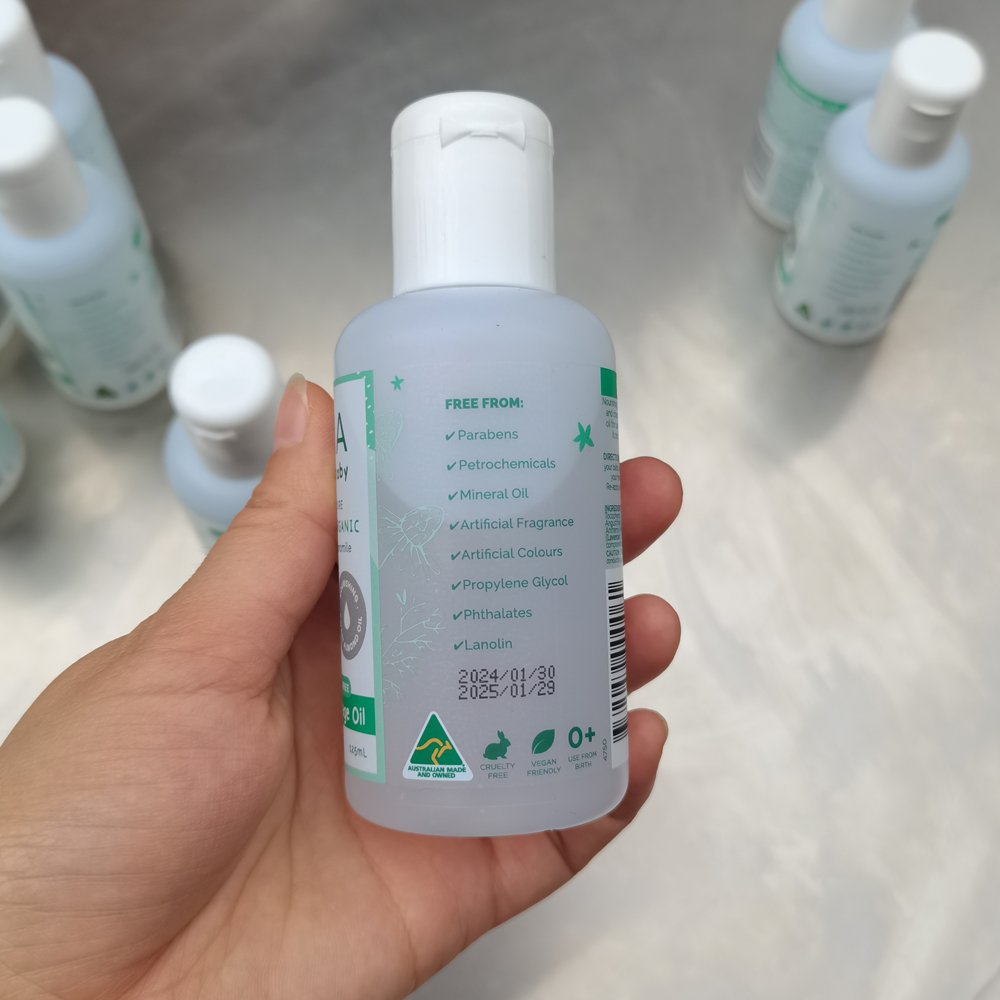

Small character inkjet printer
Positioning labeling, precise and fast, economical and affordable

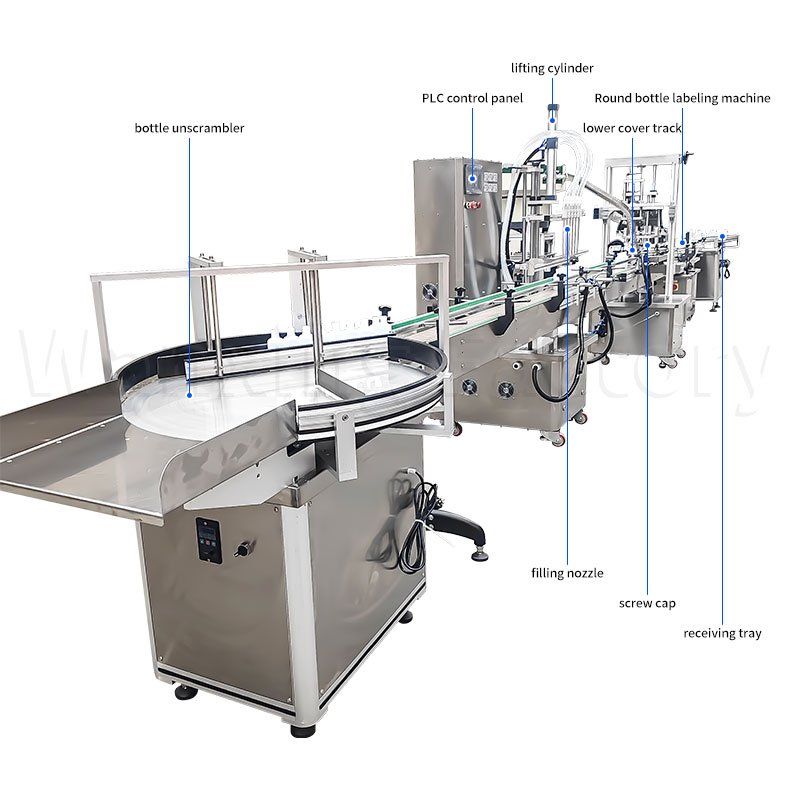

Automatic bottle sorting and conveying line
Rotating disc bottle conveyor line, with strong universality and multiple uses, can be matched with any production line
APPLICATIONS
Where this model fits
Suitable products & containers
Bottle sorting6-head fillingScrew cappingUp to 60 bottles/min8 m footprint
Container change means nozzle, rail and gripper change. Send your bottle or pouch and we re-test on it before you order.
Selection note
A common choice for a first automatic line: the three stations share one frame and one panel, which keeps the footprint at 8 × 1.2 m and the installation to a single power and air connection.
CONTAINER REFERENCE
Packs this machine is tested with
Reference packs from the MachProof test library, showing the container families this model is set up for. Your own bottle, jar or pouch is run on the machine before the configuration is fixed.
NEXT STEP
Send us your bottle and your product.
We run a test on this machine type with your container and material, then send the video, the weighing record and a quotation with the exact configuration.
