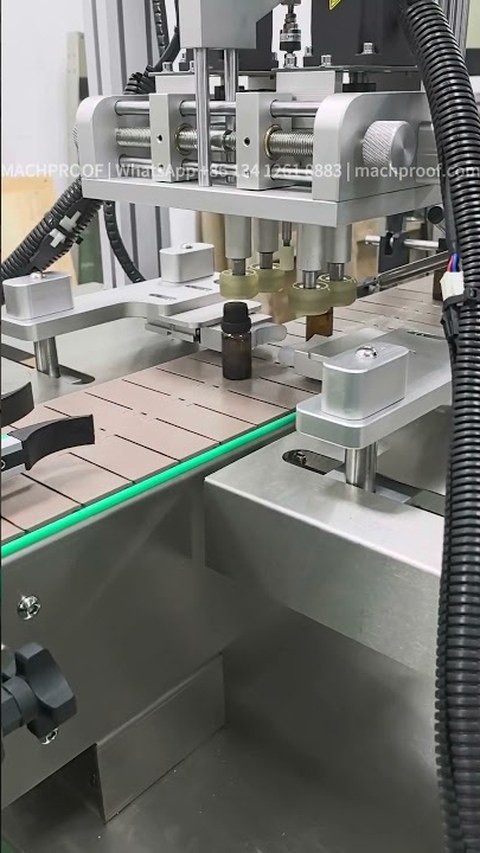

Pharmaceutical Small Bottle Filling Line
10–100 ml · Pharmaceutical liquid · ±1% filling accuracy
1:37
43
VIDEOMP-043
02 / SPECIFICATION
Machine configuration in this test
Read from the original test record of this machine — the same wording our workshop uses on the file name.
- Filling volume
- 10–100 ml
- Product
- Pharmaceutical liquid
- Pump
- Magnetic pump
- Pump flow
- 5 L/min
- Filling accuracy
- ±1% filling accuracy
- Automation
- Fully automatic
- Stations & equipment
- Manual cap placingCapping
- Machine features
- Vertical lift filling headsAnti-drip filling nozzlesPneumatic shut-off nozzle
- Industry
- Supplements & Healthcare
- Selection focus
- Precision first
- Product properties
- Low viscosityNo particlesNon-corrosiveFood-grade hygiene
- Common containers
- VialAmpouleDropper bottleNarrow-mouth bottleGlass bottlePlastic bottle
- Common sizes
- 10ml20ml30ml50ml100ml200ml
- Suitable pumps
- Peristaltic pumpSyringe-typeServoCeramic pump
- Machine type
- Filling + capping machine
03 / WHAT YOU SEE
01
Real machine, real product
Recorded in our workshop on a machine of this model — same pump type, same nozzle, same control cabinet as the one quoted to you.
02
One continuous take
No speed-up and no cuts, so drip, foaming and splash can be judged by eye at normal playback.
03
Tested before shipment
We keep the weighing record of this test. Ask for it together with the spare-parts list and the FAT checklist.
TECHNICAL DATA
Factory technical data of this machine type
Factory data for this machine type (power, voltage, air supply, dimensions, weight) is not published yet — send us your container and line and we will confirm the exact figures with the quotation.
REQUEST THE FULL DATA SHEET→04 / CONTAINERS & PRODUCTS
Set up for this container and this product
Container change means nozzle, guide rail and gripper change — send us your bottle or pouch and we will re-test on it before you order.
Pharmaceutical liquid
MATERIAL PROFILE
What this product does to your line
Viscosity, foaming and hygiene level decide the pump, the nozzle and the hopper. Below are the problems this product usually causes on a line and the configuration that answers them — several are visible in the video. The final configuration is confirmed in the quotation.
What usually goes wrong04
Inaccurate dosingHygiene & cleanlinessBottle-neck alignmentDripping
Product traits
Small dosesStrict hygiene
What the machine must deliver03
Accurate dosingPrecise positioningHygienic, no contamination
Configuration that answers it11
Servo dosingSyringe-type fillingPiston dosingDrip-free valveWeight feedback304 stainless steel316L stainless steelCIP cleaning portsQuick-release clampsDead-corner-free weldingPeristaltic pump
