Device details
Support sample-based customization. Please contact customer service
Three-Head Spout Pouch Filling Machine
Spout Pouch Line · Filling error: ±1% · Capping heads: 3 (customizable)
MACHPROOF
MP-121
MP-121
Self-supporting bag three-head cabinet filling machineEquipment name
±1%Filling error
Three heads (customization supported)Number of cap screwing heads
Spout Pouch Lines
Three-Head Spout Pouch Filling Machine
MP-121A three-head spout pouch filler with three capping heads, running up to 1,800 bags an hour. Pouches are picked, opened at the spout, filled, capped and discharged on one rotary table.
- Equipment nameSelf-supporting bag three-head cabinet filling machine
- Filling error±1%
- Number of cap screwing headsThree heads (customization supported)
- Number of filling headsThree heads (customizable)
Final configuration is confirmed after a filling test with your material and container. Send the bottle, the cap and the product — we reply with a tested match and a quotation.
SPECIFICATION
Full technical data
Figures below are the catalogue values for this model. Anything marked “configured” or “customizable” is set from your sample during the test, and the final figures are written into the quotation.
| Equipment name | Self-supporting bag three-head cabinet filling machine |
|---|---|
| Filling error | ±1% |
| Number of cap screwing heads | Three heads (customization supported) |
| Number of filling heads | Three heads (customizable) |
| Applicable air source | 0.4-0.6MPA |
| Equipment weight | approximately 800KG |
| Equipment speed | 1800 bags/hour |
| Equipment material | combination of stainless steel and aluminum |
| Equipment power supply | 220V/50HZ |
| Equipment dimensions | 305*105*186cm |
MACHINE DETAILS
Built detail by detail
Construction notes published for this model by the factory — control panel, filling and capping stations, guarding and finish. Send your container and we confirm the same build on a test run.

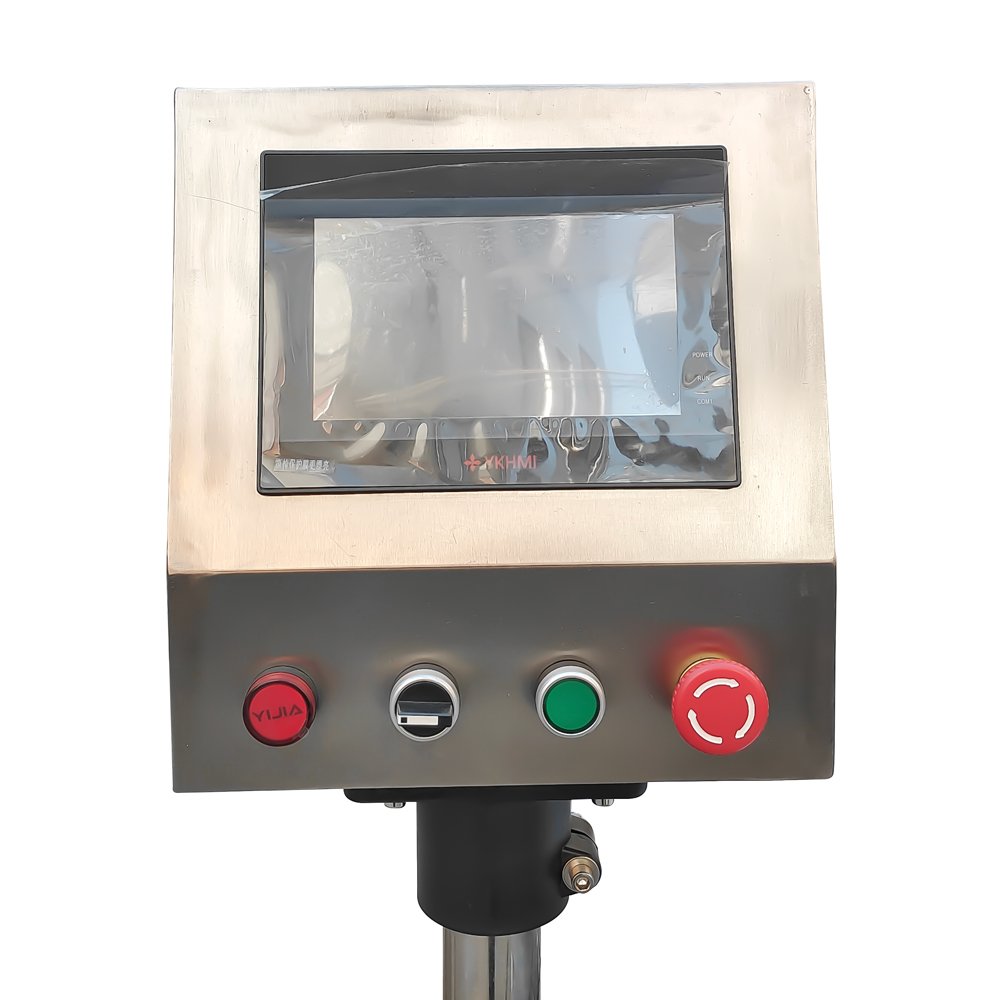

PLC control panel design
Using PLC touch screen control, quantitative control for filling, no time control required, simple operation, easy to use

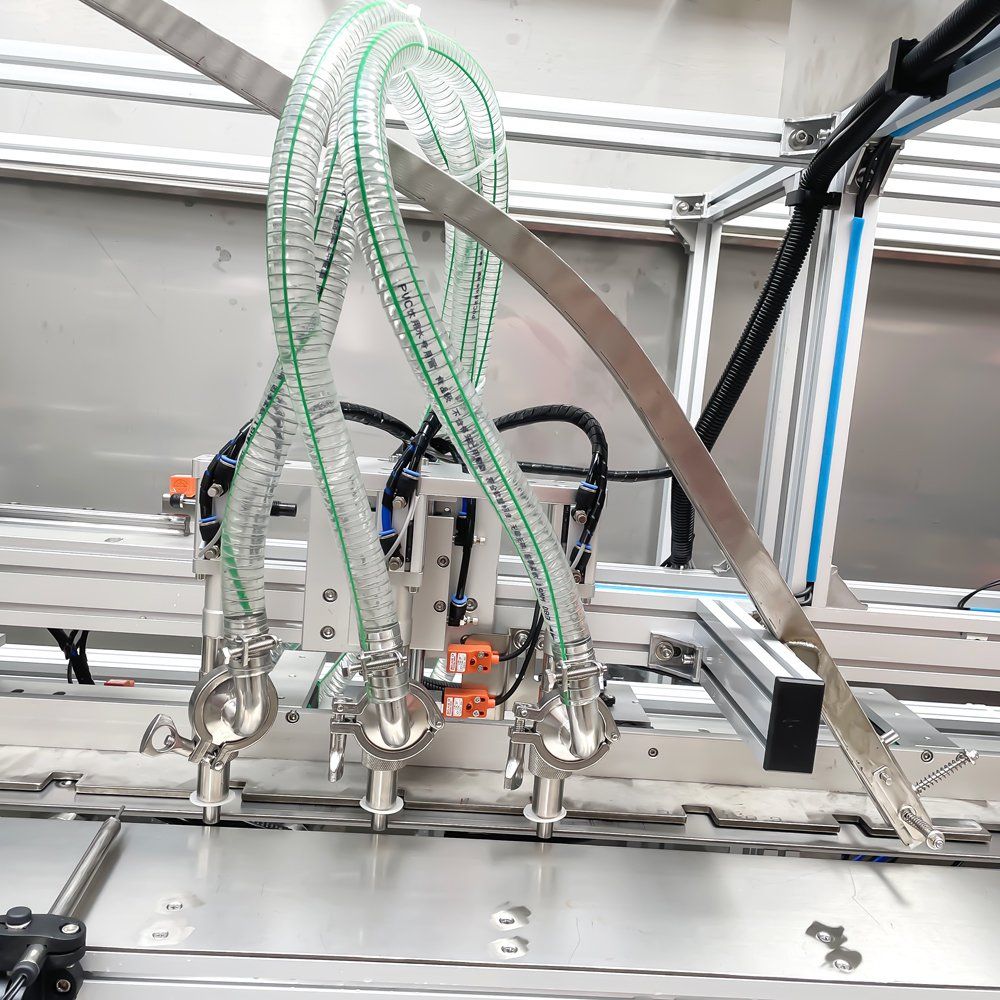

Precision filling, no drips or leaks
The filling nozzle is equipped with an anti-drip device for good sealing, and also features an air blowing and shredding function, ensuring no splashing or overflow during filling
Automatic cap screwing
Adjustable torque, good stability, high efficiency, and individual control
Vibration disc cover arranging machine
Adjustable speed, high precision and stability, thick material tray, handmade with smooth surface, and no damage to the lid
APPLICATIONS
Where this model fits
Suitable products & containers
Spout pouchesStand-up pouchesUp to 1,800 bags/hourLiquids & semi-liquidsDoypack
Container change means nozzle, rail and gripper change. Send your bottle or pouch and we re-test on it before you order.
Selection note
The workhorse for pouch products: three filling and three capping heads balance the cycle, and the spout gripper is changed for your spout diameter.
CONTAINER REFERENCE
Packs this machine is tested with
Reference packs from the MachProof test library, showing the container families this model is set up for. Your own bottle, jar or pouch is run on the machine before the configuration is fixed.
NEXT STEP
Send us your bottle and your product.
We run a test on this machine type with your container and material, then send the video, the weighing record and a quotation with the exact configuration.
