ALB-320 Round Bottle Labeller
Labeling Machine · Labelling accuracy: ±1 mm (product dependent) · Equipment weight: 130 kg
MACHPROOF
MP-109
MP-109
ALB-320 (Desktop Fixed Point Round Bottle Labeling Machine)Model name
+1mm (depending on the product)Labeling accuracy
130KGEquipment weight
Labeling Machines

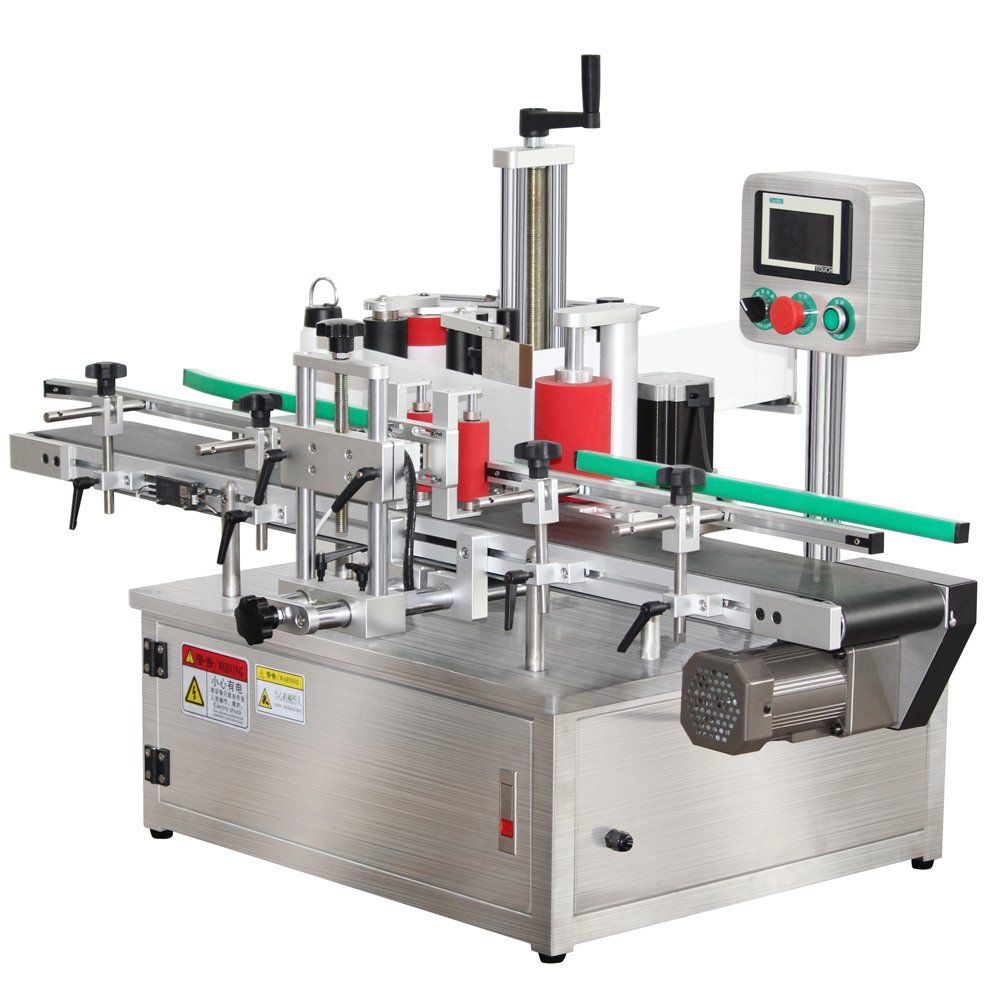

ALB-320 Round Bottle Labeller
MP-109A tabletop round-bottle labeller with a fixed labelling station. The bottle rolls against the belt while the label is applied, giving a square wrap on small cylinders without a full production line.
- Model nameALB-320 (Desktop Fixed Point Round Bottle Labeling Machine)
- Labeling accuracy+1mm (depending on the product)
- Equipment weight130KG
- Conveyor speed24 meters per minute (adjustable speed)
Final configuration is confirmed after a filling test with your material and container. Send the bottle, the cap and the product — we reply with a tested match and a quotation.
SPECIFICATION
Full technical data
Figures below are the catalogue values for this model. Anything marked “configured” or “customizable” is set from your sample during the test, and the final figures are written into the quotation.
| Model name | ALB-320 (Desktop Fixed Point Round Bottle Labeling Machine) |
|---|---|
| Labeling accuracy | +1mm (depending on the product) |
| Equipment weight | 130KG |
| Conveyor speed | 24 meters per minute (adjustable speed) |
| Production speed | 20-60 pieces/minute |
| Overall dimensions | L1230 x W1100 x H876MM |
| Label size | Length: 20-350MM Width: 20-130MM |
| Product size | Diameter: 40-120MM Height: 30-300MM |
| Label requirement | inner diameter of label 76mm, outer diameter of label 300MM |
| Required gas source | 0.6-0.8MPA |
| Power specification | 220V/50HZ |
| Power | 1000w |
MACHINE DETAILS
Built detail by detail
Construction notes published for this model by the factory — control panel, filling and capping stations, guarding and finish. Send your container and we confirm the same build on a test run.

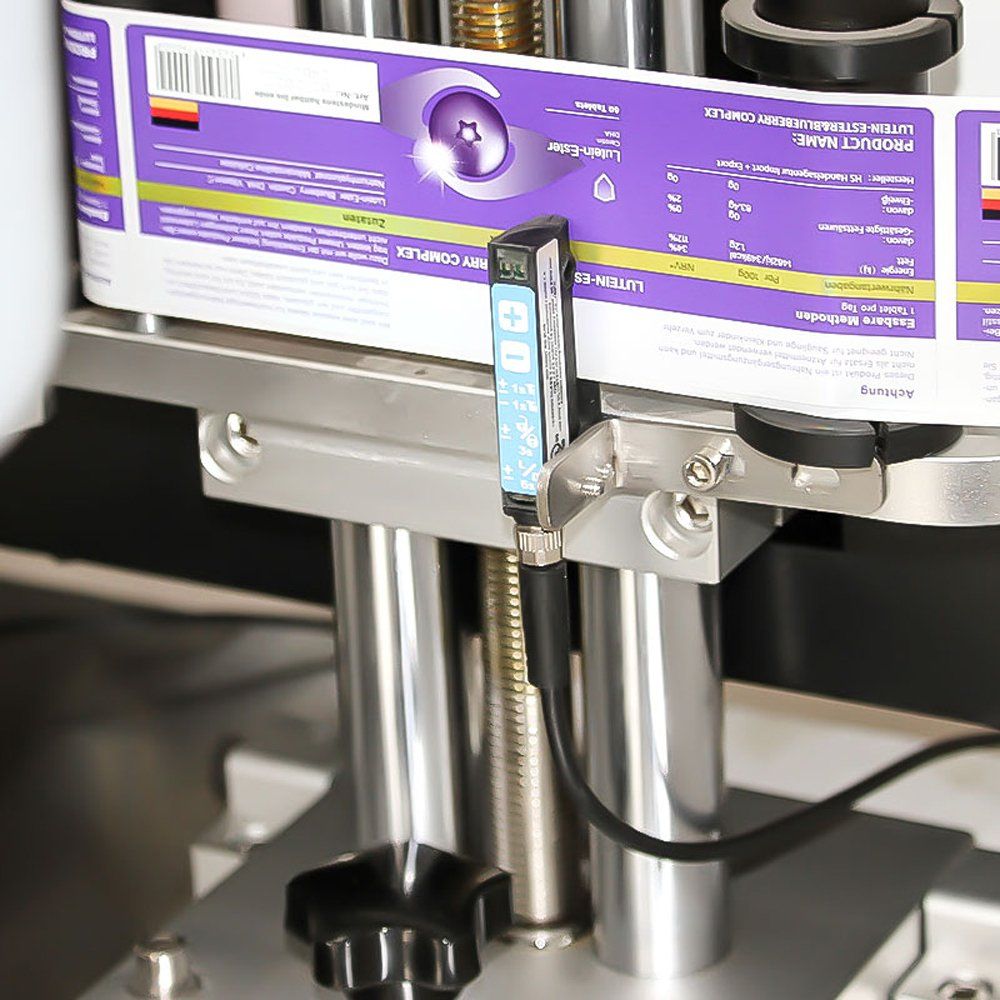

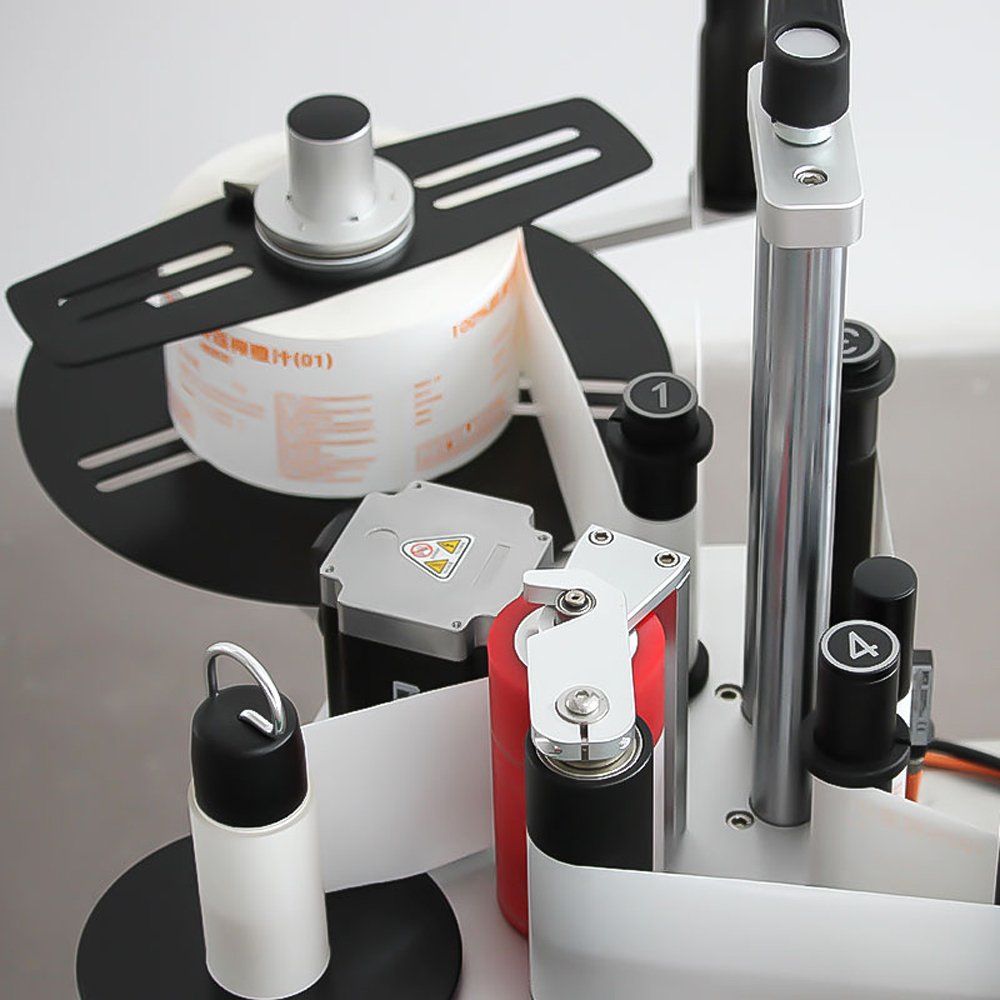

Imported side standard electric clothing
Adopting imported electric clothing, the side labels are precise, stable, reliable, and durable

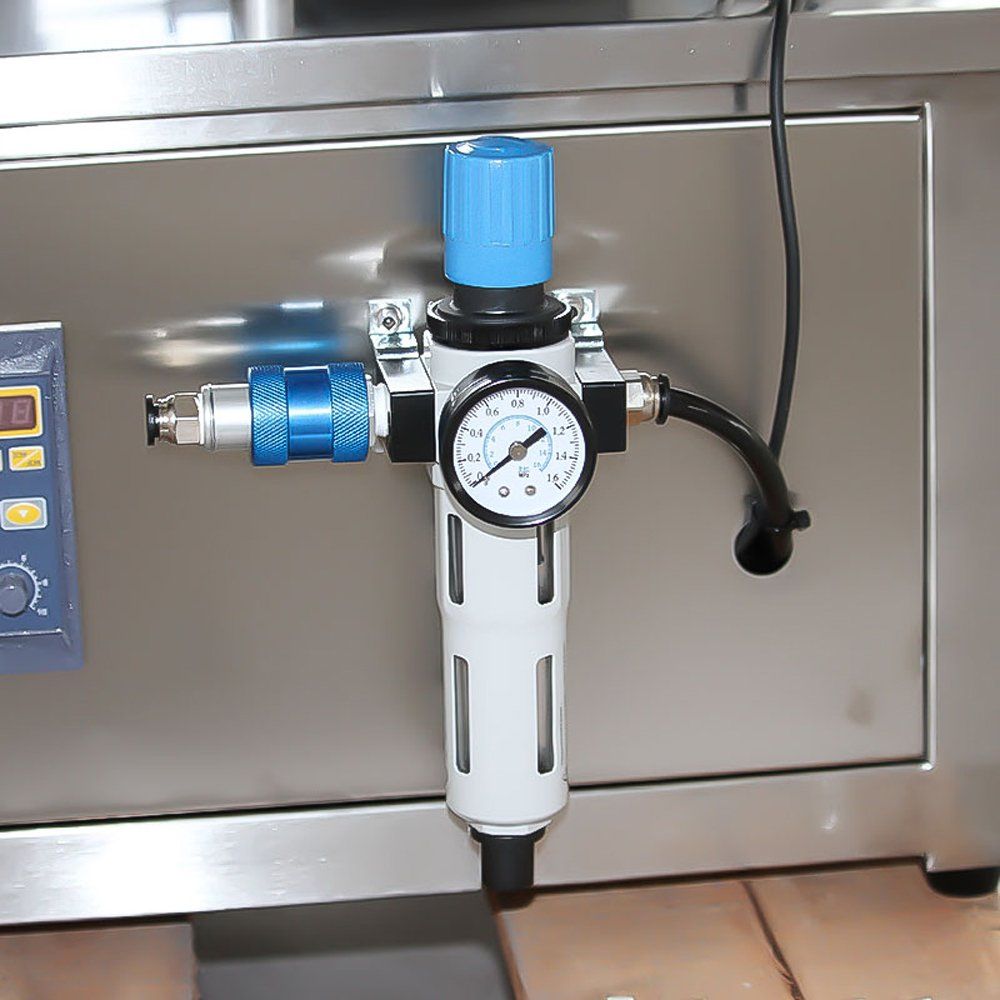

Automatic pressure cylinder
Using a cytinder to automaticaly press down on the product, real-time observation of the machine's alr pressure status, and adustable presure skze when
Belt conveyor belt
Smooth delivery. sturdy and wear-resistant
Adjust the width of the baffle
Adjust the width freely according to the customer's product (the maximum diameter can be adjusted to 90MM)
APPLICATIONS
Where this model fits
Suitable products & containers
Round bottlesSmall cylindersWrap labelsSample runsSmall batch production
Container change means nozzle, rail and gripper change. Send your bottle or pouch and we re-test on it before you order.
Selection note
Compact and single-phase: it fits a workshop bench, labels 20–60 pieces a minute and accepts labels from 20 to 350 mm long, which covers most sample-room and small-batch work.
CONTAINER REFERENCE
Packs this machine is tested with
Reference packs from the MachProof test library, showing the container families this model is set up for. Your own bottle, jar or pouch is run on the machine before the configuration is fixed.
NEXT STEP
Send us your bottle and your product.
We run a test on this machine type with your container and material, then send the video, the weighing record and a quotation with the exact configuration.
