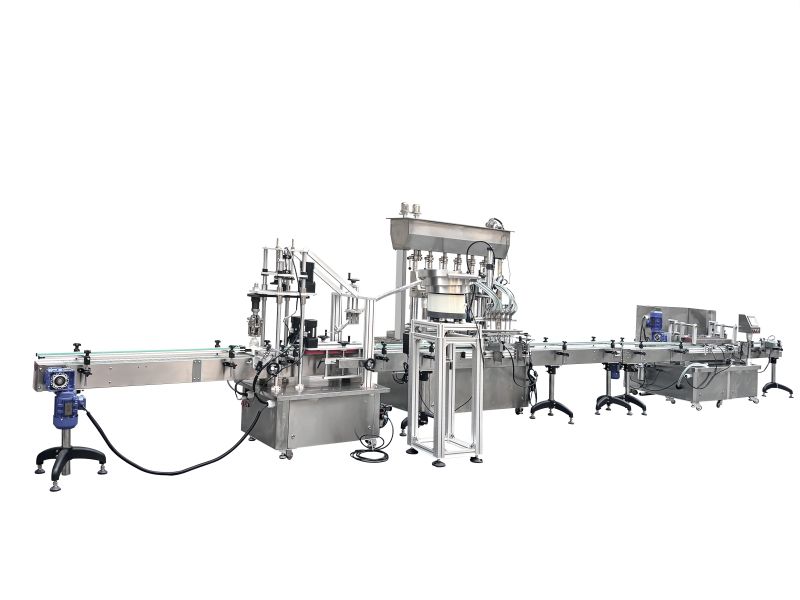

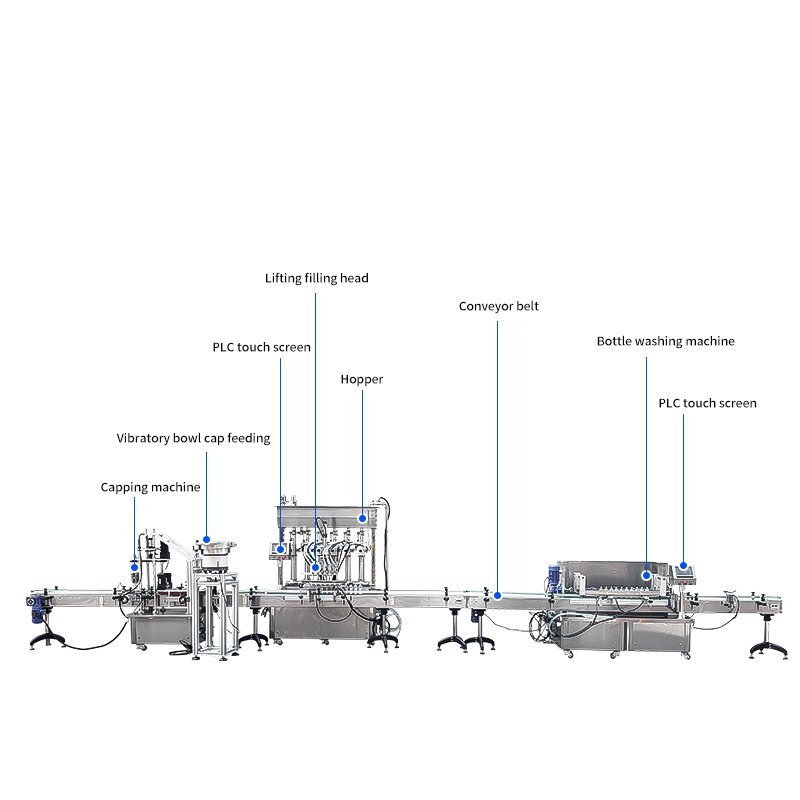

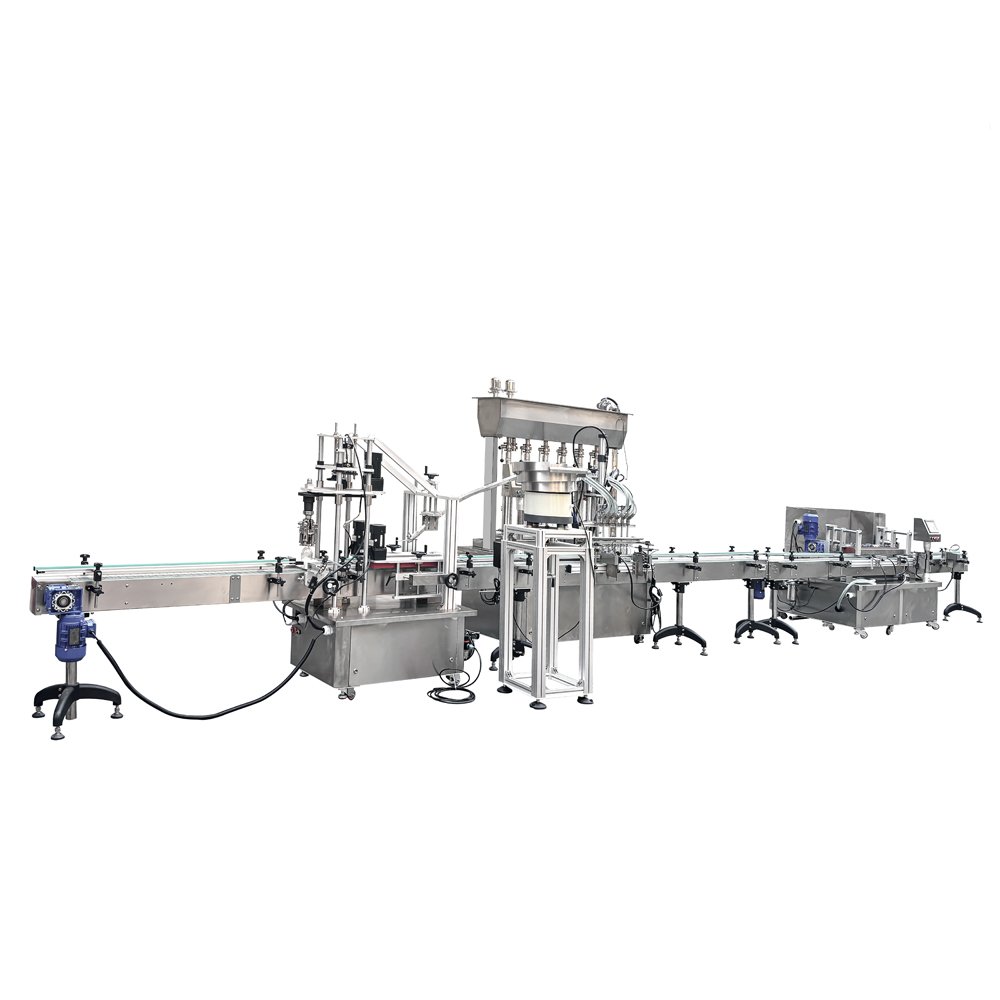

Bottle Washing, Piston Filling & Capping Line
Complete Line · Filling error: ±1% · Filling speed: Configured to your capacity
MACHPROOF
MP-116
MP-116
Integrated Bottle Washing, Piston Filling and Capping LineEquipment name
±1%Error
customized according to production capacityFilling speed
Complete Lines
Bottle Washing, Piston Filling & Capping Line

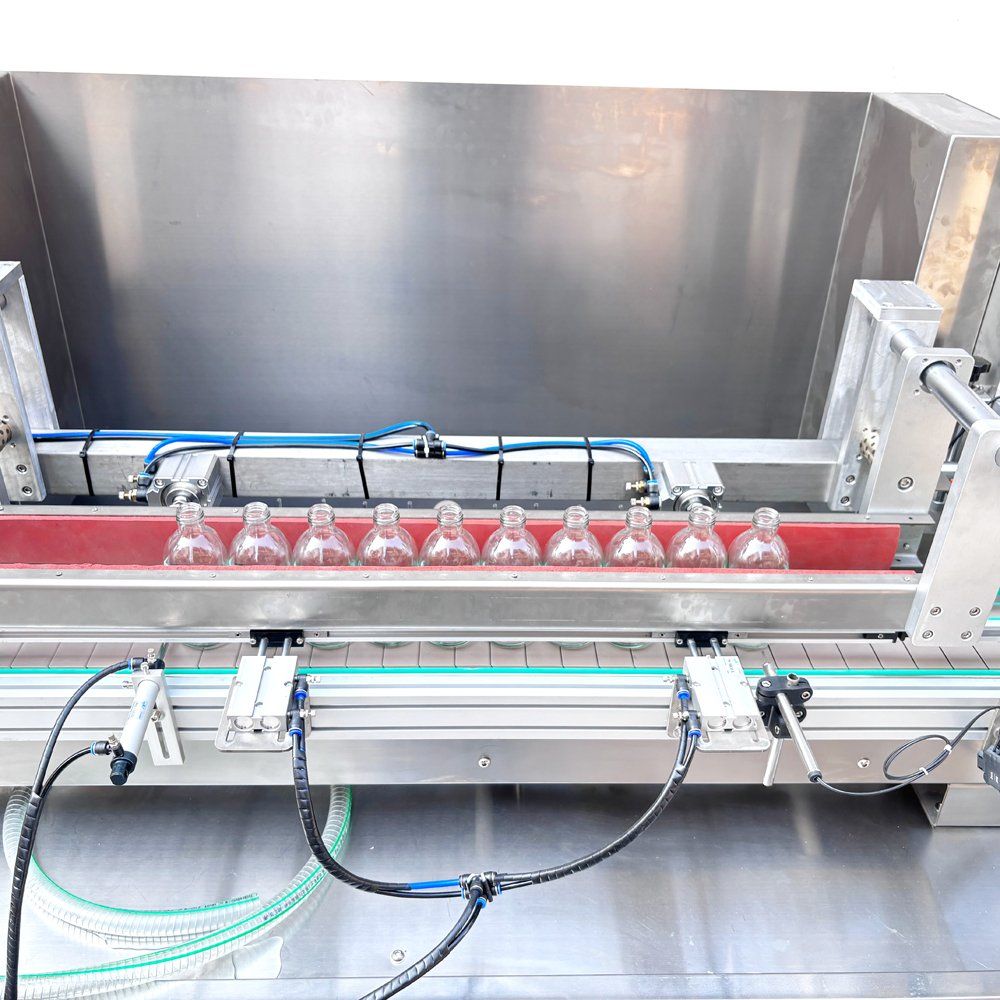

MP-116A washing, piston-filling and capping line in one frame. Bottles are rinsed and drained before filling, and the piston filler handles low-to-medium viscosity liquids including sauces and beverages with pulp.
- Equipment nameIntegrated Bottle Washing, Piston Filling and Capping Line
- Error±1%
- Filling speedcustomized according to production capacity
- Applicable air source0.4-0.6MPA
Final configuration is confirmed after a filling test with your material and container. Send the bottle, the cap and the product — we reply with a tested match and a quotation.
SPECIFICATION
Full technical data
Figures below are the catalogue values for this model. Anything marked “configured” or “customizable” is set from your sample during the test, and the final figures are written into the quotation.
| Equipment name | Integrated Bottle Washing, Piston Filling and Capping Line |
|---|---|
| Error | ±1% |
| Filling speed | customized according to production capacity |
| Applicable air source | 0.4-0.6MPA |
| Equipment material | Suitable for low to medium viscosity liquids, such as sauces, personal care products, pharmaceutical solutions, condiments, beverages with fruit pulp, etc. |
MACHINE DETAILS
Built detail by detail
Construction notes published for this model by the factory — control panel, filling and capping stations, guarding and finish. Send your container and we confirm the same build on a test run.

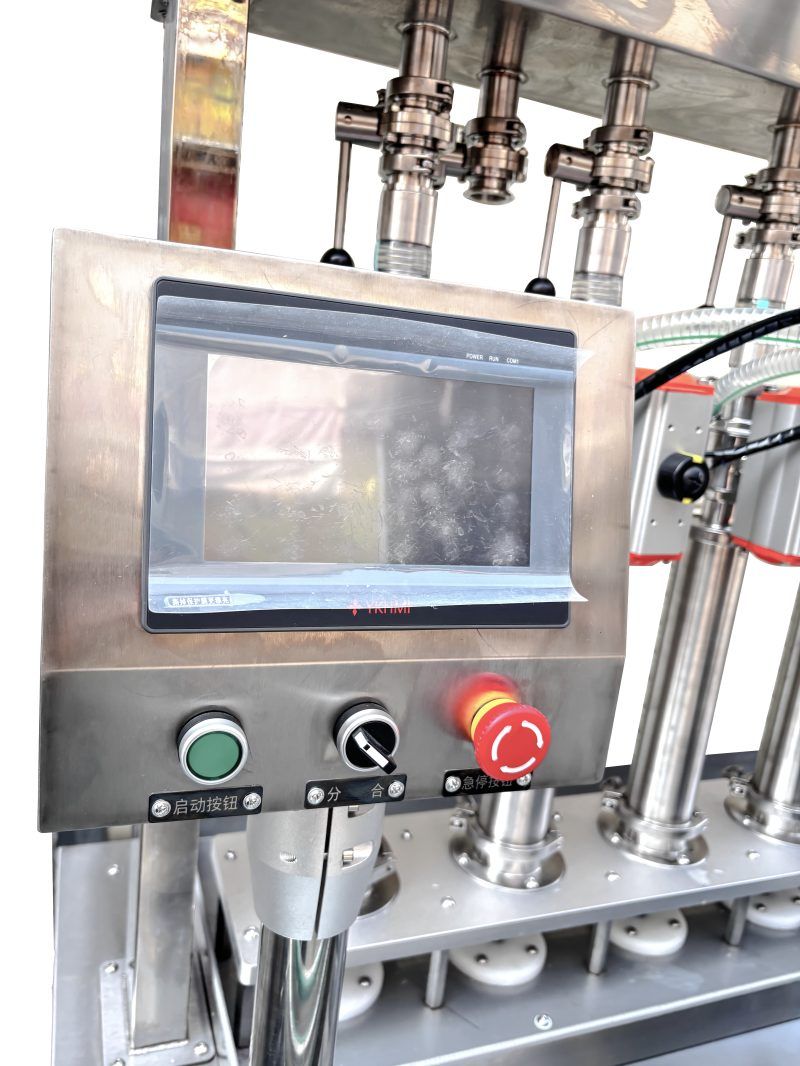

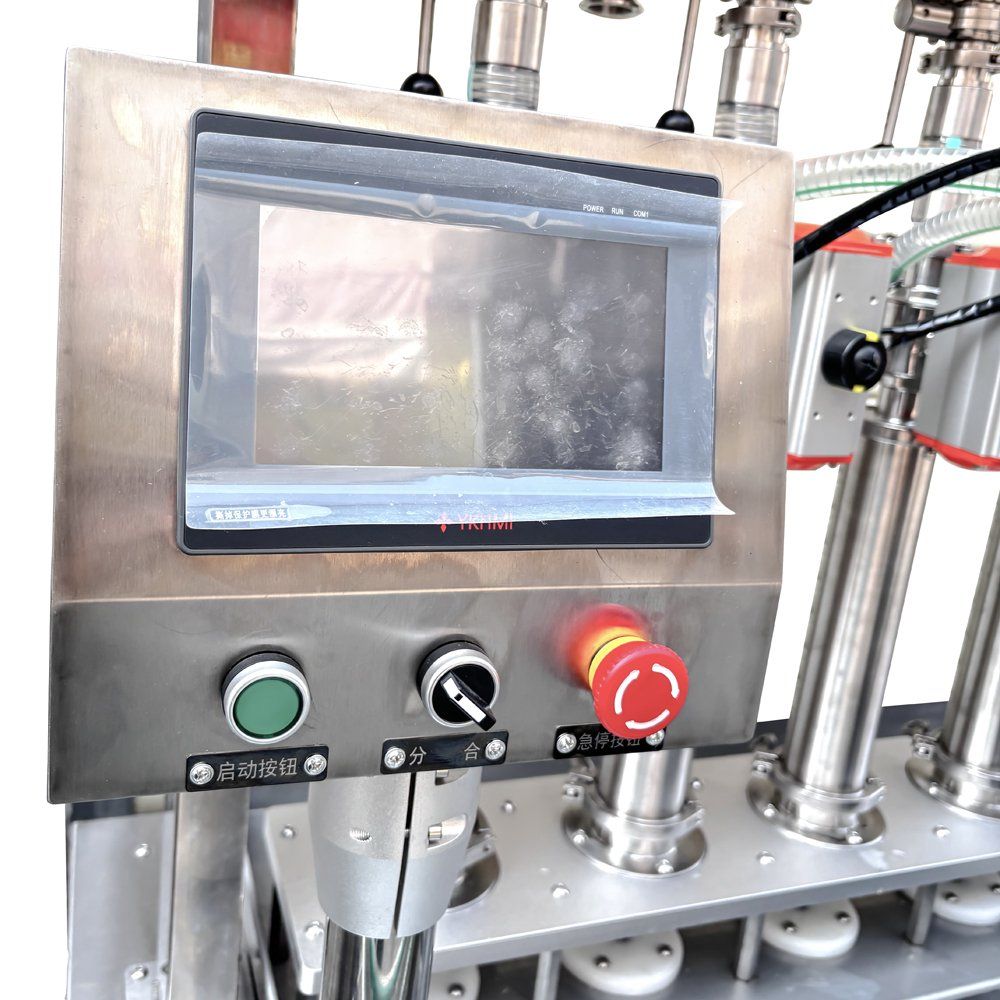

PLC touch panel
Stainless steel casing, integrated touch screen and control buttons, compatible with filling lines and other equipment, safe and durable, easy to operate.

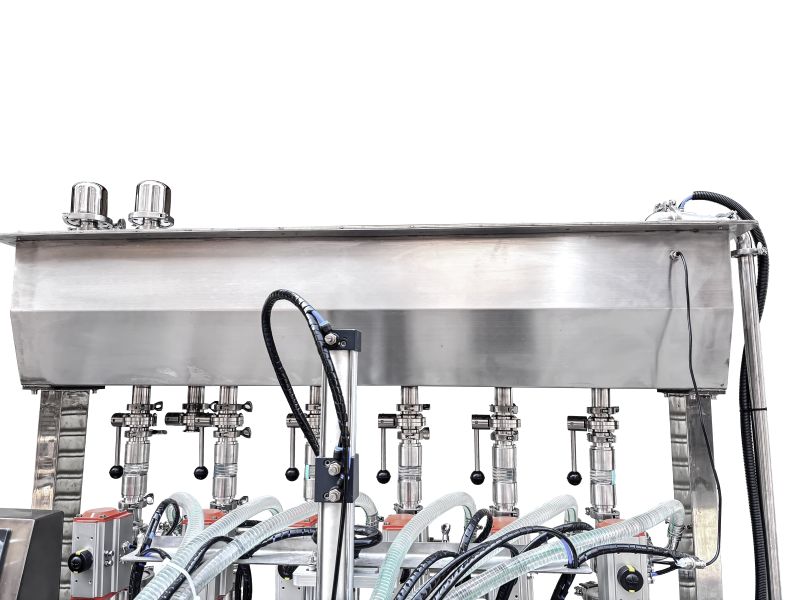

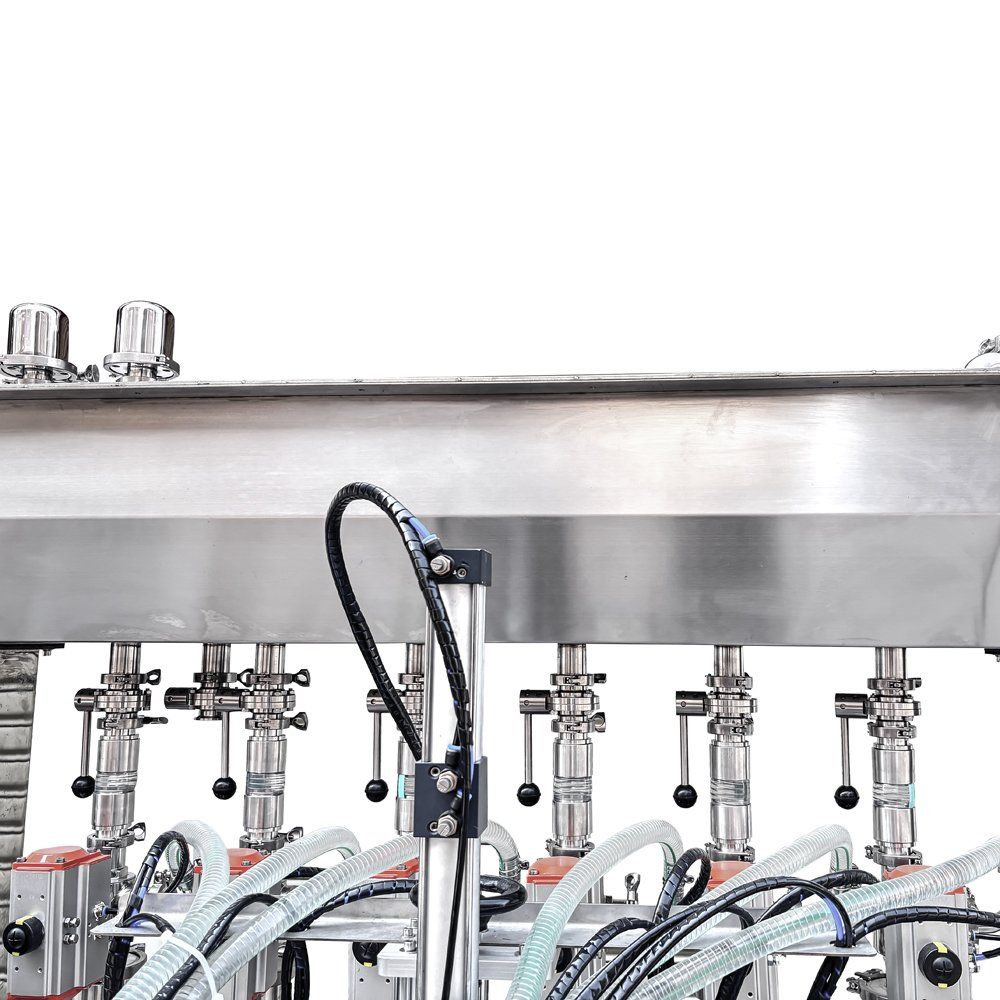

Storage tank
The tank stores materials and maintains normal pressure or slight positive pressure. The pressure difference can be used to press materials from the tank into bottles.

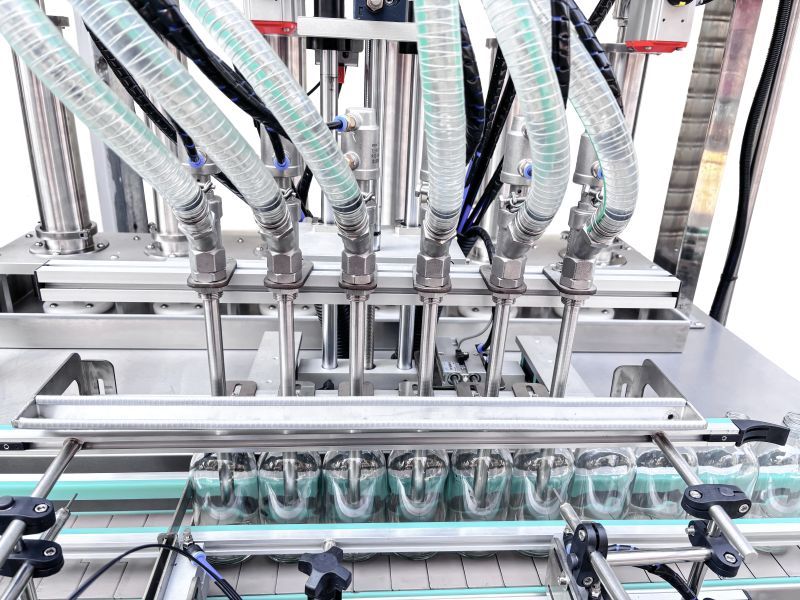

Filling Station
Submerged filling prevents splashing and foaming during operation. Equipped with 316 stainless steel pneumatic shut-off nozzles, the system ensures drip-proof, anti-stringing performance, delivering superior safety, hygiene and long-lasting corrosion resistance.

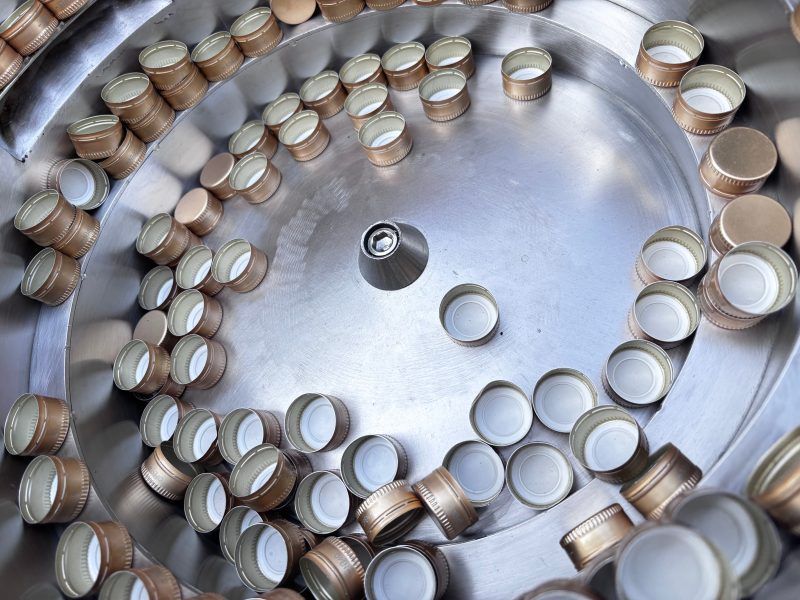

Vibration disc cover arranging machine
Adjustable speed, high precision and stability, thick material tray, handmade with smooth surface, and no damage to the lid.

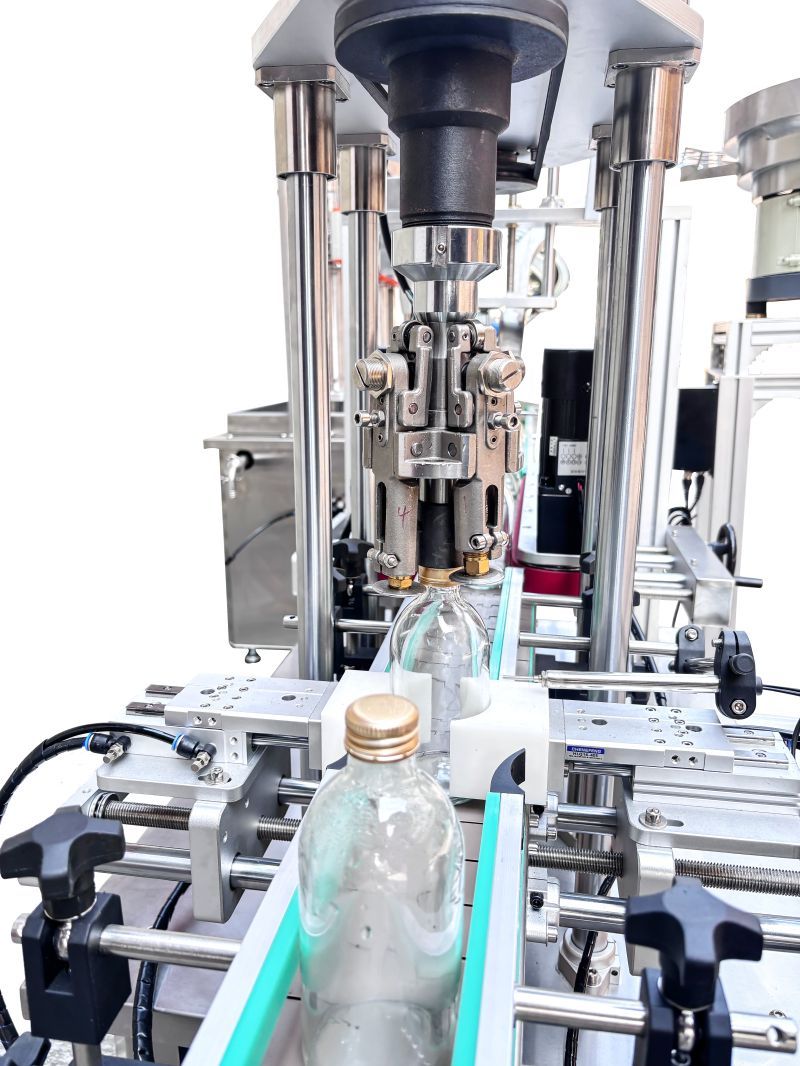

Aluminum Cap Capping Machine
This machine is specially designed for sealing aluminum screw caps, tamper-evident aluminum caps and roll-on aluminum caps on glass bottles. It is a key sealing unit in liquid packaging production lines for wine, beverages, daily chemicals, pharmaceuticals and other industries.
APPLICATIONS
Where this model fits
Suitable products & containers
Bottle rinsingPiston fillingSaucesBeverages with pulpPersonal care
Container change means nozzle, rail and gripper change. Send your bottle or pouch and we re-test on it before you order.
Selection note
Used when empty bottles arrive dusty or when the product must not meet rinse water. The washer, filler and capper share one conveyor and one control panel.
CONTAINER REFERENCE
Packs this machine is tested with
Reference packs from the MachProof test library, showing the container families this model is set up for. Your own bottle, jar or pouch is run on the machine before the configuration is fixed.
NEXT STEP
Send us your bottle and your product.
We run a test on this machine type with your container and material, then send the video, the weighing record and a quotation with the exact configuration.
