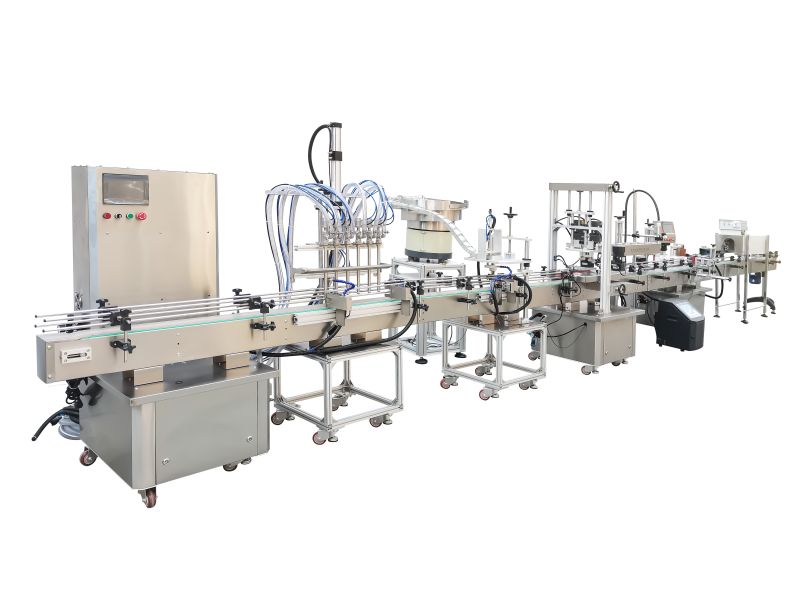

Device details
Support sample-based customization. Please contact customer service
Filling, Capping, Labelling & Heat-Shrink Line
Complete Line · Filling error: ±1% · Filling heads: 8 (customizable)
MACHPROOF
MP-117
MP-117
Filling, capping, labeling, heat shrink wireEquipment name
± 1%Filling error
8 heads (customizable)Filling head count
Complete Lines

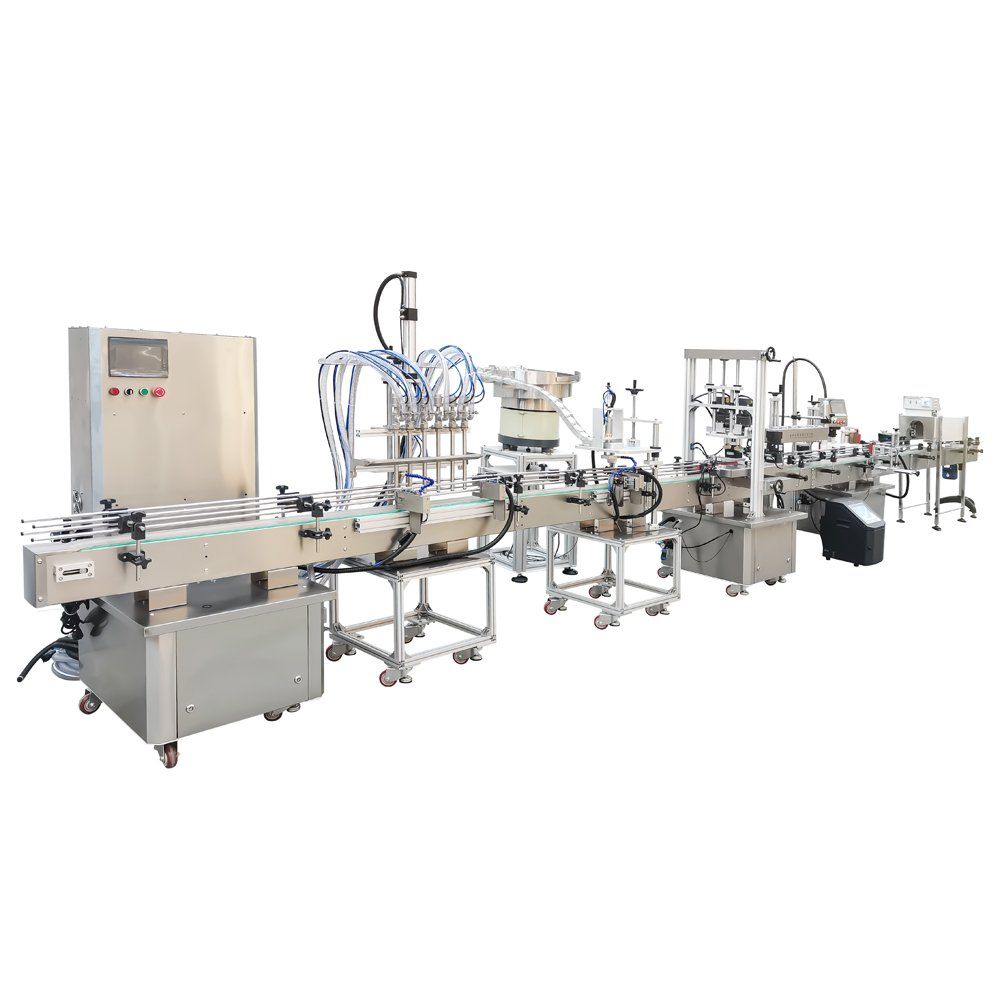

Filling, Capping, Labelling & Heat-Shrink Line
MP-117An eight-head line that fills, caps, labels and heat-shrinks in one pass. The shrink tunnel closes the neck and body sleeve after labelling, so the bottle leaves the line ready to pack.
- Equipment nameFilling, capping, labeling, heat shrink wire
- Filling error± 1%
- Filling head count8 heads (customizable)
- Applicable gas source0.4-0.6MPA Applicable material: Pure liquid without particles
Final configuration is confirmed after a filling test with your material and container. Send the bottle, the cap and the product — we reply with a tested match and a quotation.
SPECIFICATION
Full technical data
Figures below are the catalogue values for this model. Anything marked “configured” or “customizable” is set from your sample during the test, and the final figures are written into the quotation.
| Equipment name | Filling, capping, labeling, heat shrink wire |
|---|---|
| Filling error | ± 1% |
| Filling head count | 8 heads (customizable) |
| Applicable gas source | 0.4-0.6MPA Applicable material: Pure liquid without particles |
| Filling speed | customized according to production capacity matching |
| Equipment material | combination of stainless steel and aluminum |

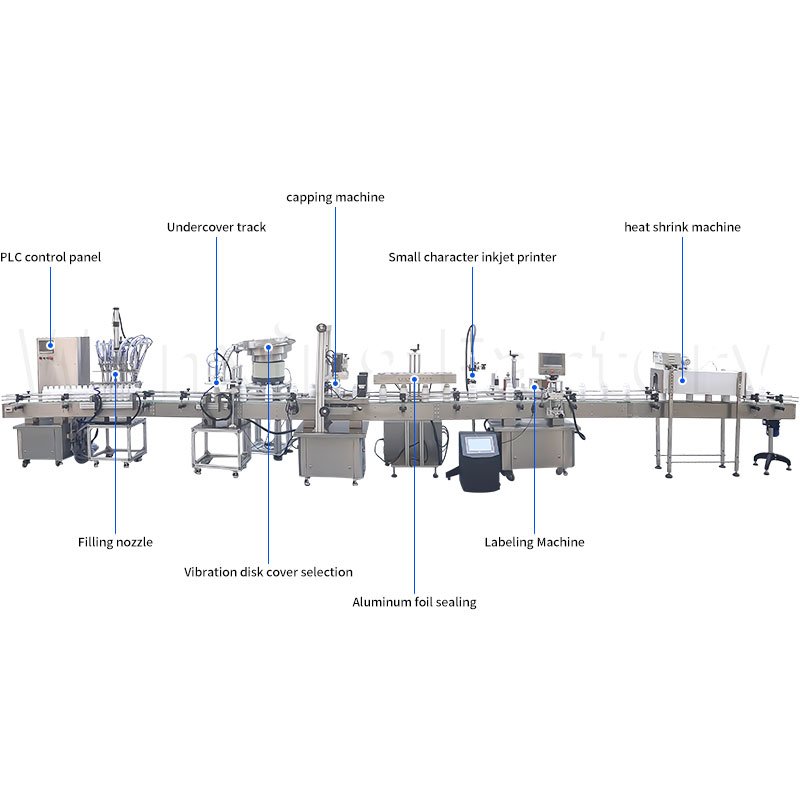

MACHINE DETAILS
Built detail by detail
Construction notes published for this model by the factory — control panel, filling and capping stations, guarding and finish. Send your container and we confirm the same build on a test run.

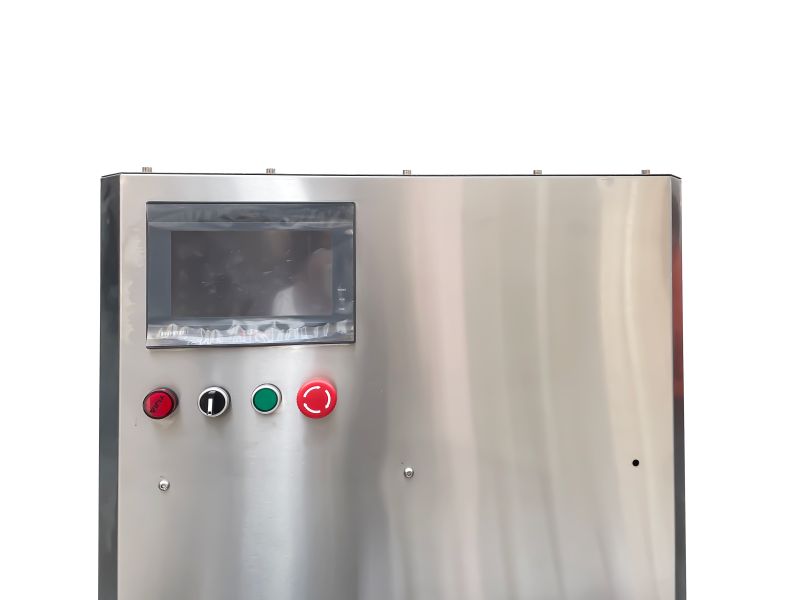

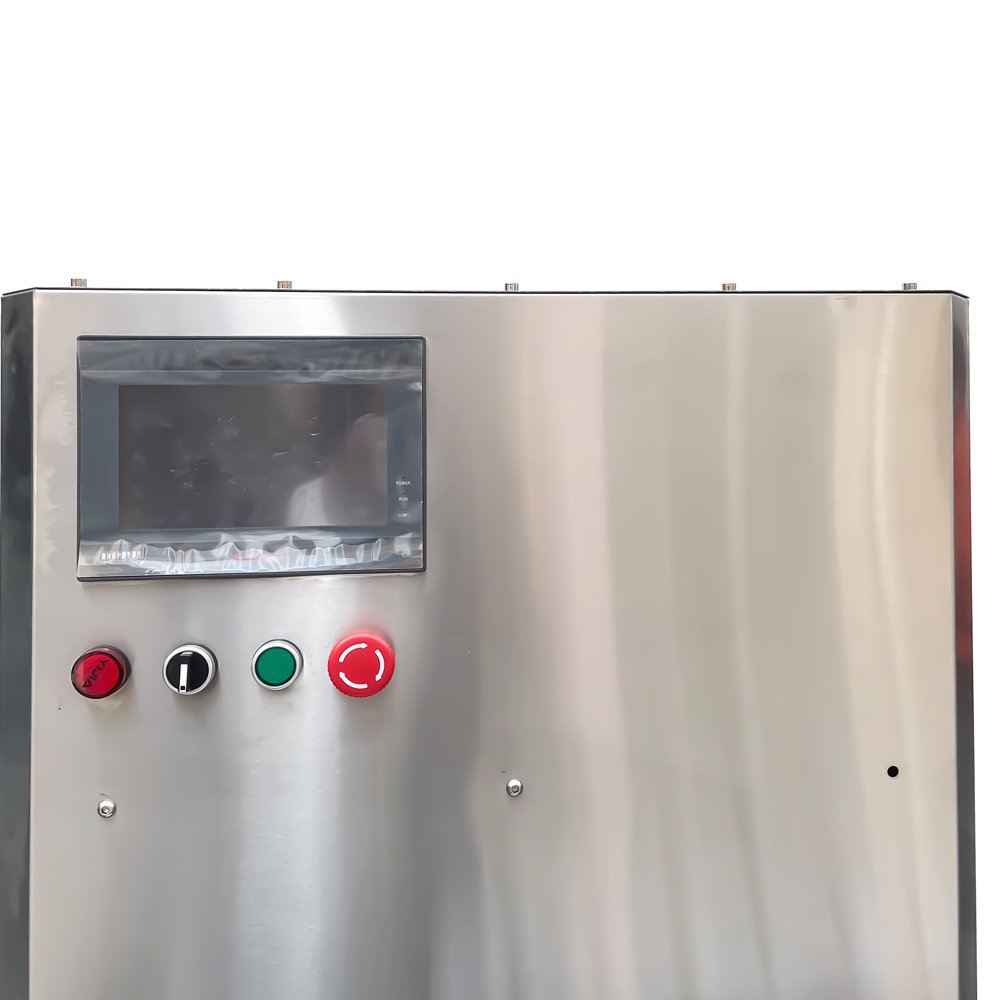

PLC intelligent control panel
Touch screen one click operation, intuitive and adjustable parameters, integrated start stop, speed regulation, and counting, easy to understand operation, and more stable automation control of the whole machine

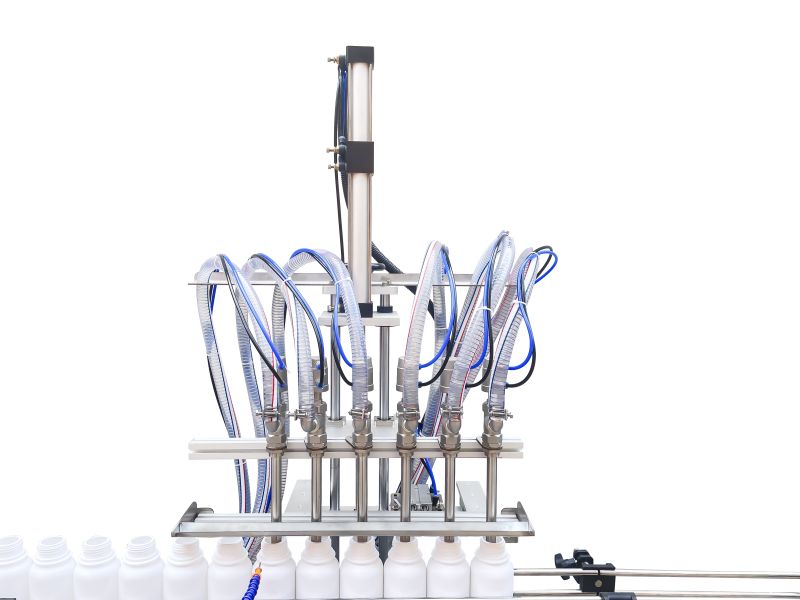

Lift filling machine
Independently controlled filling, convenient flow adjustment, stable and leak free, suitable for quantitative packaging of various bottle types, high filling efficiency, clean and hygienic

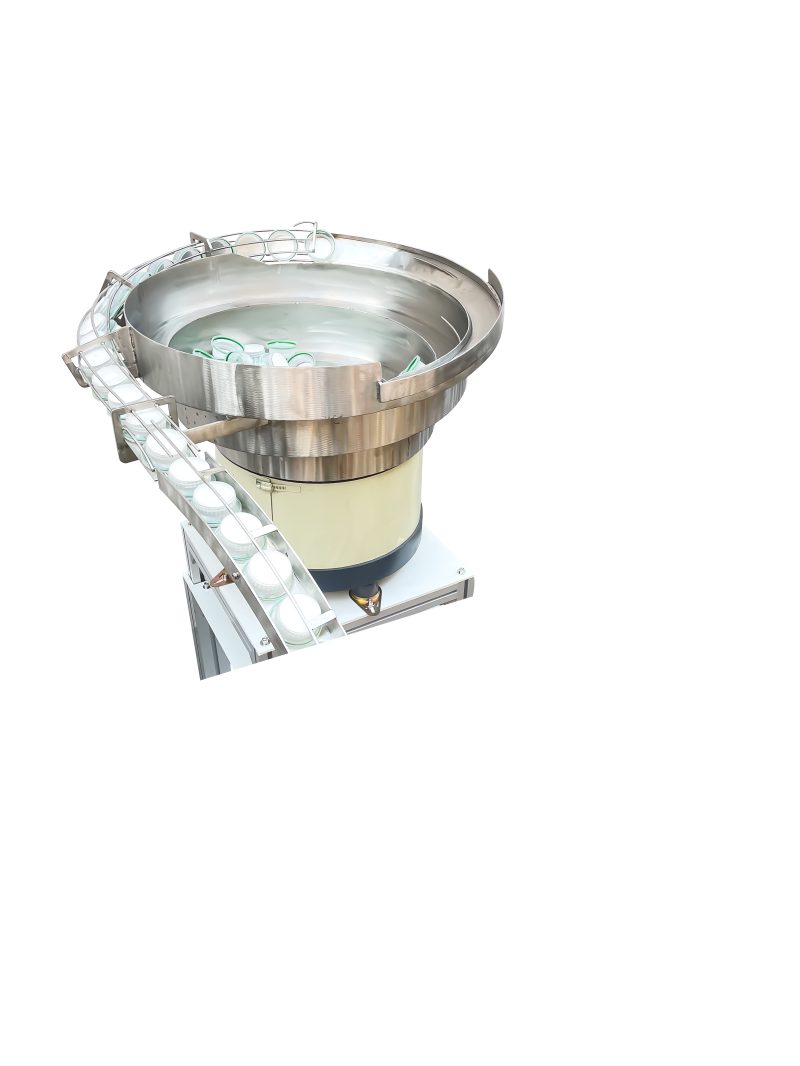

Vibration disk cover selection
High frequency stable vibration feeding, automatic sorting and capping, smooth feeding without jamming, suitable for orderly feeding of various bottle caps, efficient and worry free

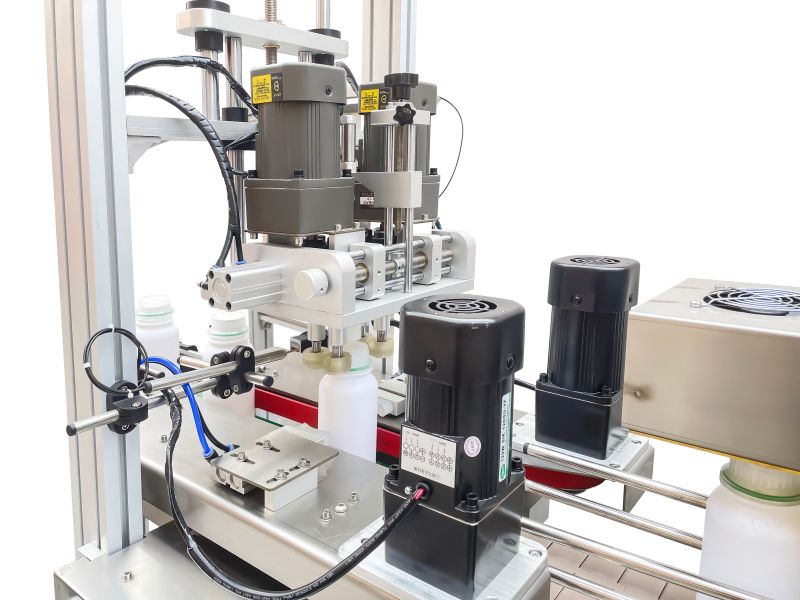

Automatic capping machine
Continuous and efficient capping, stable torque without damaging the cap, strong adaptability to bottle shapes, suitable for various bottle caps, firm and beautiful sealing

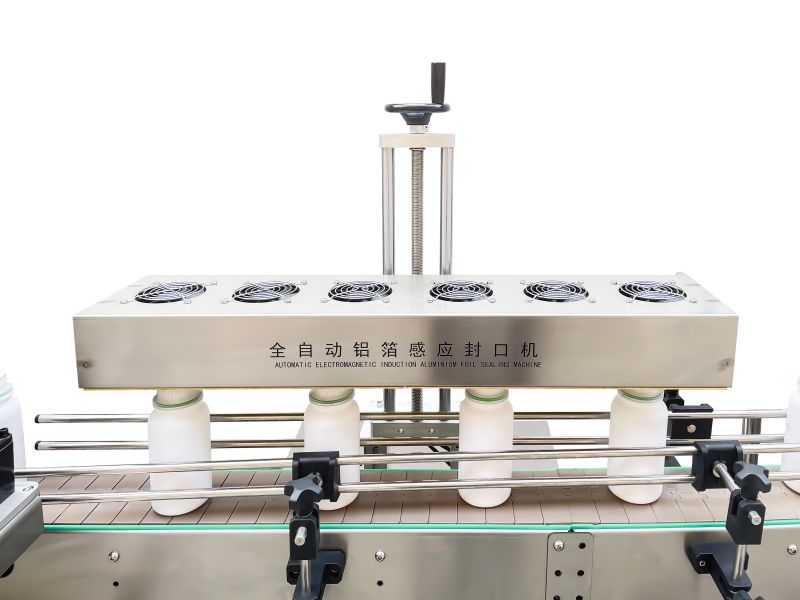

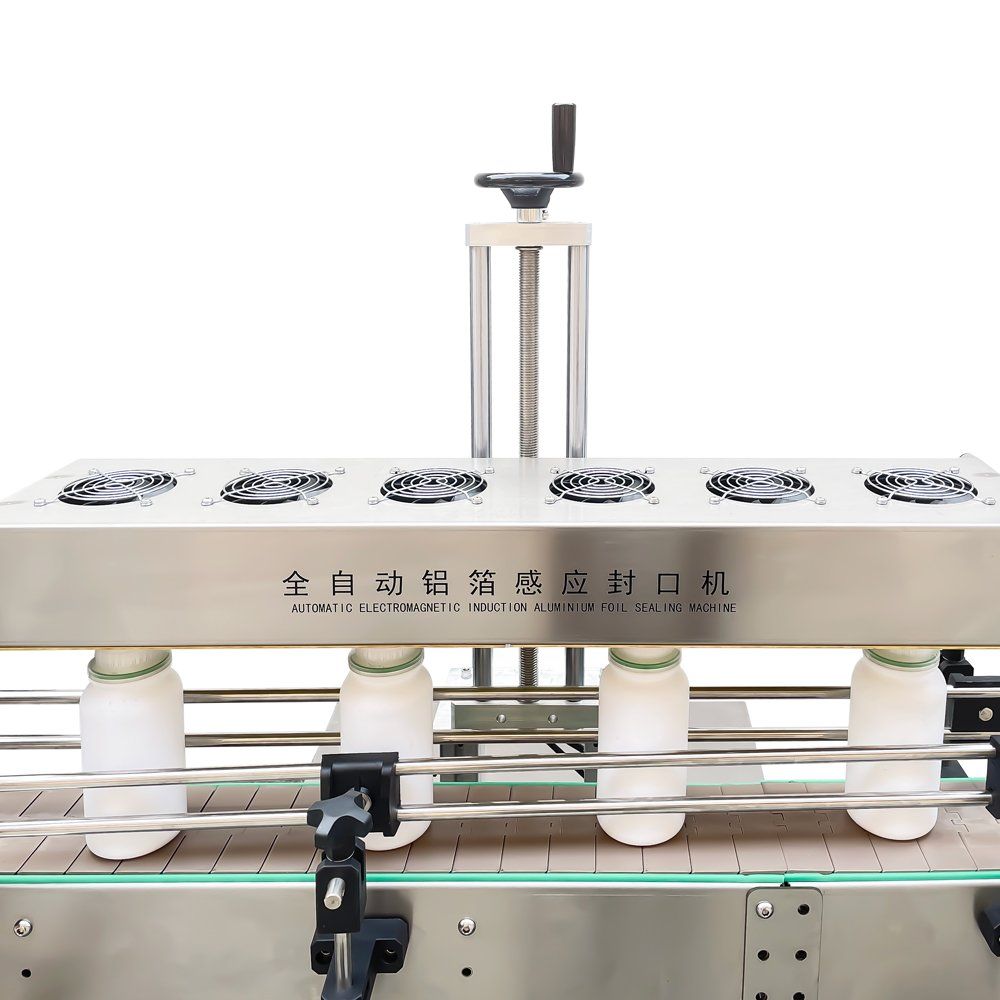

Aluminum foil sealing machine
Electromagnetic induction sealing, tightly sealed without air leakage, moisture-proof, leak proof, tamper proof, suitable for various bottle mouth aluminum foil sealing, fast and firm sealing
APPLICATIONS
Where this model fits
Suitable products & containers
8-head fillingScrew cappingLabellingHeat shrinkFinished packs
Container change means nozzle, rail and gripper change. Send your bottle or pouch and we re-test on it before you order.
Selection note
A fit for retail-ready bottles that need a sleeve or a tamper-evident neck band. Four stations on one conveyor reduce handling and the floor space a separate line would need.
CONTAINER REFERENCE
Packs this machine is tested with
Reference packs from the MachProof test library, showing the container families this model is set up for. Your own bottle, jar or pouch is run on the machine before the configuration is fixed.
NEXT STEP
Send us your bottle and your product.
We run a test on this machine type with your container and material, then send the video, the weighing record and a quotation with the exact configuration.
