Semi-Automatic Single-Head Magnetic Pump Filler
Compact & Tabletop · Filling error: ±1% · Filling heads: 1 (customizable)
MACHPROOF
MP-125
MP-125
Semi-Automatic Single-Head Magnetic Pump Liquid Filling MachineEquipment name
±1%Filling error
1 (customizable)Number of filling heads
Compact & Tabletop
Semi-Automatic Single-Head Magnetic Pump Filler

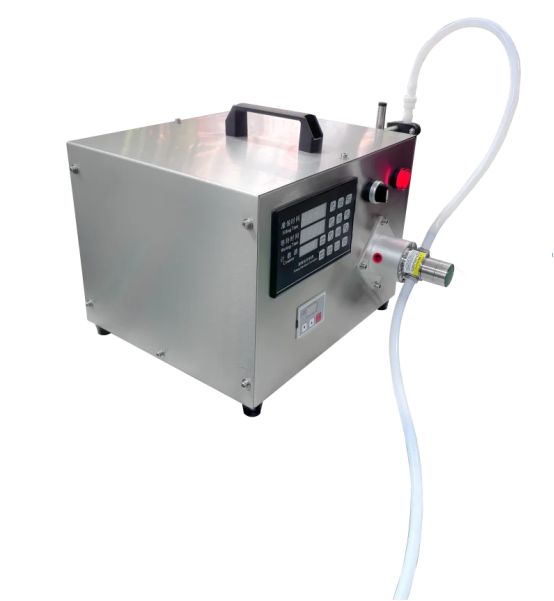

MP-125A bench-top single-head magnetic pump filler operated by a foot pedal. One dose per press, filling error ±1%, single-phase power — a practical machine for samples, small batches and new products.
- Equipment nameSemi-Automatic Single-Head Magnetic Pump Liquid Filling Machine
- Filling error±1%
- Number of filling heads1 (customizable)
- Filling speedcustomized according to production capacity
Final configuration is confirmed after a filling test with your material and container. Send the bottle, the cap and the product — we reply with a tested match and a quotation.
SPECIFICATION
Full technical data
Figures below are the catalogue values for this model. Anything marked “configured” or “customizable” is set from your sample during the test, and the final figures are written into the quotation.
| Equipment name | Semi-Automatic Single-Head Magnetic Pump Liquid Filling Machine |
|---|---|
| Filling error | ±1% |
| Number of filling heads | 1 (customizable) |
| Filling speed | customized according to production capacity |
| Power Supply | Single-phase AC220V 50Hz customizable |
| Equipment material | combination of stainless steel and aluminum |
| Applicable material | Suitable for filling particle-free, impurity-free, low-viscosity and slightly corrosive liquids, such as olive oil, peanut oil, beverages, perfumes, essences, glass water, etc. |
MACHINE DETAILS
Built detail by detail

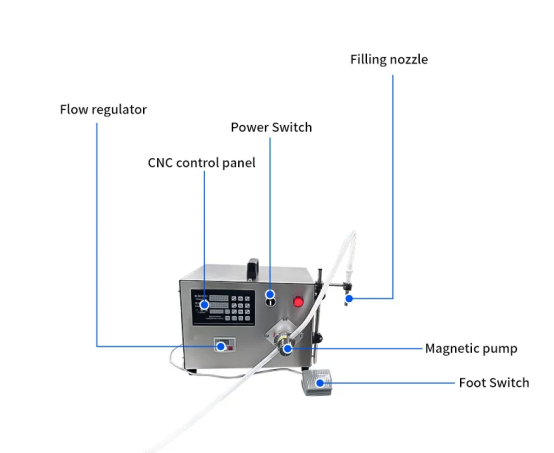

Construction notes published for this model by the factory — control panel, filling and capping stations, guarding and finish. Send your container and we confirm the same build on a test run.

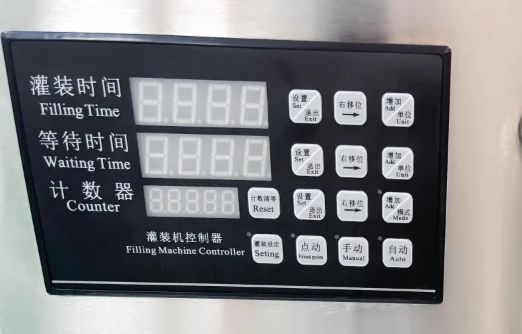

Computer Numerical Control
Adopts a CNC touch control panel, featuring intuitive and convenient operation, precise and stable parameter setting, and enabling digital adjustment of filling volume, speed, counting and other function

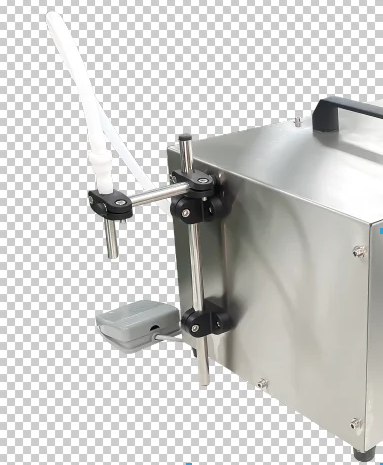

Filling head
Equipped with a vertically adjustable filling stand for free height adjustment, a foot pedal switch, optional foot-operated / manual dual modes, and compatibility with containers of various specifications.

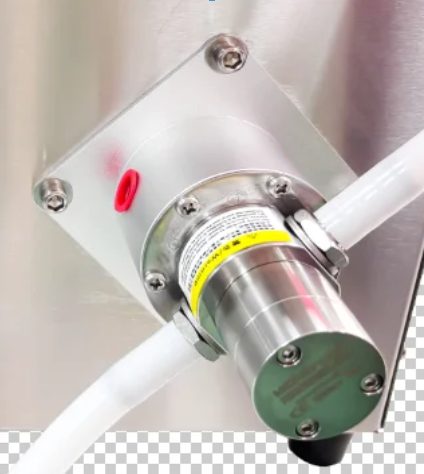

Magnetic drive pump
This equipment adopts a 316 magnetic pump with a stainless steel casing and internal gears made of PEEK material, which is a high-end pump type specially designed for filling machines, integrating hygiene, corrosion resistance and mechanical strength.

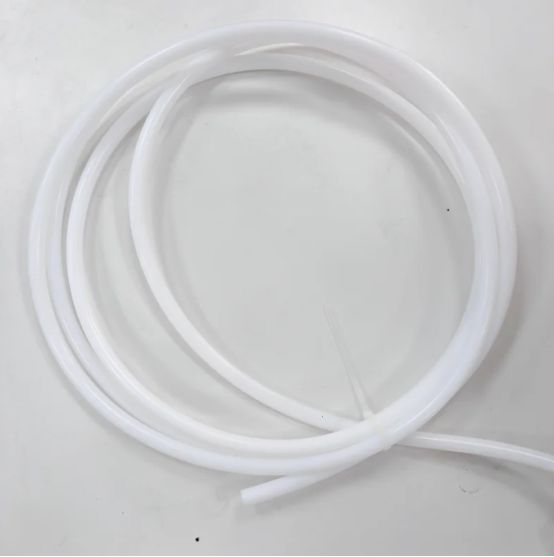

PTFE tube
PTFE tubing is a high-end corrosion-resistant material widely used in industrial fluid transportation. Other material tubing can also be equipped according to customer requirements.
APPLICATIONS
Where this model fits
Suitable products & containers
Bench-topFoot pedalSingle-phaseSamples & small batches±1% accuracy
Container change means nozzle, rail and gripper change. Send your bottle or pouch and we re-test on it before you order.
Selection note
The usual first machine for a new product: it takes a 220 V socket, fills bottles, tubes and small jars, and can be upgraded to a conveyor later without replacing the pump.
CONTAINER REFERENCE
Packs this machine is tested with
Reference packs from the MachProof test library, showing the container families this model is set up for. Your own bottle, jar or pouch is run on the machine before the configuration is fixed.
NEXT STEP
Send us your bottle and your product.
We run a test on this machine type with your container and material, then send the video, the weighing record and a quotation with the exact configuration.
