Device details
Support sample-based customization. Please contact customer service
Tabletop Magnetic Pump Liquid Filler
Compact & Tabletop · Filling error: ±1% · Filling heads: 1 (customizable)
MACHPROOF
MP-129
MP-129
Tabletop Single-Head Magnetic Pump Liquid Filling MachineEquipment name
±1%Filling error
1 (customizable)Number of filling heads
Compact & Tabletop
Tabletop Magnetic Pump Liquid Filler

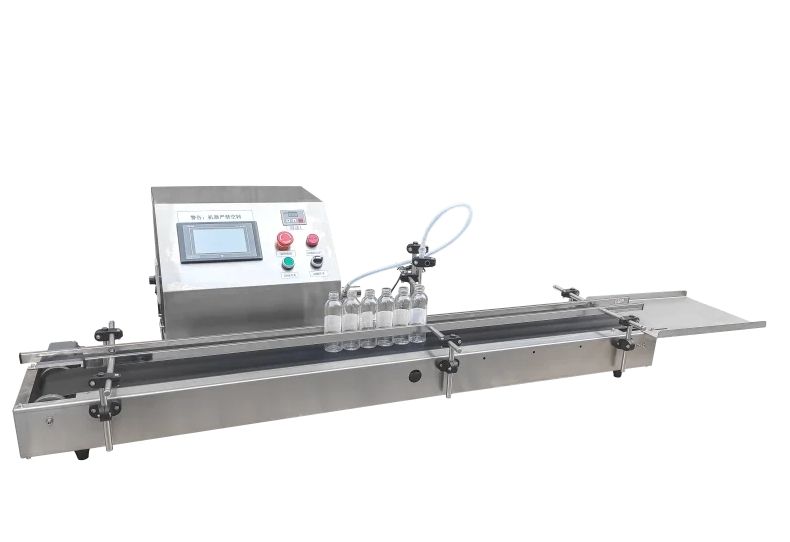

MP-129A tabletop magnetic pump filler with a built-in conveyor. The conveyor carries bottles past a single filling head, giving a steady rhythm without an operator holding each bottle.
- Equipment nameTabletop Single-Head Magnetic Pump Liquid Filling Machine
- Filling error±1%
- Number of filling heads1 (customizable)
- Filling speedcustomized according to production capacity
Final configuration is confirmed after a filling test with your material and container. Send the bottle, the cap and the product — we reply with a tested match and a quotation.
SPECIFICATION
Full technical data
Figures below are the catalogue values for this model. Anything marked “configured” or “customizable” is set from your sample during the test, and the final figures are written into the quotation.
| Equipment name | Tabletop Single-Head Magnetic Pump Liquid Filling Machine |
|---|---|
| Filling error | ±1% |
| Number of filling heads | 1 (customizable) |
| Filling speed | customized according to production capacity |
| Power Supply | Single-phase AC220V 50Hz customizable |
| Equipment material | combination of stainless steel and aluminum |
| Applicable material | No particles or impurities, low viscosity and slightly corrosive liquid. |
MACHINE DETAILS
Built detail by detail
Construction notes published for this model by the factory — control panel, filling and capping stations, guarding and finish. Send your container and we confirm the same build on a test run.

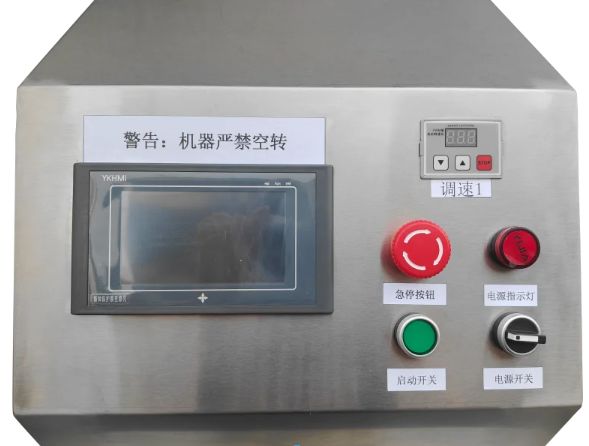

PLC touch panel
Stainless steel casing, integrated touch screen and control buttons, compatible with filling lines and other equipment, safe and durable, easy to operate.

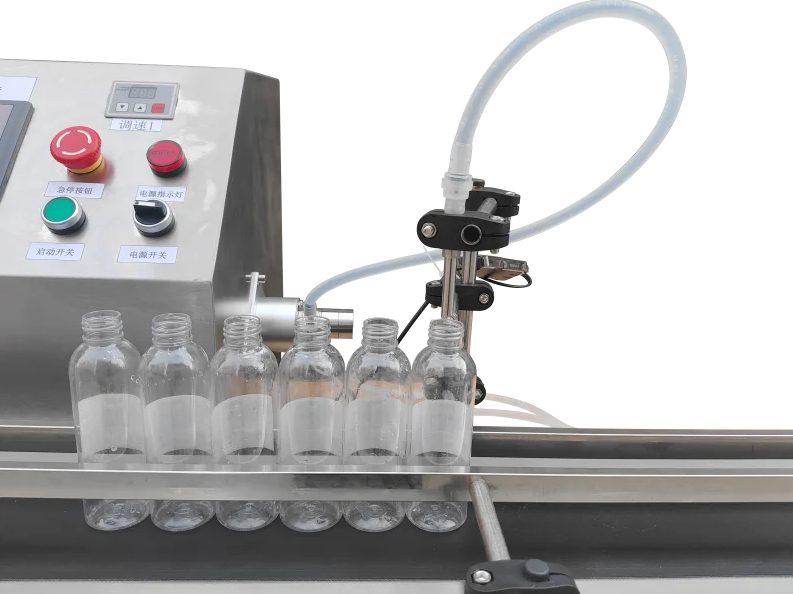

Filling head
Direct current filling features fast speed, stable operation, easy adjustment, high filling accuracy, no dripping, and simple cleaning & maintenance.

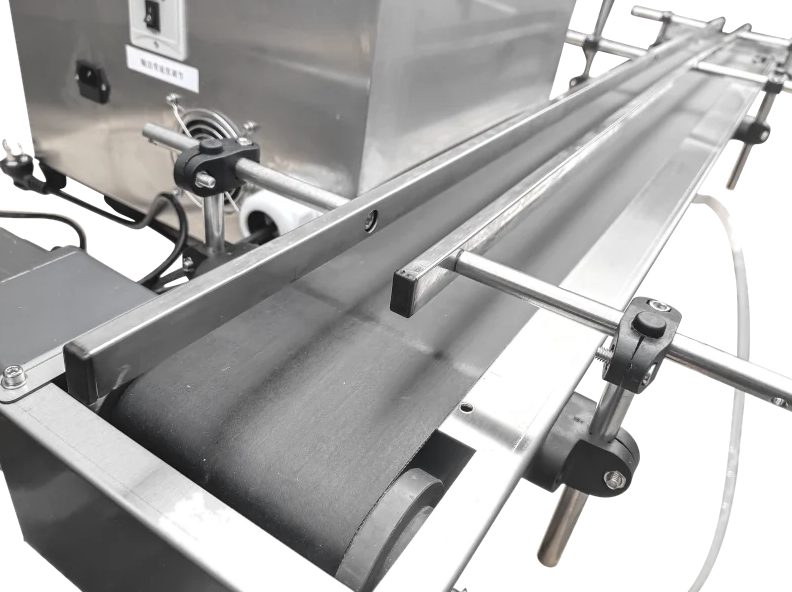

Belt conveyor
High flexibility and adjustability; flat and smooth conveying surface with stable operation; easy installation, low maintenance cost and long service life.
APPLICATIONS
Where this model fits
Suitable products & containers
TabletopBuilt-in conveyorLow-viscosity liquidsSlightly corrosive liquidsSmall line
Container change means nozzle, rail and gripper change. Send your bottle or pouch and we re-test on it before you order.
Selection note
A step up from the pedal machine: the conveyor sets the pace and the same frame can later take a capping head, so the investment grows with the product.
CONTAINER REFERENCE
Packs this machine is tested with
Reference packs from the MachProof test library, showing the container families this model is set up for. Your own bottle, jar or pouch is run on the machine before the configuration is fixed.
NEXT STEP
Send us your bottle and your product.
We run a test on this machine type with your container and material, then send the video, the weighing record and a quotation with the exact configuration.
