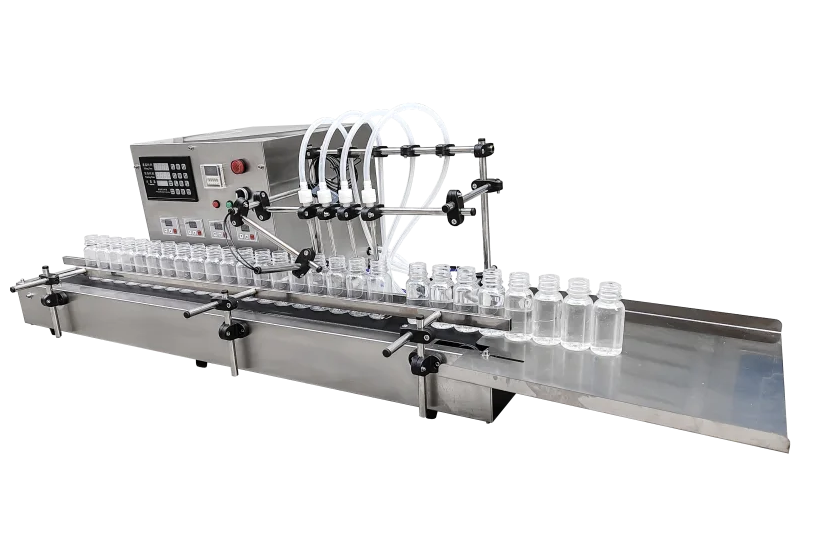

Tabletop 4-Head Gear Pump Filler
Compact & Tabletop · Filling error: ±1% · Filling heads: 4 (customizable)
MACHPROOF
MP-143
MP-143
Tabletop 4-Head Gear Pump Liquid Filling MachineEquipment name
±1%Filling error
4 (customizable)Number of filling heads
Compact & Tabletop
Tabletop 4-Head Gear Pump Filler
MP-143A tabletop four-head gear pump filler for viscous products that need a positive-displacement pump. Four heads on a bench frame give a steady dose of creams, oils and pastes at ±1%.
- Equipment nameTabletop 4-Head Gear Pump Liquid Filling Machine
- Filling error±1%
- Number of filling heads4 (customizable)
- Filling speedcustomized according to production capacity
Final configuration is confirmed after a filling test with your material and container. Send the bottle, the cap and the product — we reply with a tested match and a quotation.
SPECIFICATION
Full technical data
Figures below are the catalogue values for this model. Anything marked “configured” or “customizable” is set from your sample during the test, and the final figures are written into the quotation.
| Equipment name | Tabletop 4-Head Gear Pump Liquid Filling Machine |
|---|---|
| Filling error | ±1% |
| Number of filling heads | 4 (customizable) |
| Filling speed | customized according to production capacity |
| Applicable air source | 0.4-0.6MPA |
| Power Supply | Single-phase AC220V 50Hz customizable |
| Equipment material | combination of stainless steel and aluminum |
| Applicable material | Free of particles, impurities and gas, suitable for non-corrosive pure aqueous liquids. |

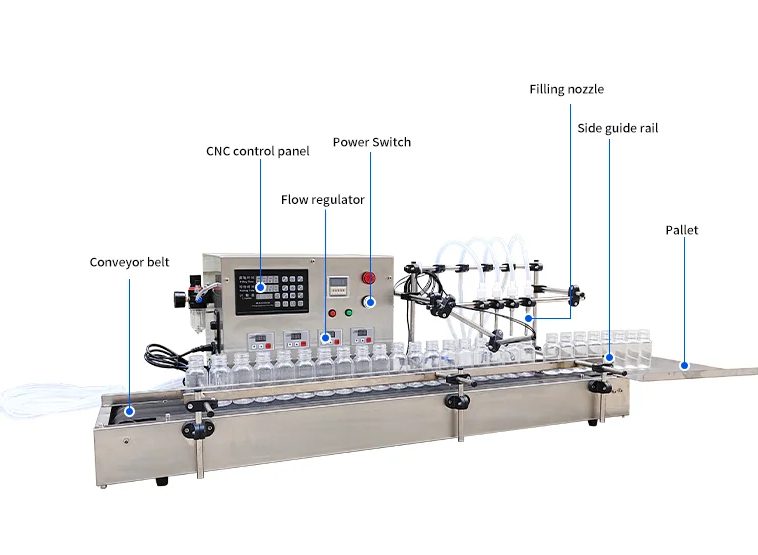

MACHINE DETAILS
Built detail by detail
Construction notes published for this model by the factory — control panel, filling and capping stations, guarding and finish. Send your container and we confirm the same build on a test run.

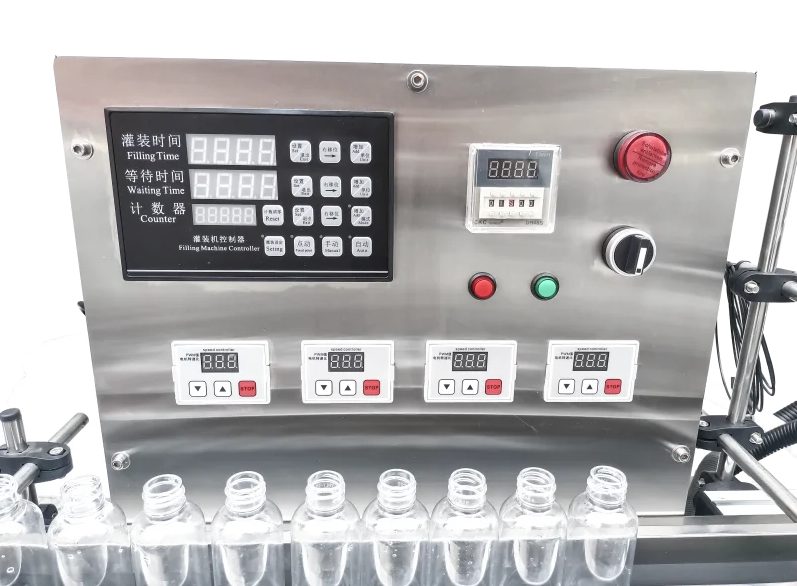

Computer Numerical Control
Adopts a CNC touch control panel, featuring intuitive and convenient operation, precise and stable parameter setting, and enabling digital adjustment of filling volume, speed, counting and other functions..

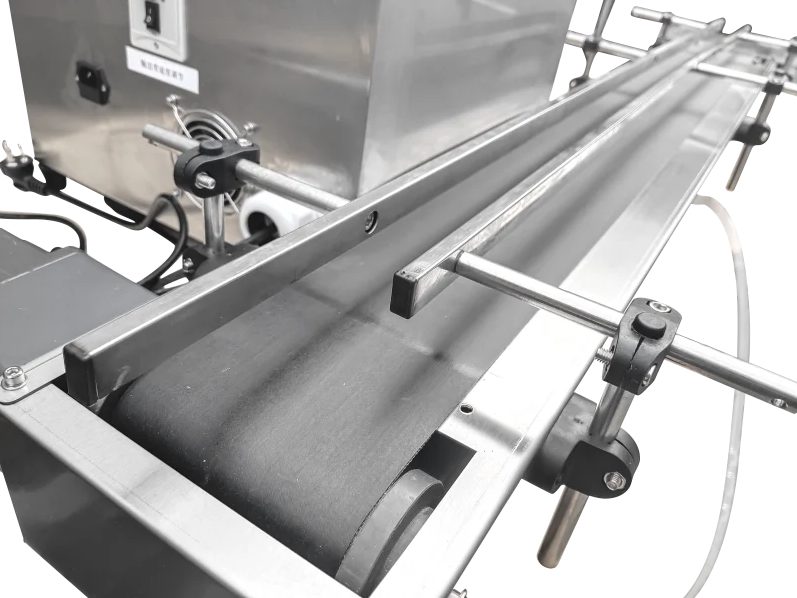

Belt conveyor
High flexibility and adjustability; flat and smooth conveying surface with stable operation; easy installation, low maintenance cost and long service life.
Filling head
Direct current filling features fast speed, stable operation, easy adjustment, high filling accuracy, no dripping, and simple cleaning & maintenance.
APPLICATIONS
Where this model fits
Suitable products & containers
4 filling headsGear pumpViscous productsCreams & pastesTabletop
Container change means nozzle, rail and gripper change. Send your bottle or pouch and we re-test on it before you order.
Selection note
The gear pump holds its dose as viscosity changes, which makes this model steadier than a magnetic pump on creams, oils and thick pastes.
CONTAINER REFERENCE
Packs this machine is tested with
Reference packs from the MachProof test library, showing the container families this model is set up for. Your own bottle, jar or pouch is run on the machine before the configuration is fixed.
NEXT STEP
Send us your bottle and your product.
We run a test on this machine type with your container and material, then send the video, the weighing record and a quotation with the exact configuration.
