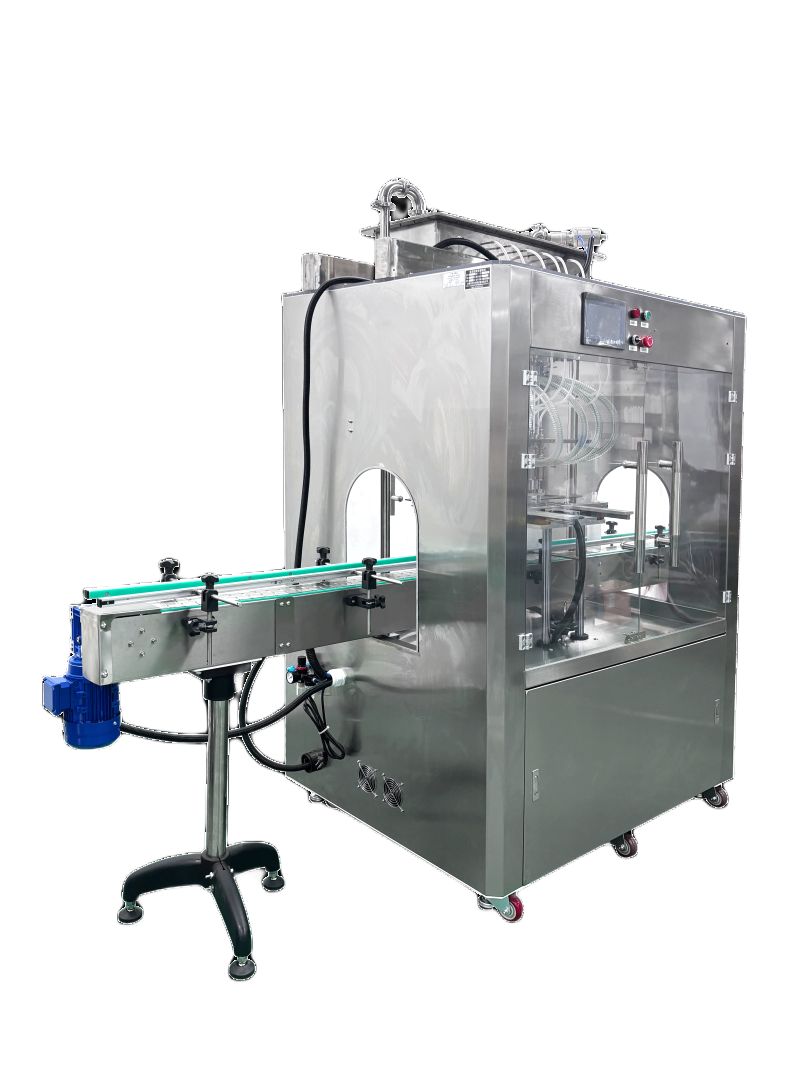

Device details
Support sample-based customization. Please contact customer service

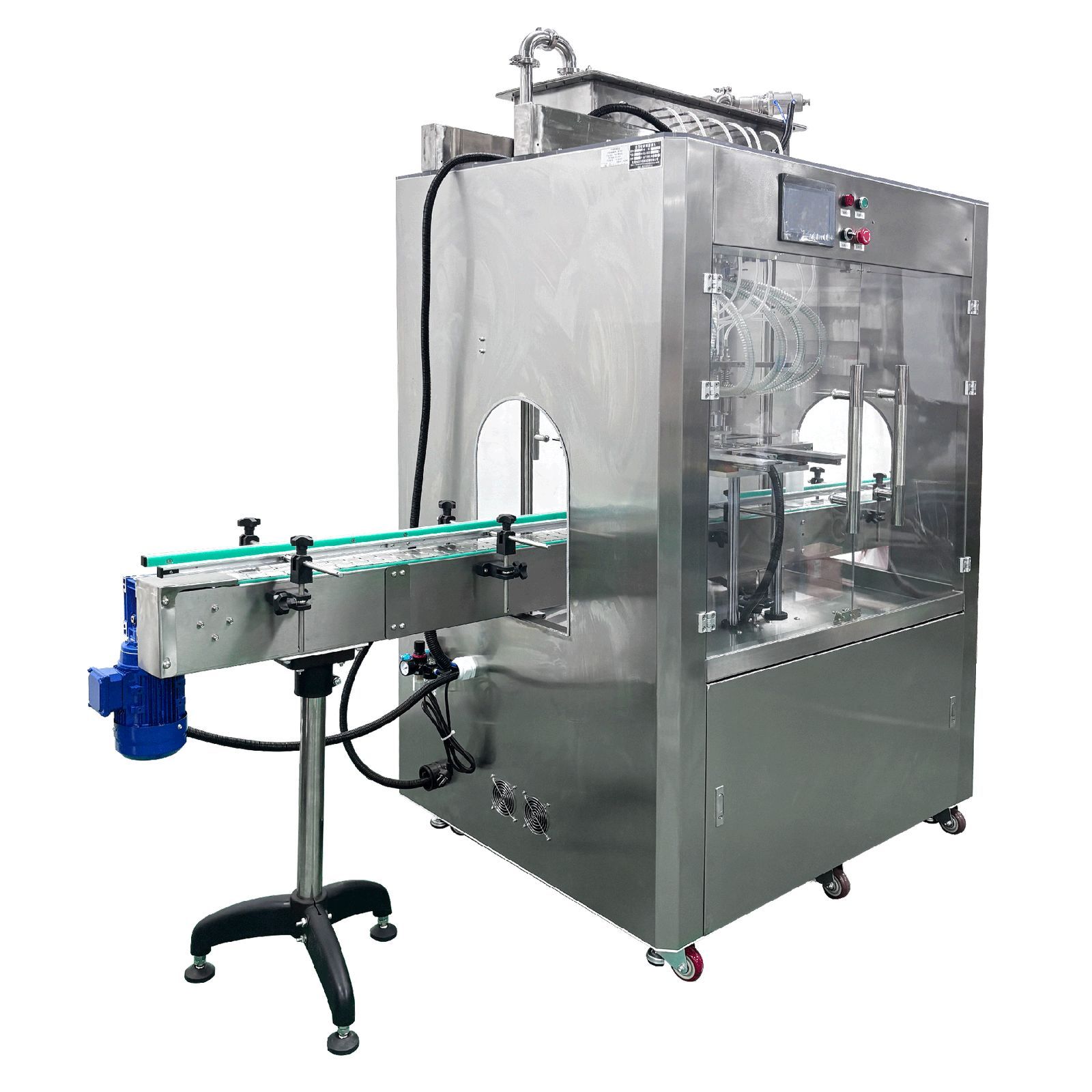

6-Head Negative Pressure Filler
Filling Machine · Filling error: ±1% · Filling heads: 6 (customizable)
MACHPROOF
MP-102
MP-102
Automatic Six-Head Negative Pressure Filling MachineEquipment name
±1%Filling error
6 (customizable)Number of filling heads
Filling Machines
6-Head Negative Pressure Filler
MP-102Six-head negative pressure filling for thin, foam-prone or oxidation-sensitive liquids. Because the product is drawn into the bottle under vacuum rather than pushed through a nozzle, foaming is suppressed and the fill level stays consistent.
- Equipment nameAutomatic Six-Head Negative Pressure Filling Machine
- Filling error±1%
- Number of filling heads6 (customizable)
- Filling speedcustomized according to production capacity
Final configuration is confirmed after a filling test with your material and container. Send the bottle, the cap and the product — we reply with a tested match and a quotation.
SPECIFICATION
Full technical data
Figures below are the catalogue values for this model. Anything marked “configured” or “customizable” is set from your sample during the test, and the final figures are written into the quotation.
| Equipment name | Automatic Six-Head Negative Pressure Filling Machine |
|---|---|
| Filling error | ±1% |
| Number of filling heads | 6 (customizable) |
| Filling speed | customized according to production capacity |
| Applicable air source | 0.4-0.6MPA |
| Equipment material | combination of stainless steel and aluminum |
| Applicable material | Liquids with low viscosity, no particles, no gas, easy foaming or easy oxidation |
MACHINE DETAILS
Built detail by detail
Construction notes published for this model by the factory — control panel, filling and capping stations, guarding and finish. Send your container and we confirm the same build on a test run.

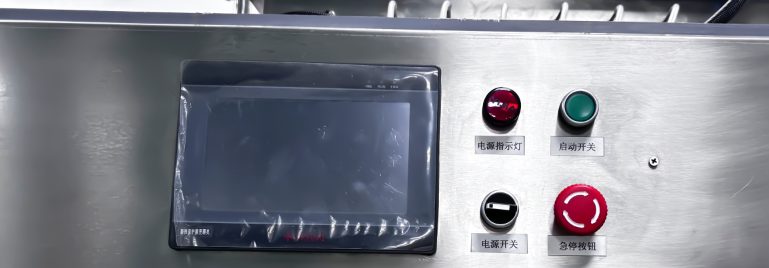

PLC touch panel
Stainless steel casing, integrated touch screen and control buttons, compatible with filling lines and other equipment, safe and durable, easy to operate

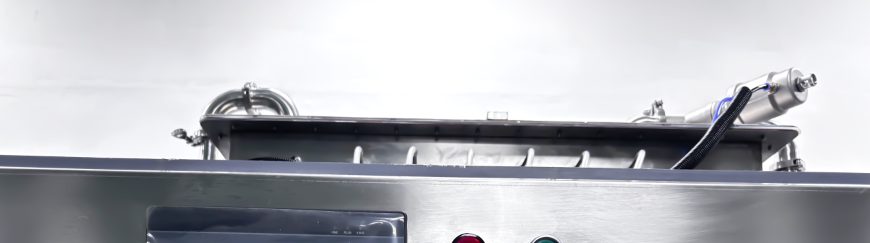

Storage tank
The tank stores materials and maintains normal pressure or slight positive pressure. The pressure difference can be used to press materials from the tank into bottles.

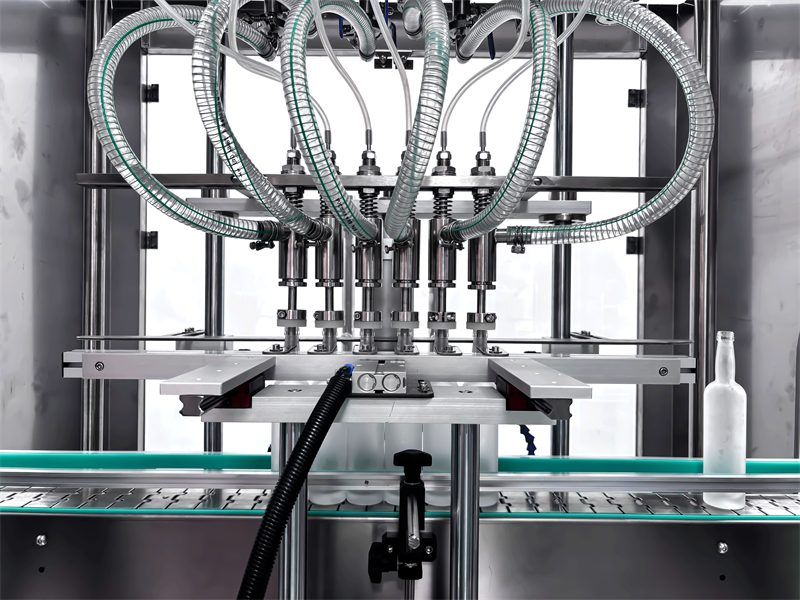

Precision filling, no drips or leaks
Stable filling, no bubbles / less foam; high liquid level accuracy (liquid level determined by the return suction tube opening), bottle capacity manufacturing errors can be ignored
APPLICATIONS
Where this model fits
Suitable products & containers
Low-viscosity liquidsFoam-prone productsOxidation-sensitive productsBeveragesPharmaceutical liquids
Container change means nozzle, rail and gripper change. Send your bottle or pouch and we re-test on it before you order.
Selection note
The right choice when foam is the bottleneck. Vacuum filling also keeps dissolved oxygen low, which matters for juices, oral liquids and other oxidation-sensitive products.
CONTAINER REFERENCE
Packs this machine is tested with
Reference packs from the MachProof test library, showing the container families this model is set up for. Your own bottle, jar or pouch is run on the machine before the configuration is fixed.
RELATED PRODUCTS
More machines in this range
NEXT STEP
Send us your bottle and your product.
We run a test on this machine type with your container and material, then send the video, the weighing record and a quotation with the exact configuration.
