Device details
Support sample-based customization. Please contact customer service
Automatic Aluminium Foil Sealer
Sealing Machine · Sealing error: ±1% · Sealing speed: Configured to your capacity
MACHPROOF
MP-107
MP-107
Aluminum foil sealingEquipment name
± 1%Sealing error
customized according to production capacitySealing speed
Sealing Machines

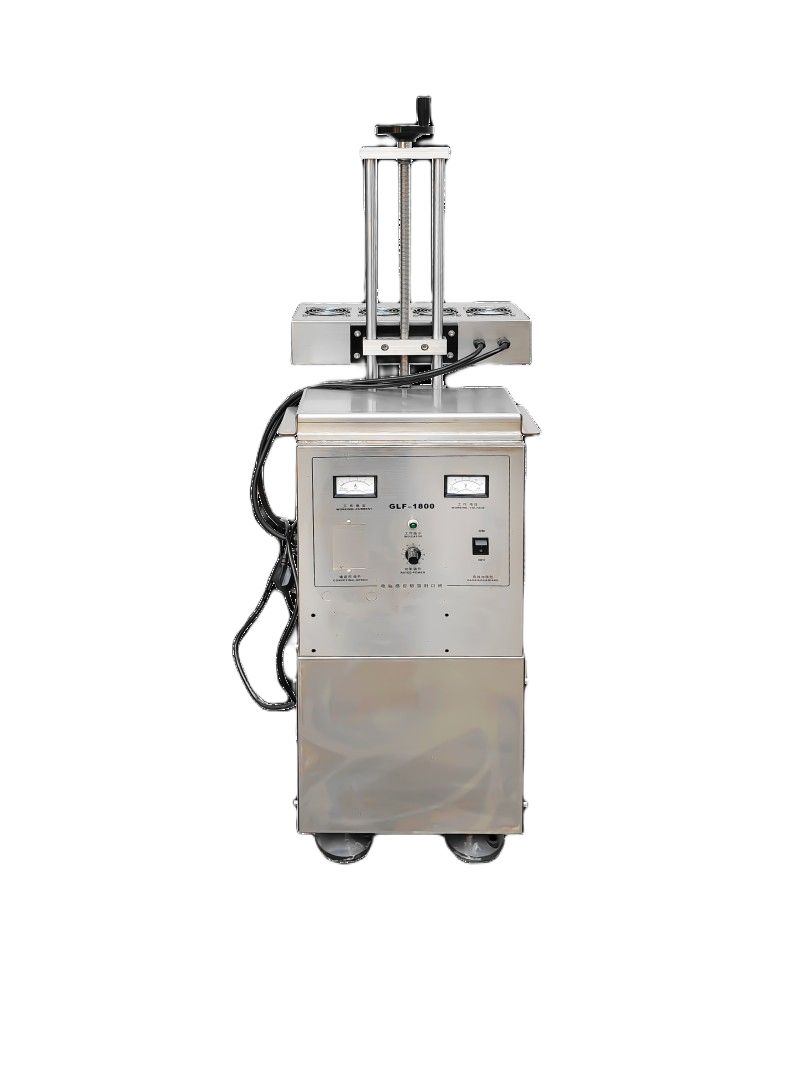

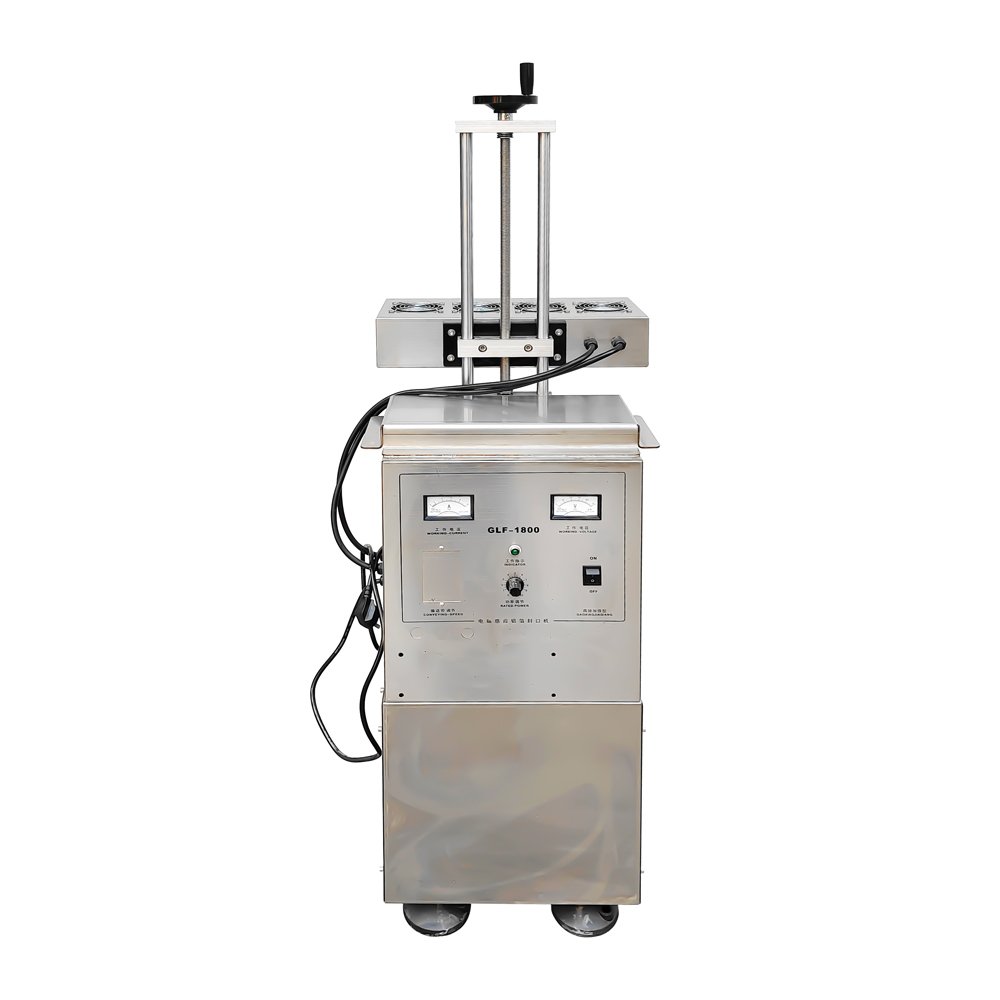

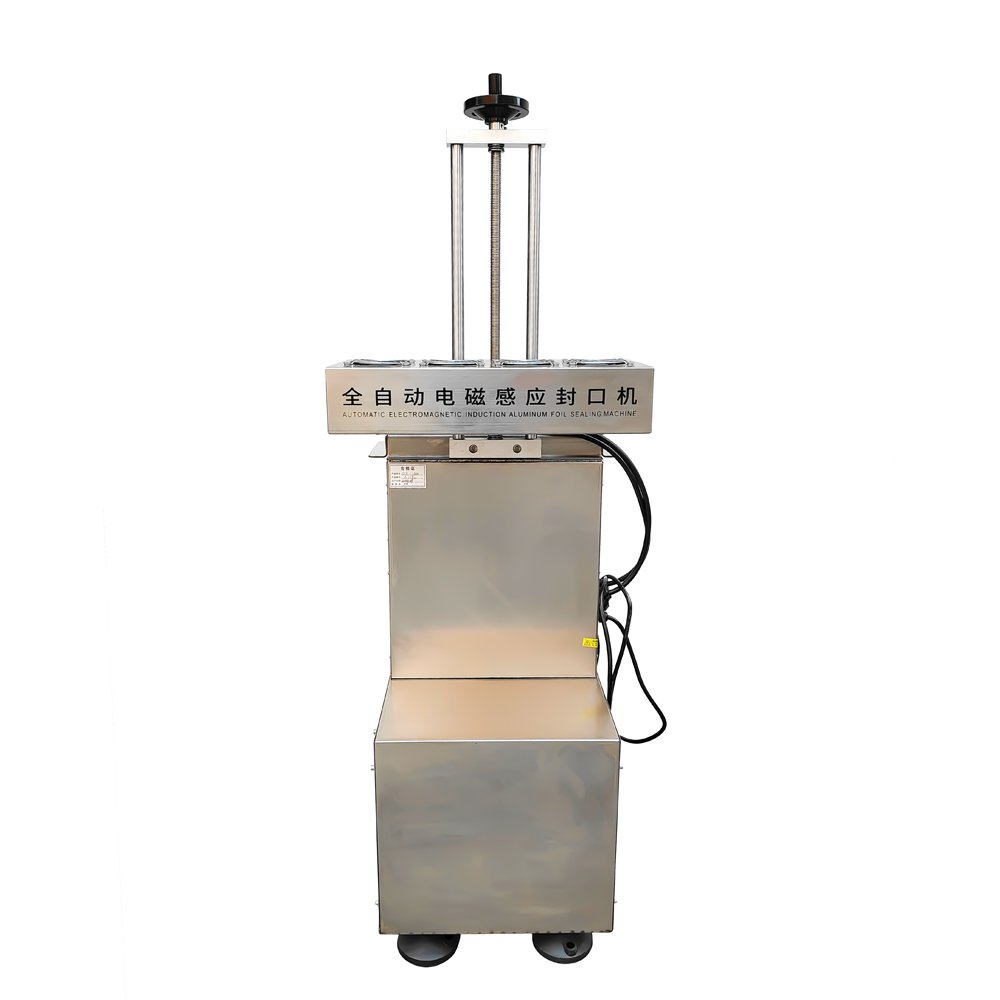

Automatic Aluminium Foil Sealer
MP-107An induction sealer that bonds an aluminium foil liner to the bottle mouth after capping. It runs inline with the filling machine and seals PP, PE, PET and glass bottles without contact with the product.
- Equipment nameAluminum foil sealing
- Sealing error± 1%
- Sealing speedcustomized according to production capacity
- Equipment materialcombination of stainless steel and aluminum
Final configuration is confirmed after a filling test with your material and container. Send the bottle, the cap and the product — we reply with a tested match and a quotation.
SPECIFICATION
Full technical data
Figures below are the catalogue values for this model. Anything marked “configured” or “customizable” is set from your sample during the test, and the final figures are written into the quotation.
| Equipment name | Aluminum foil sealing |
|---|---|
| Sealing error | ± 1% |
| Sealing speed | customized according to production capacity |
| Equipment material | combination of stainless steel and aluminum |
| Applicable gas source | 0.4-0.6MPA |
| Equipment power supply | 220V/50HZ |
MACHINE DETAILS
Built detail by detail
Construction notes published for this model by the factory — control panel, filling and capping stations, guarding and finish. Send your container and we confirm the same build on a test run.
Aluminum foil sealing machine
Electromagnetic induction sealing, tightly sealed without air leakage, moisture-proof, leak proof, tamper proof, suitable for various bottle mouth aluminum foil sealing, fast and firm sealing
APPLICATIONS
Where this model fits
Suitable products & containers
Induction sealingPP bottlesPE bottlesPET bottlesGlass bottles
Container change means nozzle, rail and gripper change. Send your bottle or pouch and we re-test on it before you order.
Selection note
The sealing head is matched to your cap diameter. Output follows the conveyor speed, so the sealer is sized from your line rather than the other way round.
CONTAINER REFERENCE
Packs this machine is tested with
Reference packs from the MachProof test library, showing the container families this model is set up for. Your own bottle, jar or pouch is run on the machine before the configuration is fixed.
NEXT STEP
Send us your bottle and your product.
We run a test on this machine type with your container and material, then send the video, the weighing record and a quotation with the exact configuration.
