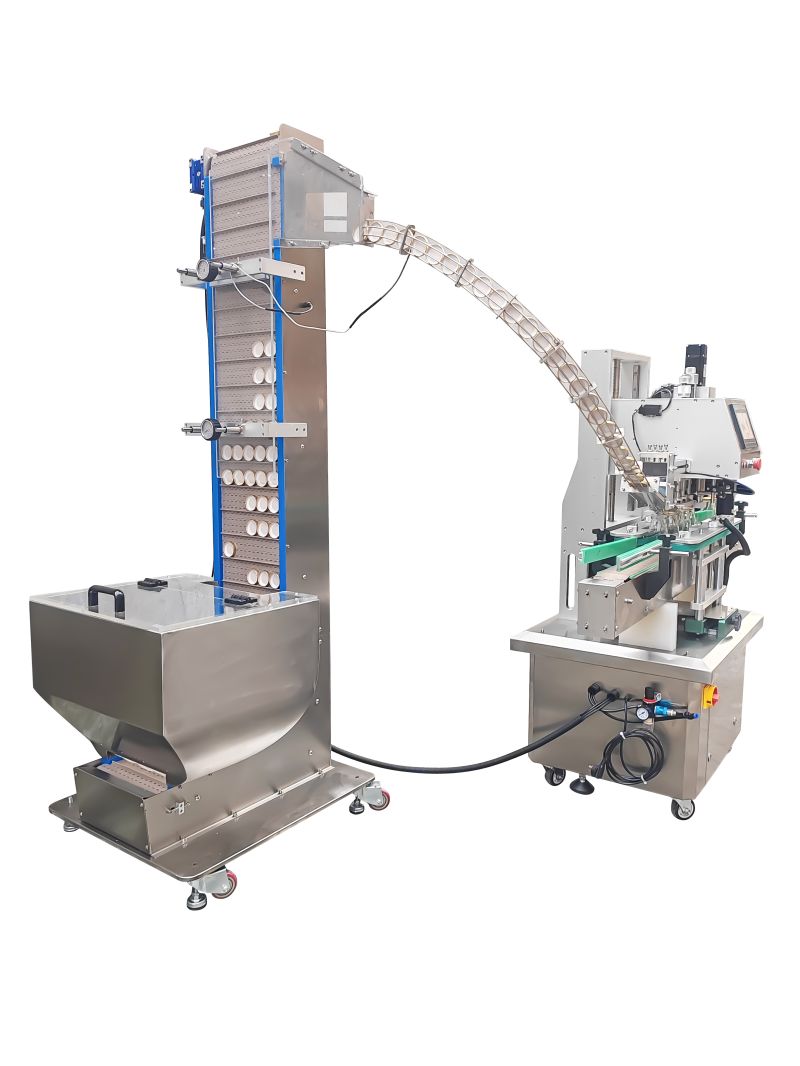

Device details
Support sample-based customization. Please contact customer service
Automatic Lifting & Servo Capping Line
Capping Machine · Locking error: ±1% · Speed: Configured to your capacity
MACHPROOF
MP-106
MP-106
Automatic lifting, capping and servo capping lineEquipment name
±1%Error
customized according to production capacitySpeed
Capping Machines
Automatic Lifting & Servo Capping Line

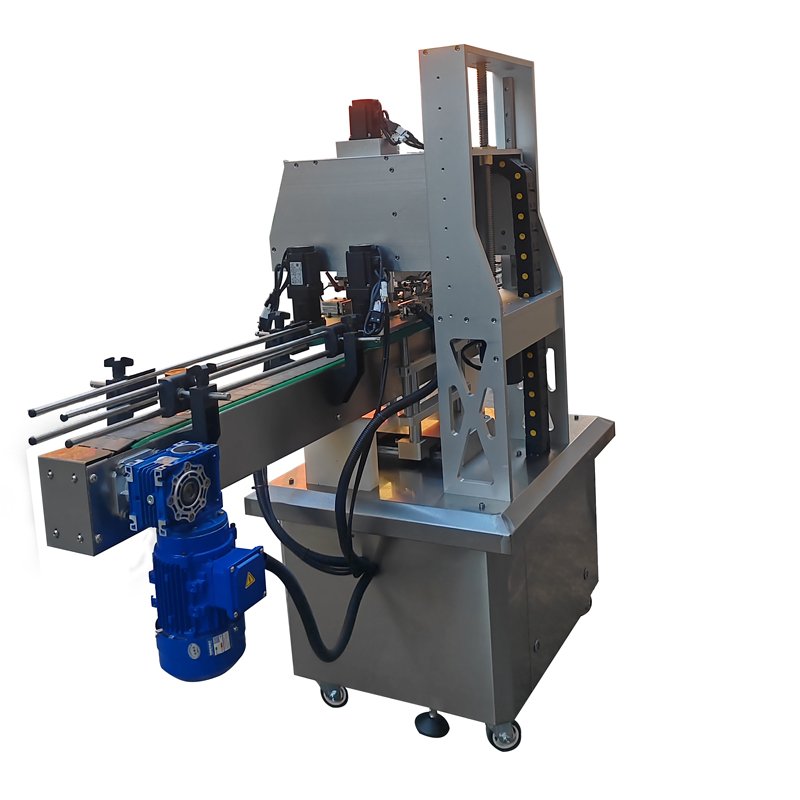

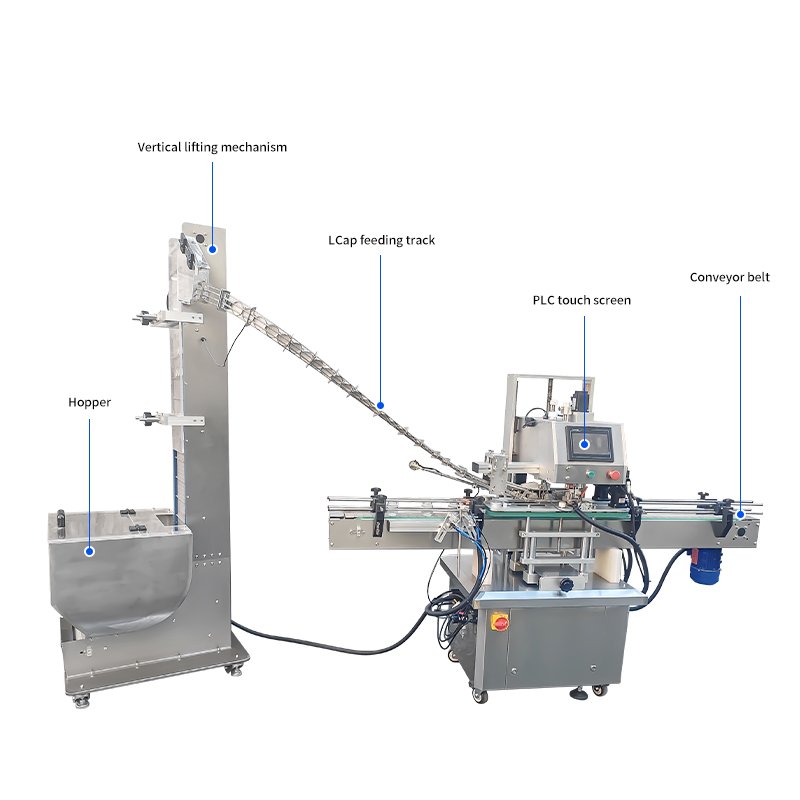

MP-106An automatic lifting and servo capping line that raises the cap hopper to the bottle height instead of lifting every bottle. Servo locking gives a repeatable torque across tamper-evident, pump, flip-top and screw caps.
- Equipment nameAutomatic lifting, capping and servo capping line
- Error±1%
- Speedcustomized according to production capacity
- Applicable air source0.4-0.6MPA
Final configuration is confirmed after a filling test with your material and container. Send the bottle, the cap and the product — we reply with a tested match and a quotation.
SPECIFICATION
Full technical data
Figures below are the catalogue values for this model. Anything marked “configured” or “customizable” is set from your sample during the test, and the final figures are written into the quotation.
| Equipment name | Automatic lifting, capping and servo capping line |
|---|---|
| Error | ±1% |
| Speed | customized according to production capacity |
| Applicable air source | 0.4-0.6MPA |
| Equipment material | Suitable for threaded caps (plastic/metal), tamper-evident caps, pump caps, flip-top caps and screw caps. |
MACHINE DETAILS
Built detail by detail
Construction notes published for this model by the factory — control panel, filling and capping stations, guarding and finish. Send your container and we confirm the same build on a test run.

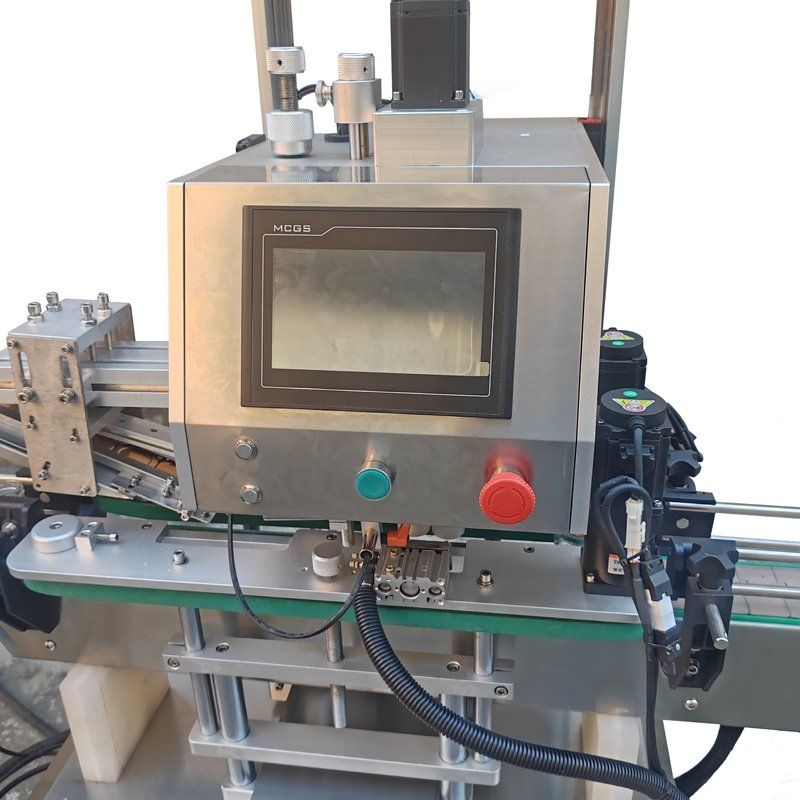

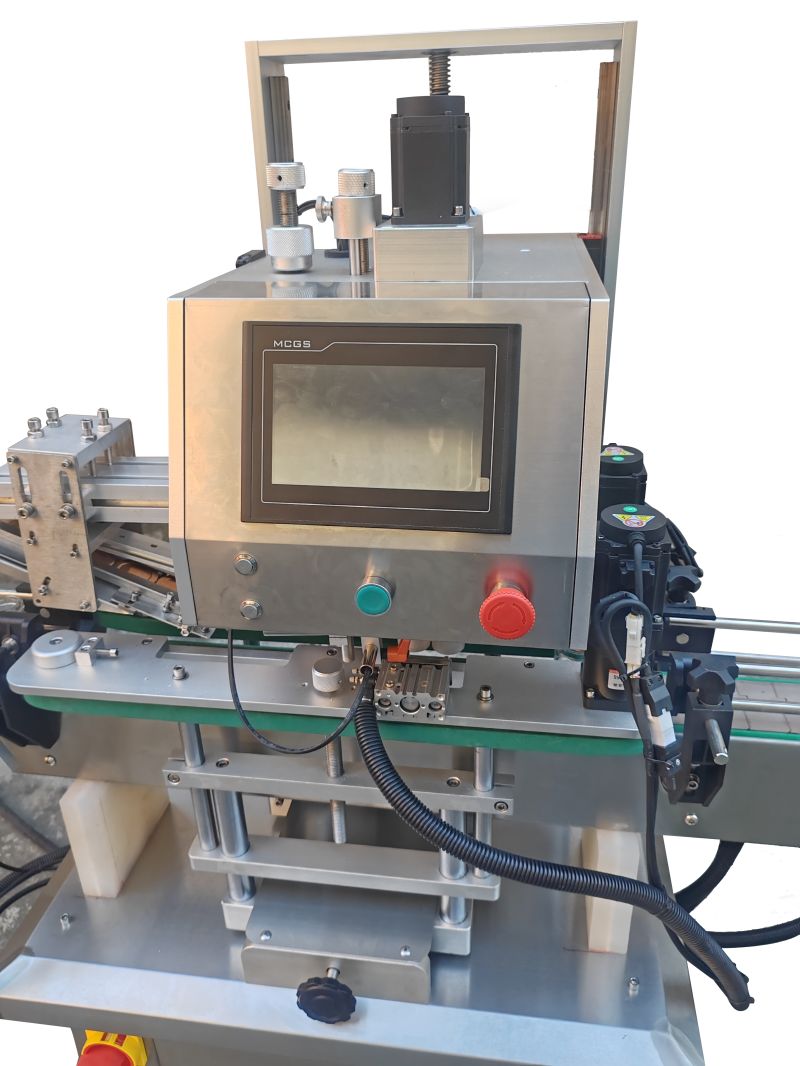

PLC touch panel
Stainless steel casing, integrated touch screen and control buttons, compatible with filling lines and other equipment, safe and durable, easy to operate.

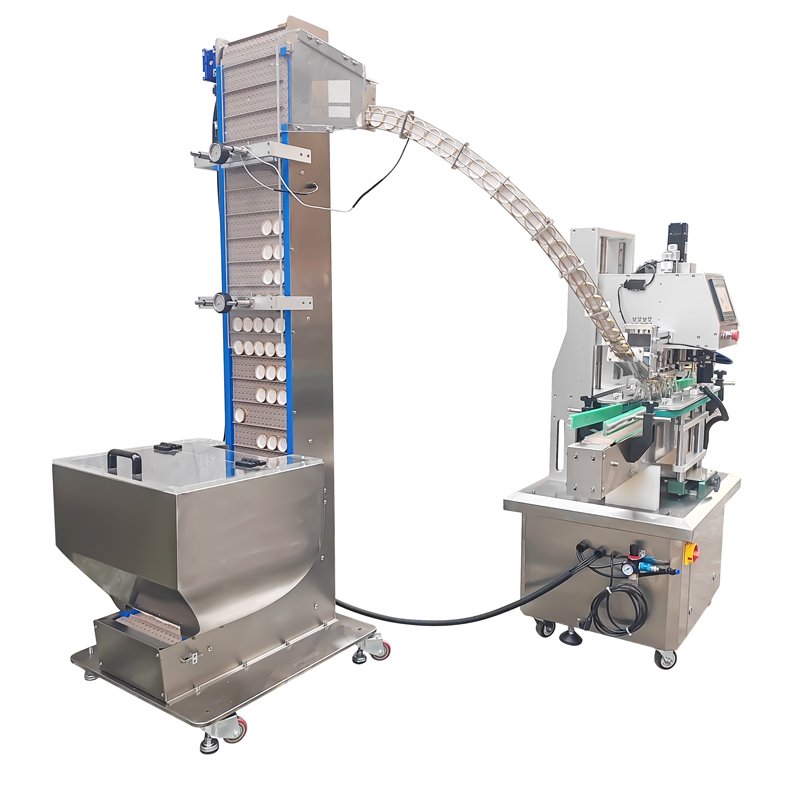

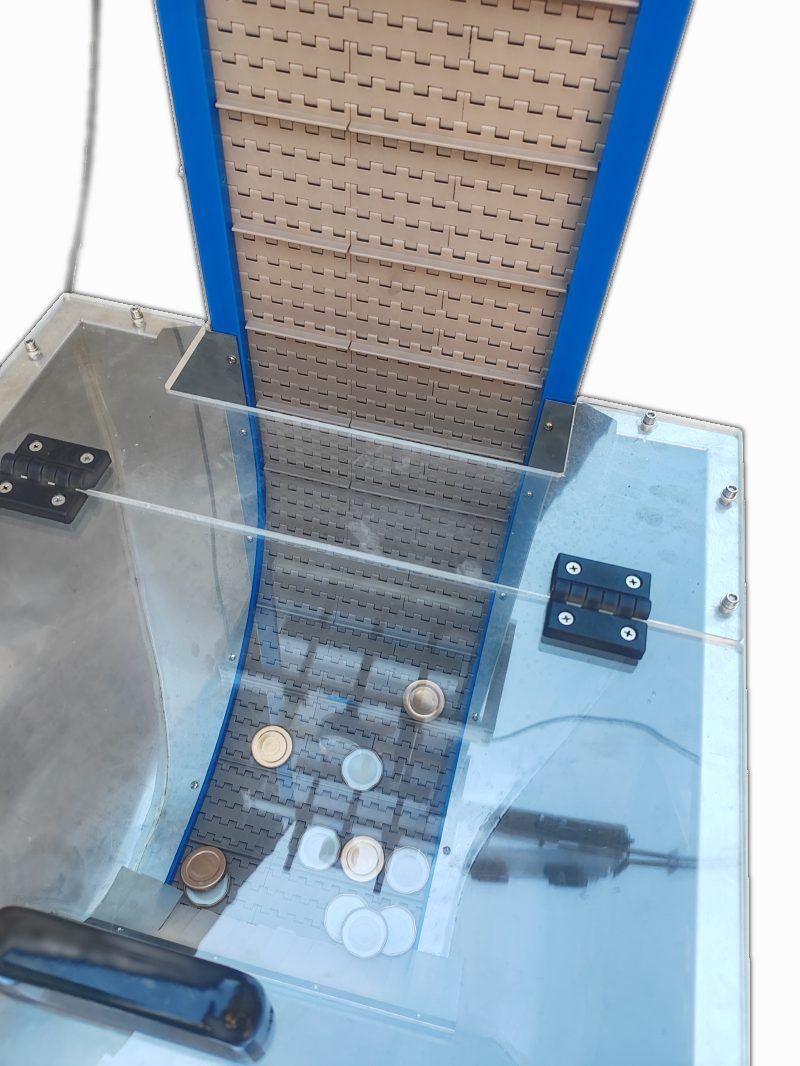

Automatic Lifting Cap Sorter
The chain belt climbing design realizes automatic sorting and orientation of bottle caps, avoiding jamming and flipping.

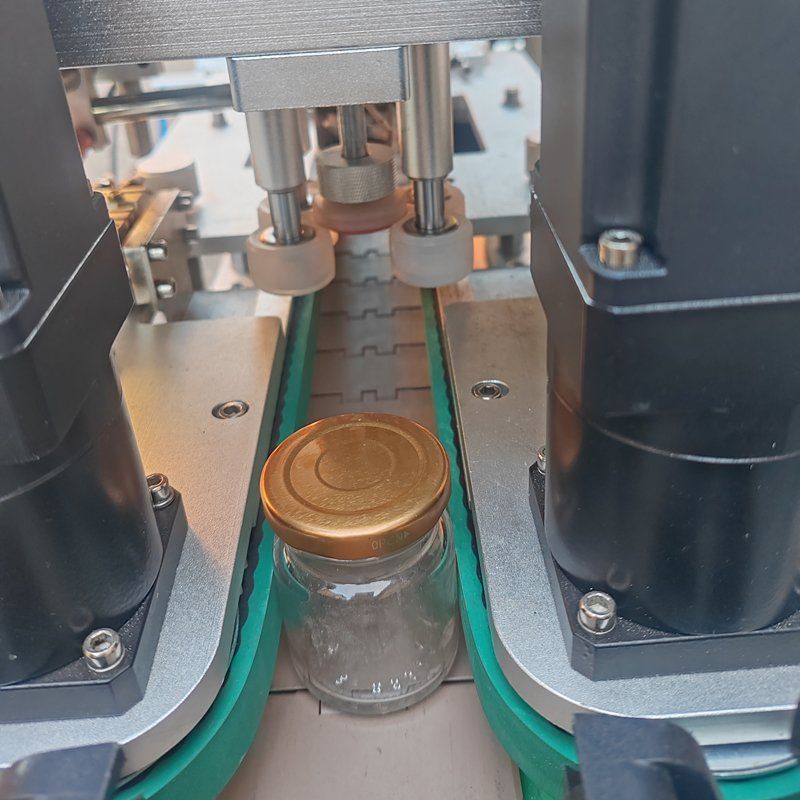

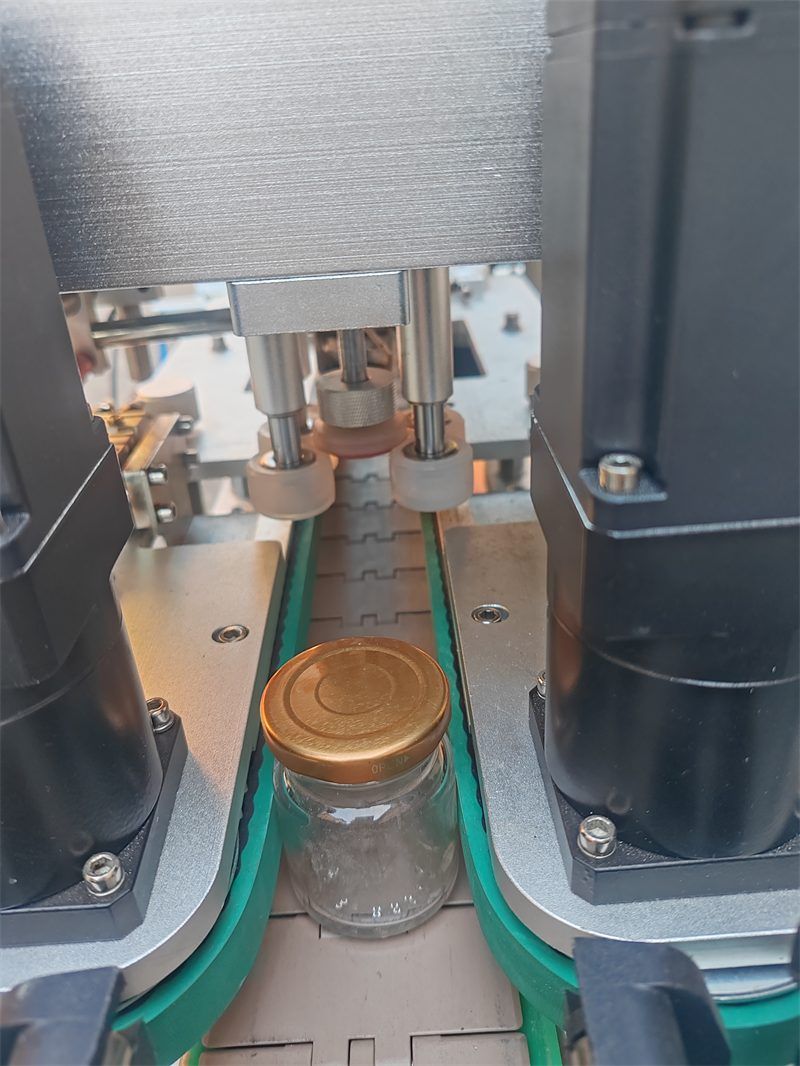

Servo four-wheel capping
Driven by a servo motor, it adopts four-wheel synchronous clamping for capping with precise and stable torque control. The capping process ensures no cap damage, no thread slipping, no bottle cracking, and excellent sealing consistency.

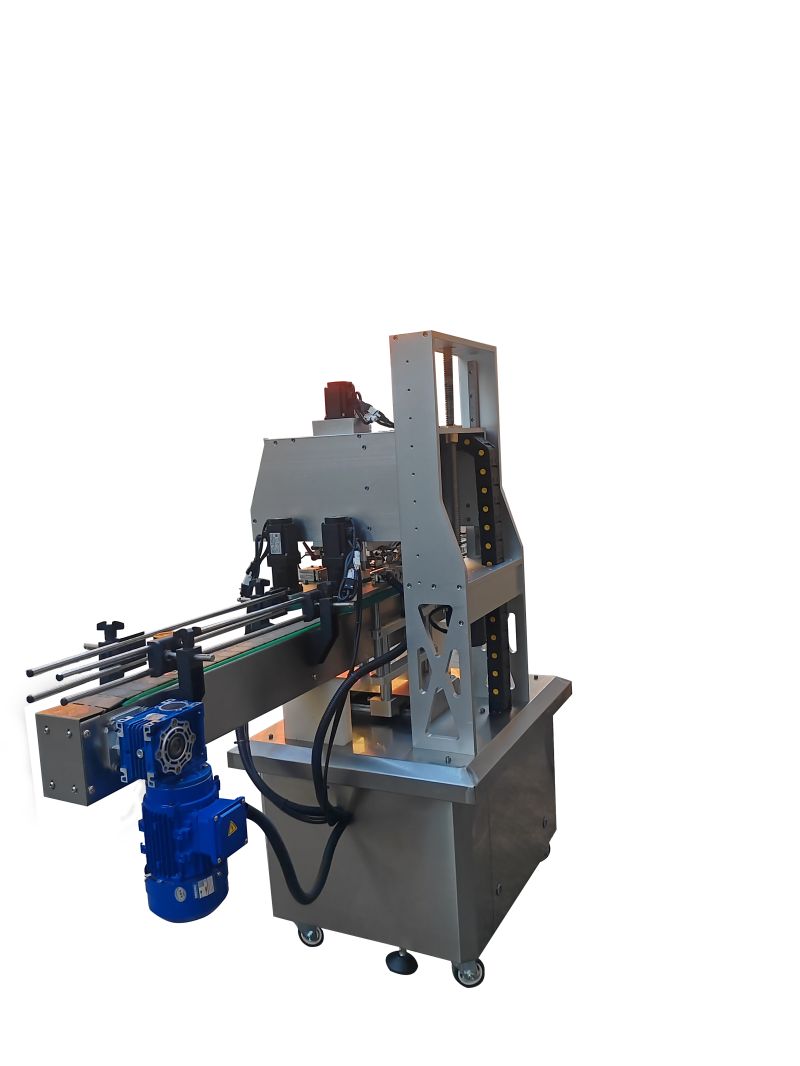

Worm gear reducer motor
It adopts a worm gear transmission structure with a wide speed ratio range, high output torque, stable operation and low noise. It features mechanical self-locking, which can effectively prevent reverse rotation or sliding of the mechanism.
APPLICATIONS
Where this model fits
Suitable products & containers
Tamper-evident capsPump capsFlip-top capsScrew capsDaily chemical bottles
Container change means nozzle, rail and gripper change. Send your bottle or pouch and we re-test on it before you order.
Selection note
Useful when caps are tall or heavy: the elevating hopper keeps the cap track short and the servo head controls torque precisely, which reduces cap damage and leakage.
CONTAINER REFERENCE
Packs this machine is tested with
Reference packs from the MachProof test library, showing the container families this model is set up for. Your own bottle, jar or pouch is run on the machine before the configuration is fixed.
