Filling, Bottom-Cap & Screw-Sealing Line
Compact & Tabletop · Filling error: ±0.5% · Filling heads: 2 (customizable)
MACHPROOF
MP-126
MP-126
Filling bottom cap screw sealing lineEquipment name
± 5 ‰Filling error
Double headed (customizable)Number of filling heads
Compact & Tabletop
Filling, Bottom-Cap & Screw-Sealing Line

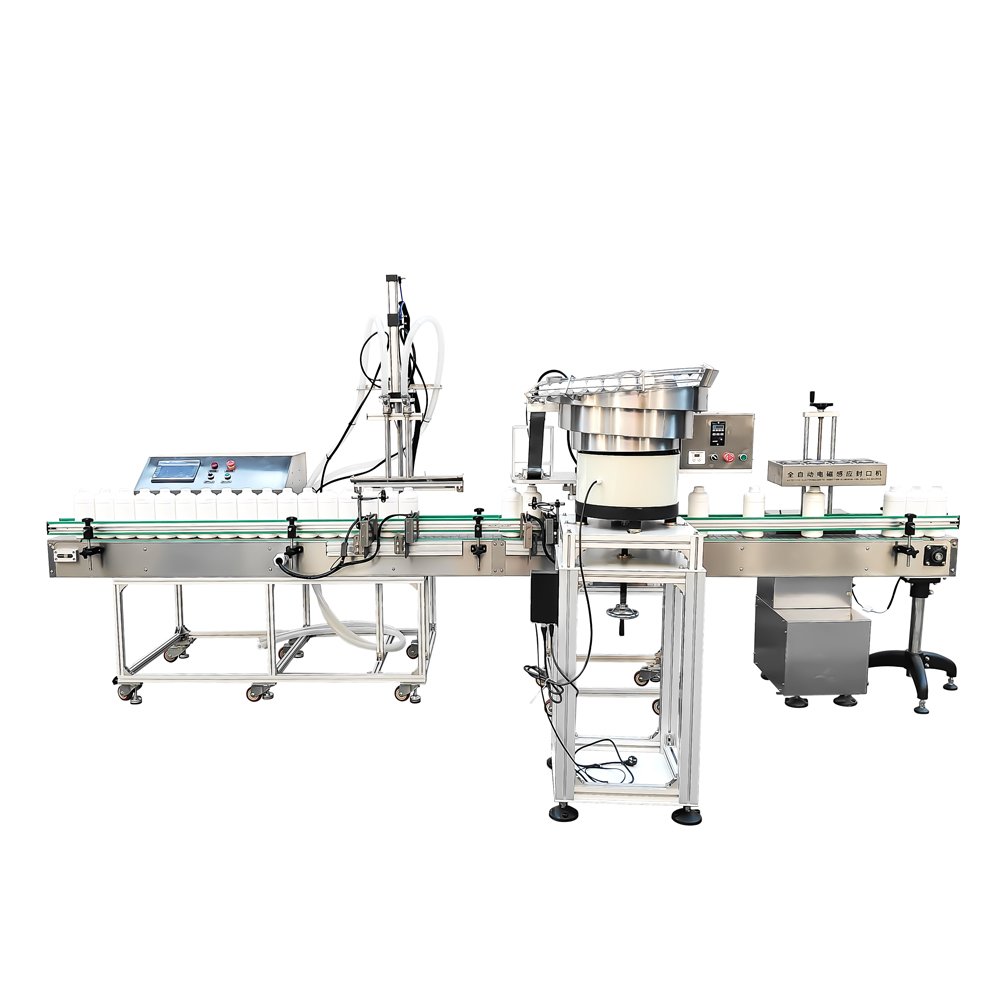

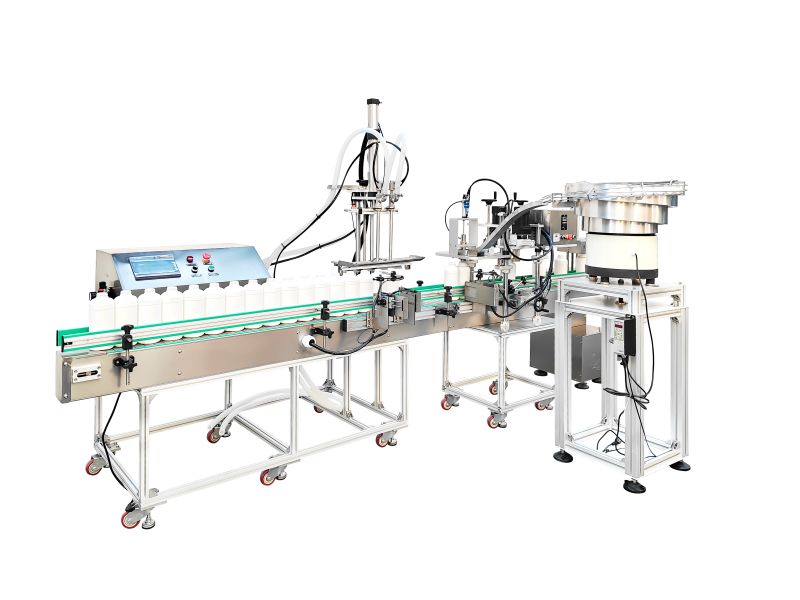

MP-126A compact line that fills, places a bottom cap and screw-seals the bottle. The bottom-cap station lets a bottle be closed from below, which is used for certain cosmetic and chemical packs.
- Equipment nameFilling bottom cap screw sealing line
- Filling error± 5 ‰
- Number of filling headsDouble headed (customizable)
- Equipment power supply220V/50HZ
Final configuration is confirmed after a filling test with your material and container. Send the bottle, the cap and the product — we reply with a tested match and a quotation.
SPECIFICATION
Full technical data
Figures below are the catalogue values for this model. Anything marked “configured” or “customizable” is set from your sample during the test, and the final figures are written into the quotation.
| Equipment name | Filling bottom cap screw sealing line |
|---|---|
| Filling error | ± 5 ‰ |
| Number of filling heads | Double headed (customizable) |
| Equipment power supply | 220V/50HZ |
| Applicable materials | customizable according to samples |
| Equipment speed | customized according to production capacity matching |
| Applicable gas source | 0.4-0.6MPA |
| Equipment material | combination of stainless steel and aluminum |
MACHINE DETAILS
Built detail by detail
Construction notes published for this model by the factory — control panel, filling and capping stations, guarding and finish. Send your container and we confirm the same build on a test run.

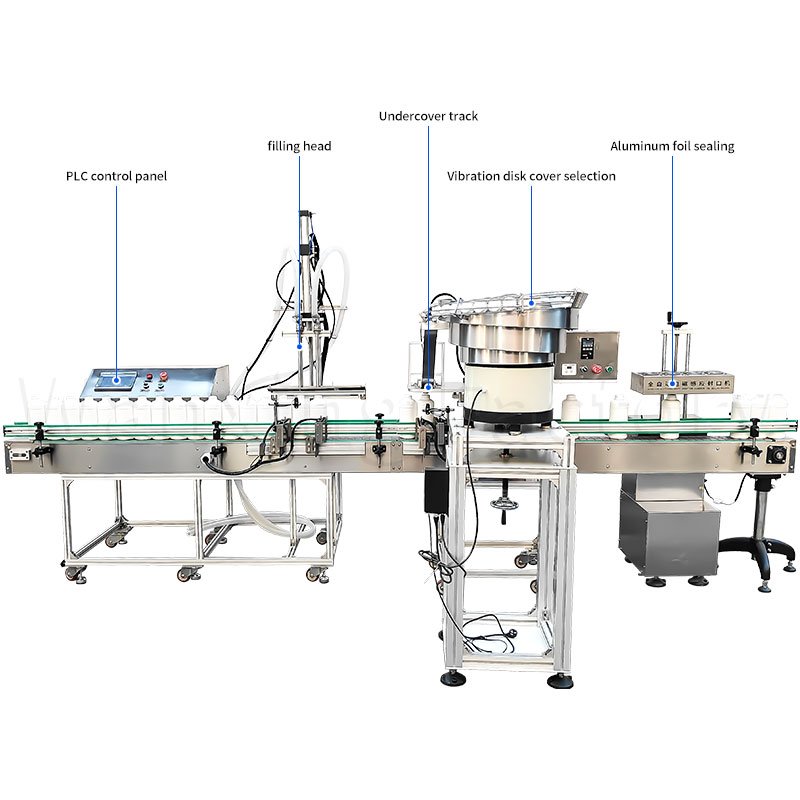

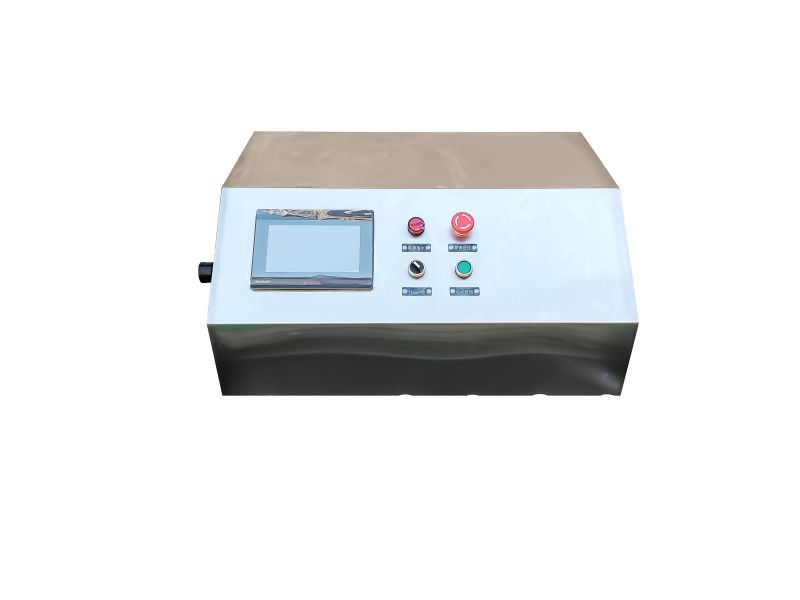

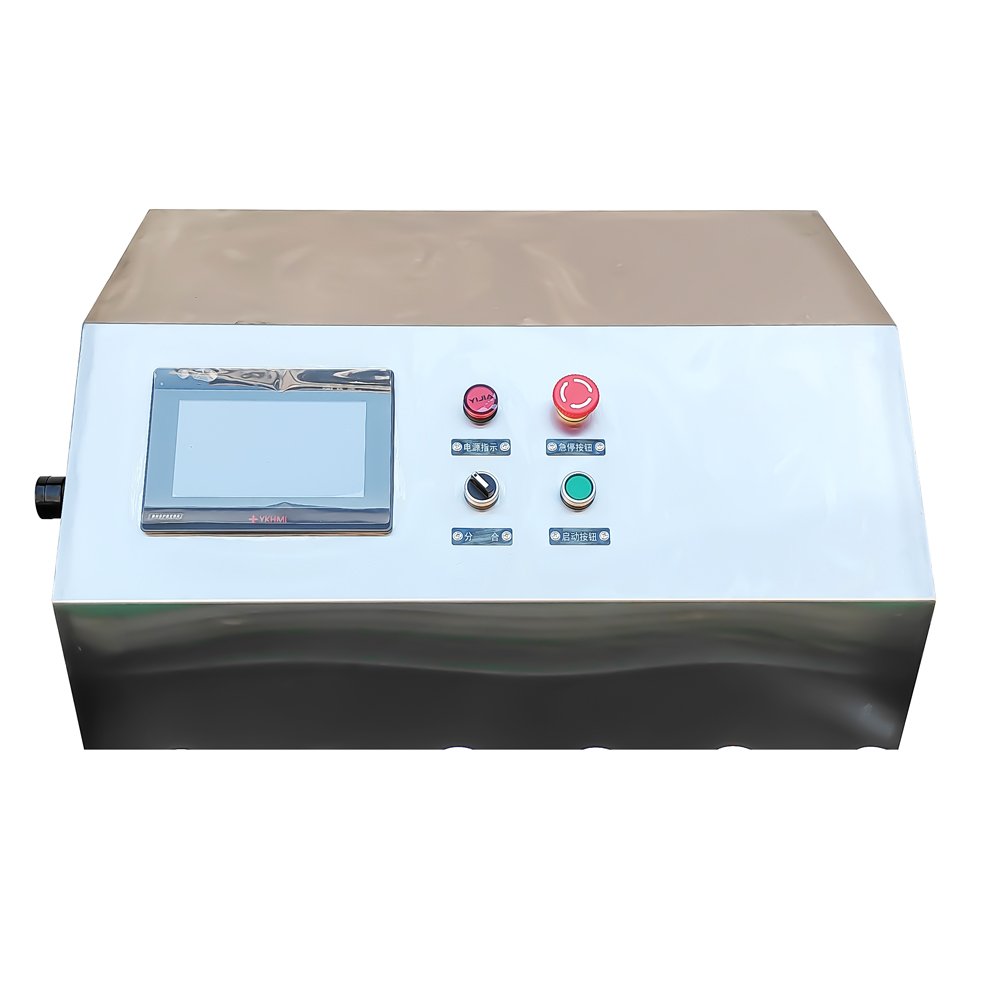

PLC intelligent control panel
Touch screen one click operation, intuitive and adjustable parameters, integrated start stop, speed regulation, and counting, easy to understand operation, and more stable automation control of the whole machine

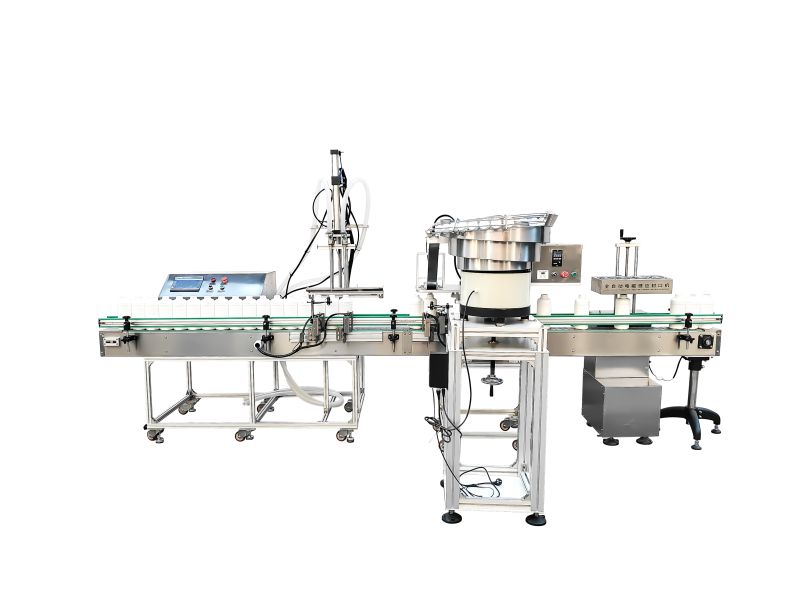

Lift servo filling head
The servo motor precisely controls the lifting height, adapts to different bottle types, automatically adjusts the filling depth accurately, without dripping or splashing, and runs smoothly and quietly

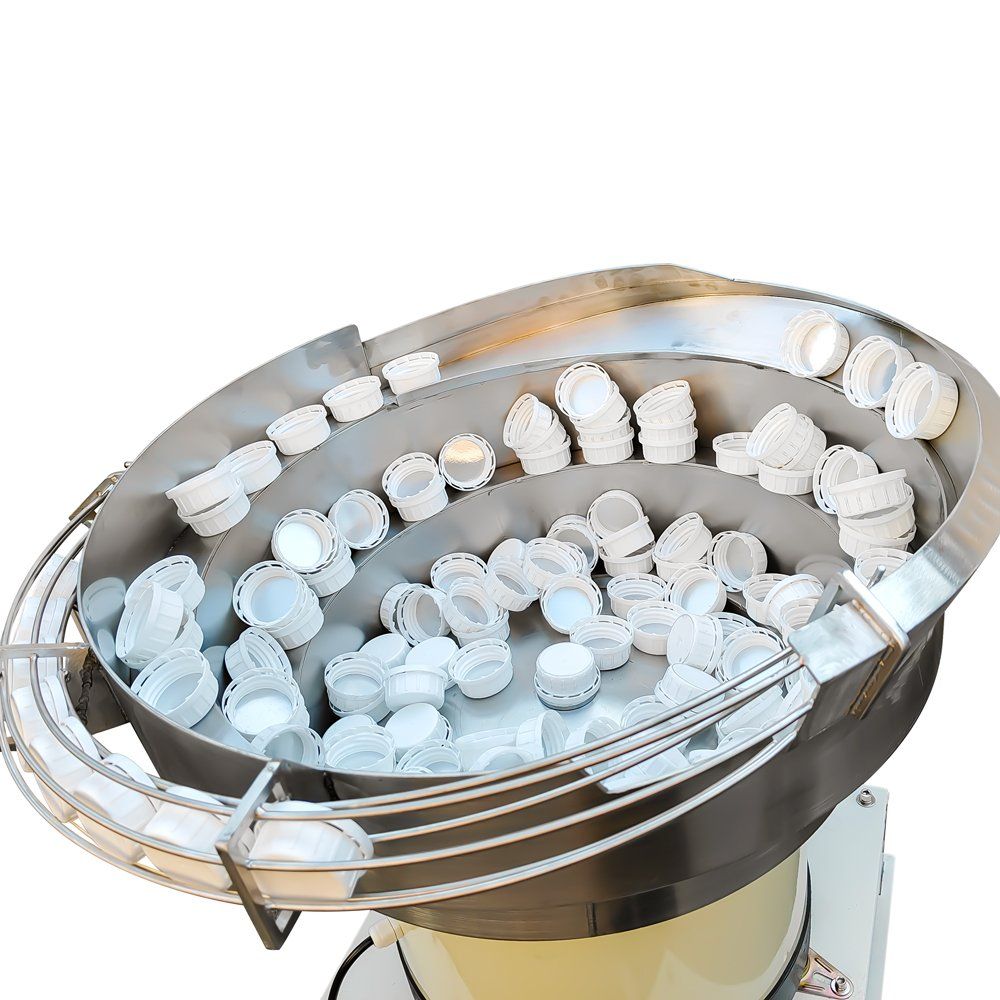

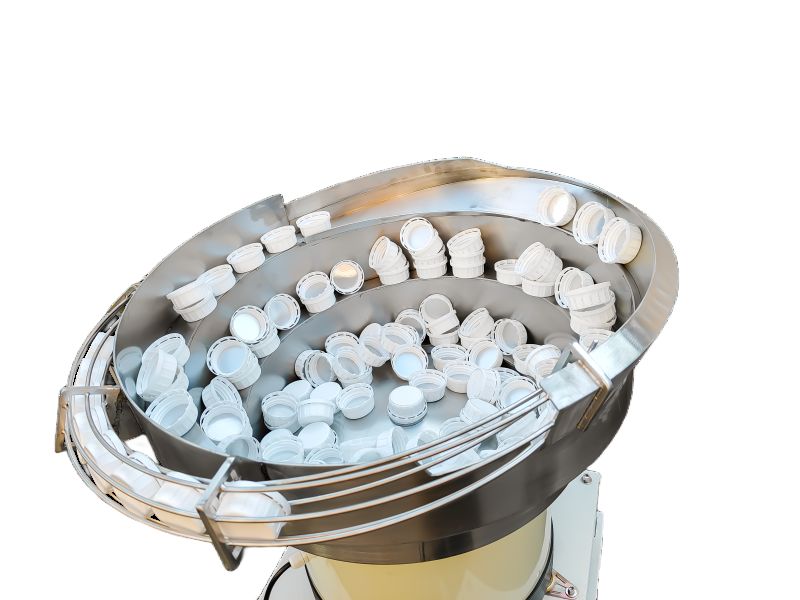

Vibration disk cover selection
High frequency stable vibration feeding, automatic sorting and capping, smooth feeding without jamming, suitable for orderly feeding of various bottle caps, efficient and worry free

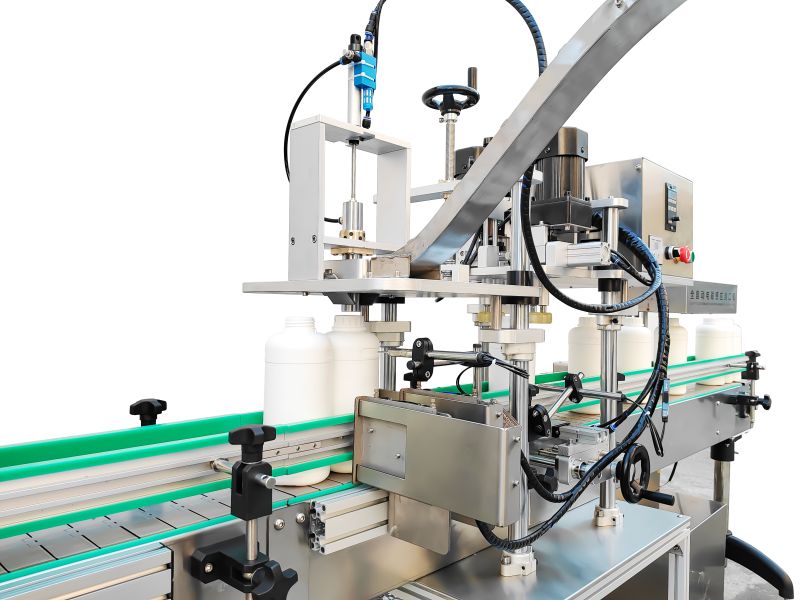

Rail type automatic lower cover
The straight track slides down in an orderly manner, ensuring smooth lid dropping without any jamming. The bottle cap is transported in a stable direction and efficiently connected with the screw cap

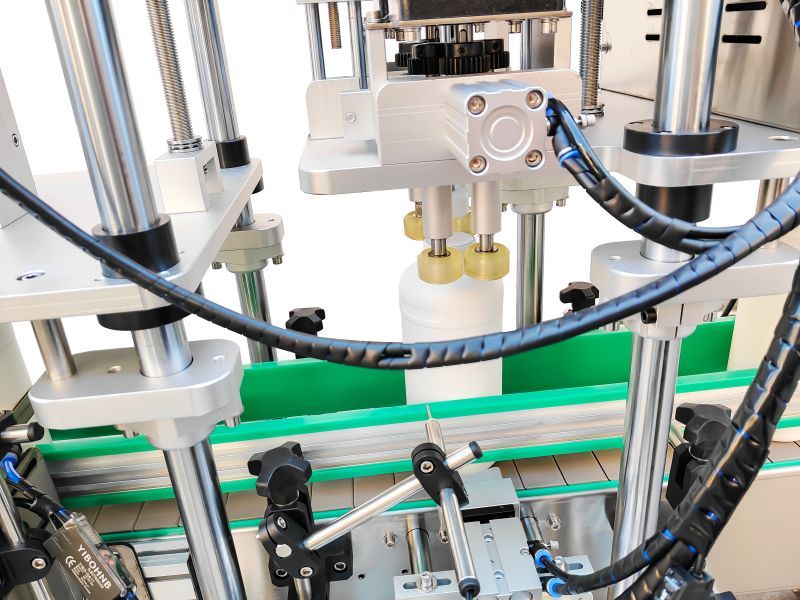

Automatic capping machine
Continuous and efficient capping, stable torque without damaging the cap, strong adaptability to bottle shapes, suitable for various bottle caps, firm and beautiful sealing
APPLICATIONS
Where this model fits
Suitable products & containers
Bottom cap2-head fillingScrew sealingCosmetic packsCompact line
Container change means nozzle, rail and gripper change. Send your bottle or pouch and we re-test on it before you order.
Selection note
Selected when the container has a bottom plug or a base cap. Filling error is ±0.5% on this model, tighter than the standard ±1%.
CONTAINER REFERENCE
Packs this machine is tested with
Reference packs from the MachProof test library, showing the container families this model is set up for. Your own bottle, jar or pouch is run on the machine before the configuration is fixed.
NEXT STEP
Send us your bottle and your product.
We run a test on this machine type with your container and material, then send the video, the weighing record and a quotation with the exact configuration.
