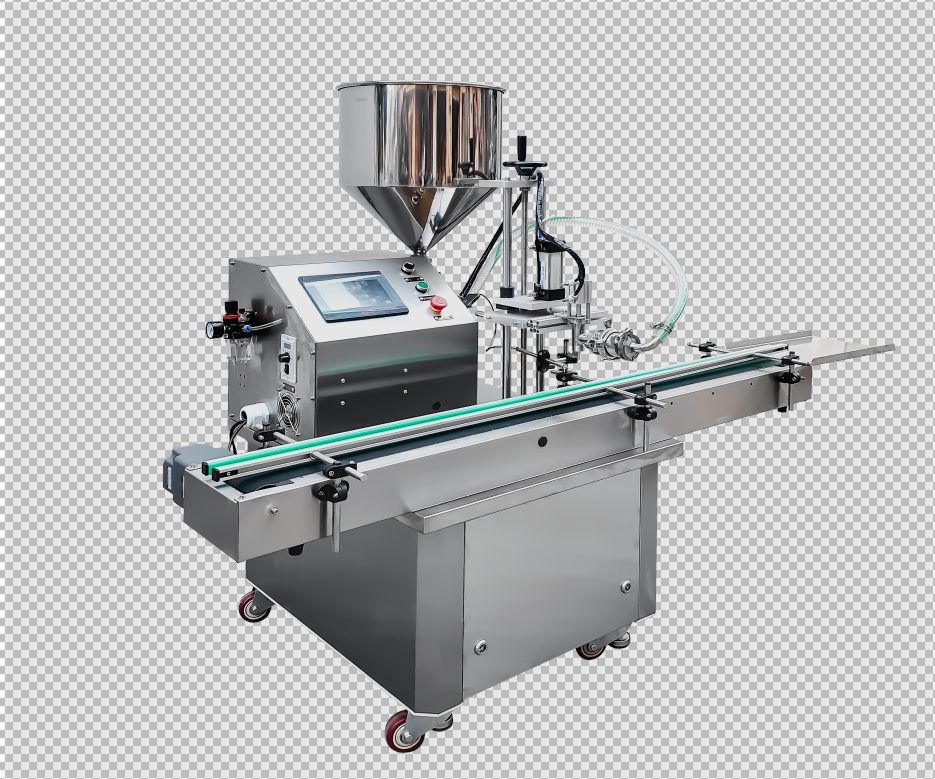

Device details
Support sample-based customization. Please contact customer service
Single-Head Magnetic Pump Filler
Filling Machine · Filling error: ±1% · Filling heads: 1 (customizable)
MACHPROOF
MP-100
MP-100
Vertical Single-Head Magnetic Pump Cream & Liquid Filling MachineEquipment name
±1%Filling error
1 (customizable)Number of filling heads
Filling Machines
Single-Head Magnetic Pump Filler

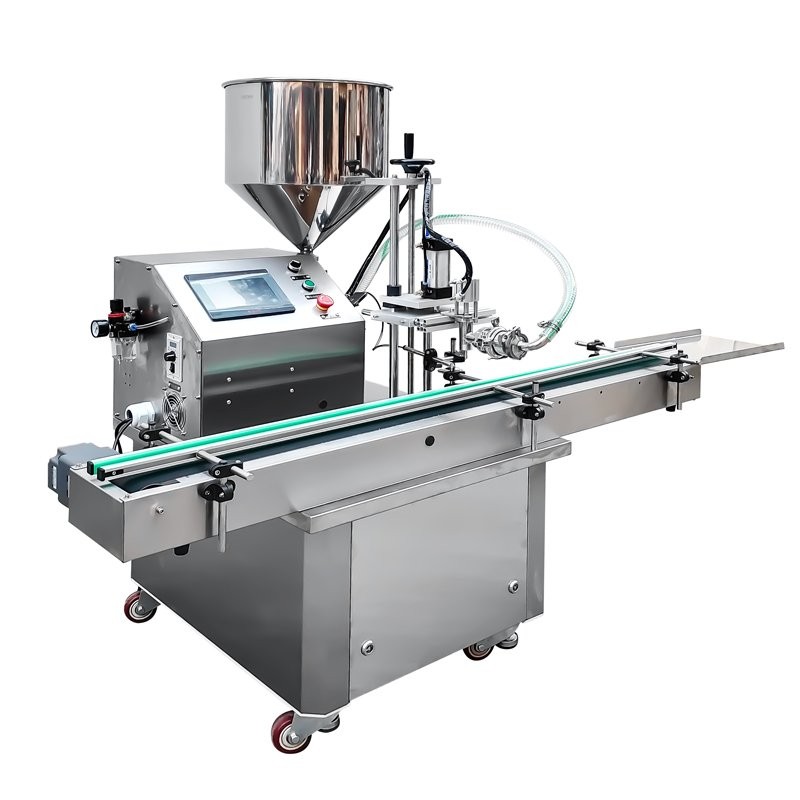

MP-100A vertical single-head magnetic pump filler built for medium-viscosity liquids. The magnetic drive removes the shaft seal, so thin lotions, edible oil and detergents run without leakage, and the submerged lifting nozzle fills splash-free, string-free and drip-free.
- Equipment nameVertical Single-Head Magnetic Pump Cream & Liquid Filling Machine
- Filling error±1%
- Number of filling heads1 (customizable)
- Filling speedcustomized according to production capacity
Final configuration is confirmed after a filling test with your material and container. Send the bottle, the cap and the product — we reply with a tested match and a quotation.
SPECIFICATION
Full technical data
Figures below are the catalogue values for this model. Anything marked “configured” or “customizable” is set from your sample during the test, and the final figures are written into the quotation.
| Equipment name | Vertical Single-Head Magnetic Pump Cream & Liquid Filling Machine |
|---|---|
| Filling error | ±1% |
| Number of filling heads | 1 (customizable) |
| Filling speed | customized according to production capacity |
| Applicable air source | 0.4-0.6MPA |
| Power Supply | Single-phase AC220V 50Hz customizable |
| Equipment material | combination of stainless steel and aluminum |
| Applicable material | Suitable for filling particle-free, impurity-free, medium-viscosity and slightly corrosive liquids, such as body lotion, olive oil, peanut oil, cleaning agents, laundry detergent, body wash, shampoo, beverages, perfumes, essences, glass water, etc.. |

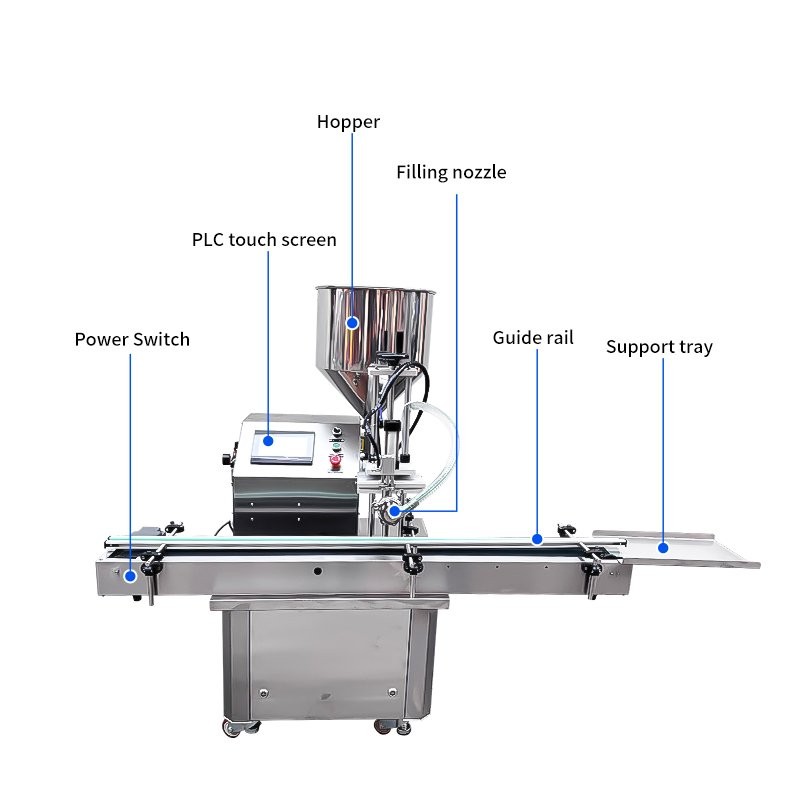

MACHINE DETAILS
Built detail by detail
Construction notes published for this model by the factory — control panel, filling and capping stations, guarding and finish. Send your container and we confirm the same build on a test run.

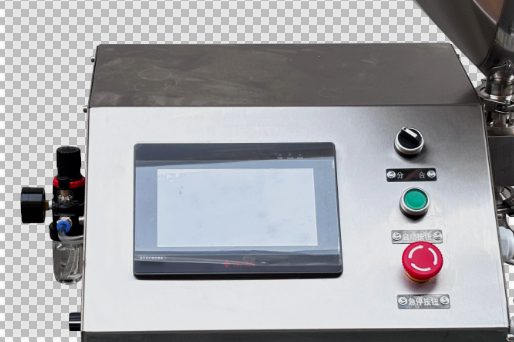

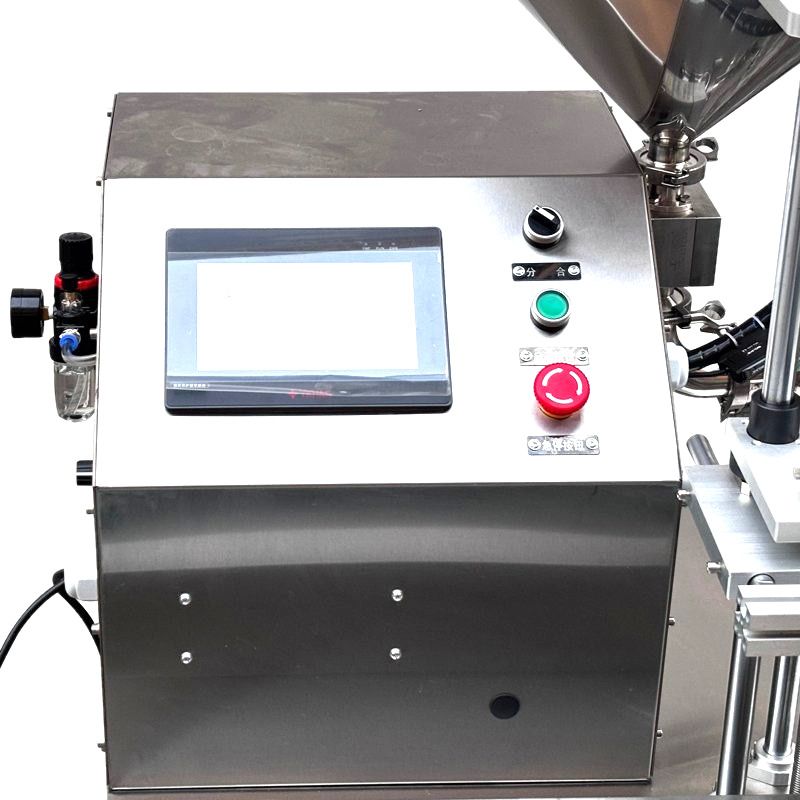

PLC touch panel
Stainless steel casing, integrated touch screen and control buttons, compatible with filling lines and other equipment, safe and durable, easy to operate.

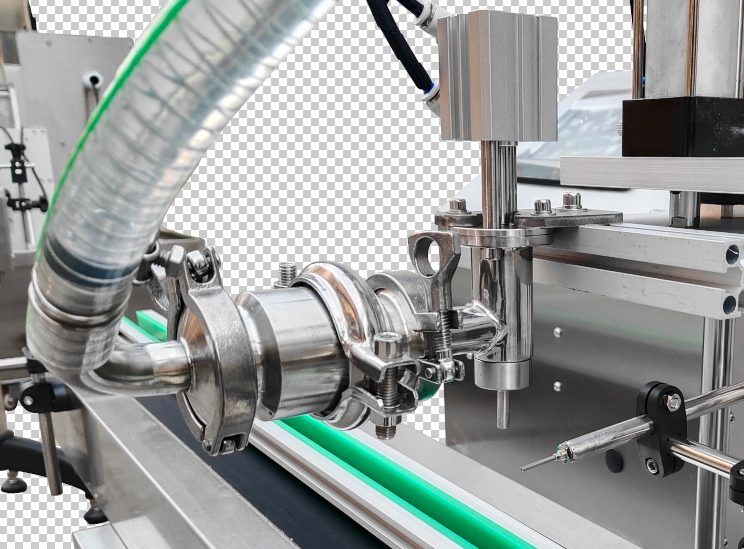

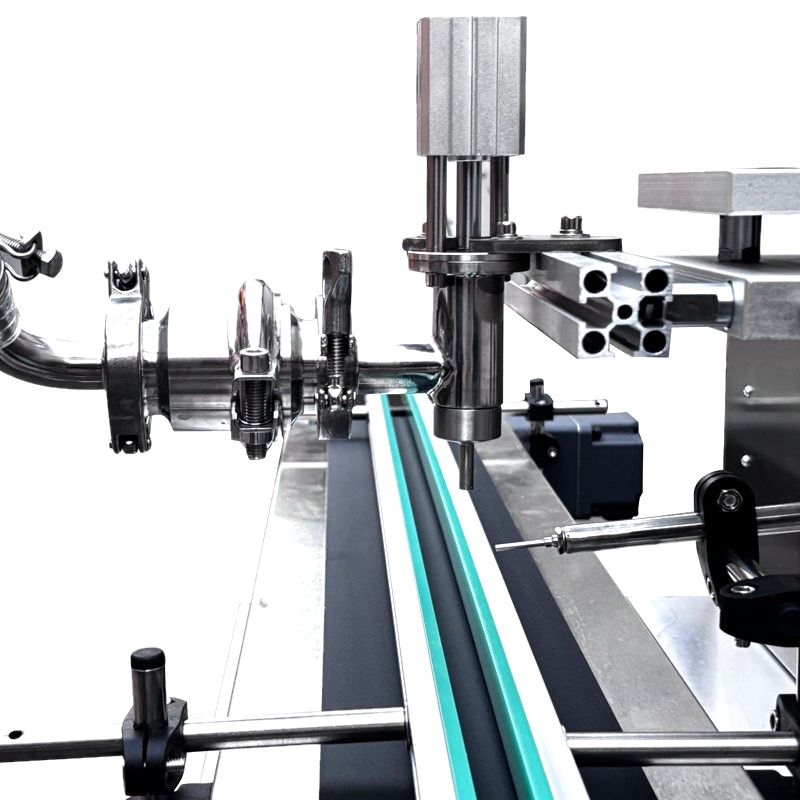

Filling head
The machine is fitted with a liftable filling head assembly. Precise submerged lifting filling delivers splash-proof, string-proof and drip-proof performance, guaranteeing a stable, hygienic filling process.

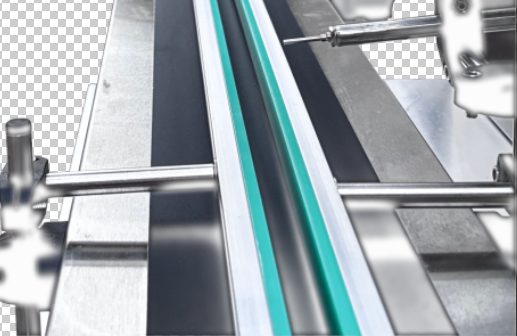

Belt conveyor
High flexibility and adjustability; flat and smooth conveying surface with stable operation; easy installation, low maintenance cost and long service life.

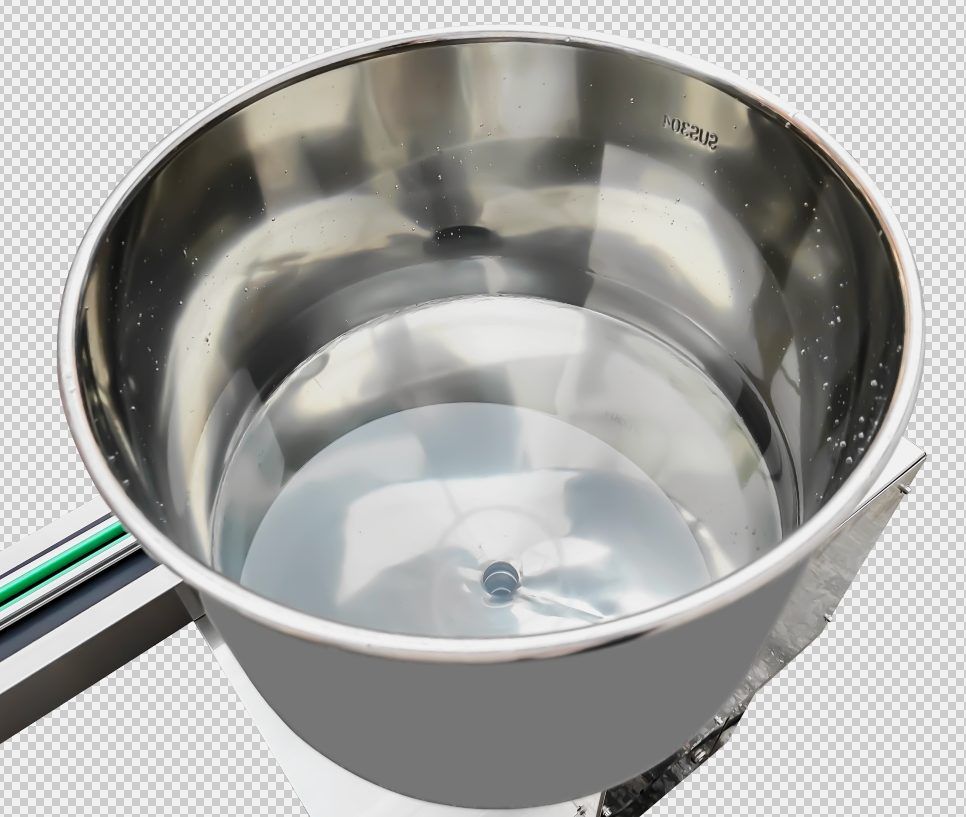

Hopper
The main body is integrally formed with 304 stainless steel (SUS304), and the inner wall is mirror-polished, featuring high surface finish, no hygiene dead ends, and meeting the hygienic production requirements of food, pharmaceutical and other industries.Optional configurations include a heating/insulation layer, stirring device, and sealing cap.
APPLICATIONS
Where this model fits
Suitable products & containers
Lotions & creamsEdible oilDetergentsCar care fluidsBeverages
Container change means nozzle, rail and gripper change. Send your bottle or pouch and we re-test on it before you order.
Selection note
Best fit when you fill several products on one line and change the bottle often: the nozzle height and the filling time are both set from the touch panel, so a bottle change does not need a parts change.
CONTAINER REFERENCE
Packs this machine is tested with
Reference packs from the MachProof test library, showing the container families this model is set up for. Your own bottle, jar or pouch is run on the machine before the configuration is fixed.
RELATED PRODUCTS
More machines in this range
NEXT STEP
Send us your bottle and your product.
We run a test on this machine type with your container and material, then send the video, the weighing record and a quotation with the exact configuration.
